The LR95
TECHNICAL SPECIFICATIONS
| Standard Chassis: | Cat® 330 Next Gen | |
| Installed Power: | 273 hp | 204 kW |
| Maximum Torque: | 105,530 ft.lbs | 14,630 kg.m |
| Maximum Diameter: | 11 ft | 3,350 mm |
| Std. Drilling Depth: | 55 ft | 16,700 mm |
| Crowd Force: | 27,000 lbf | 12,300 kgf |
| Crowd Cylinder Stroke: | 6 ft 3 in | 1,920 mm |
| Main Winch Line Pull | 27,120 lbf | 12,330 kgf |
| Minimum Transport Weight | 75,700 lb | 34,336 kg |
| Operation Weight | 97,000 lb | 44,000 kg |
Learn More
About the LR95

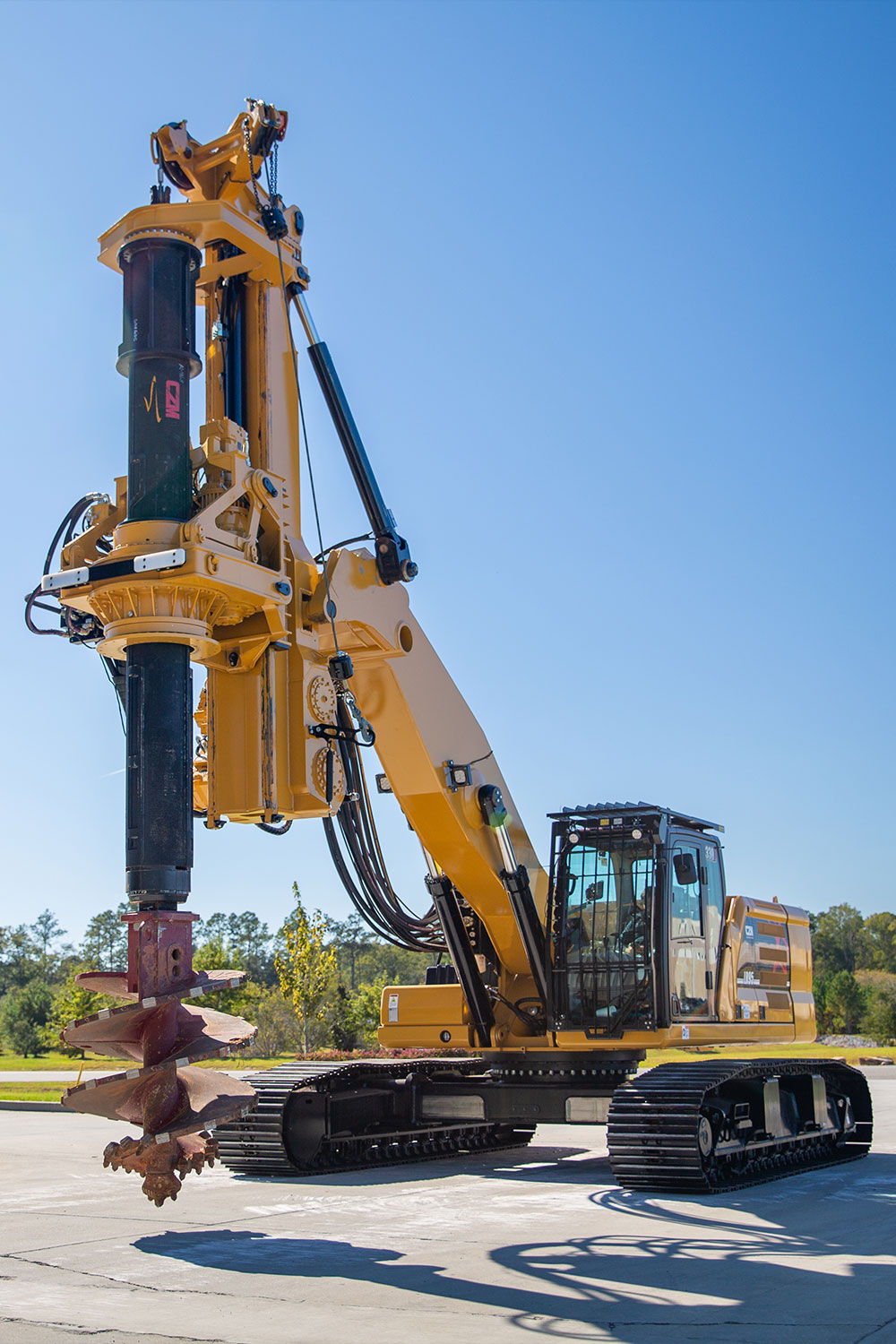

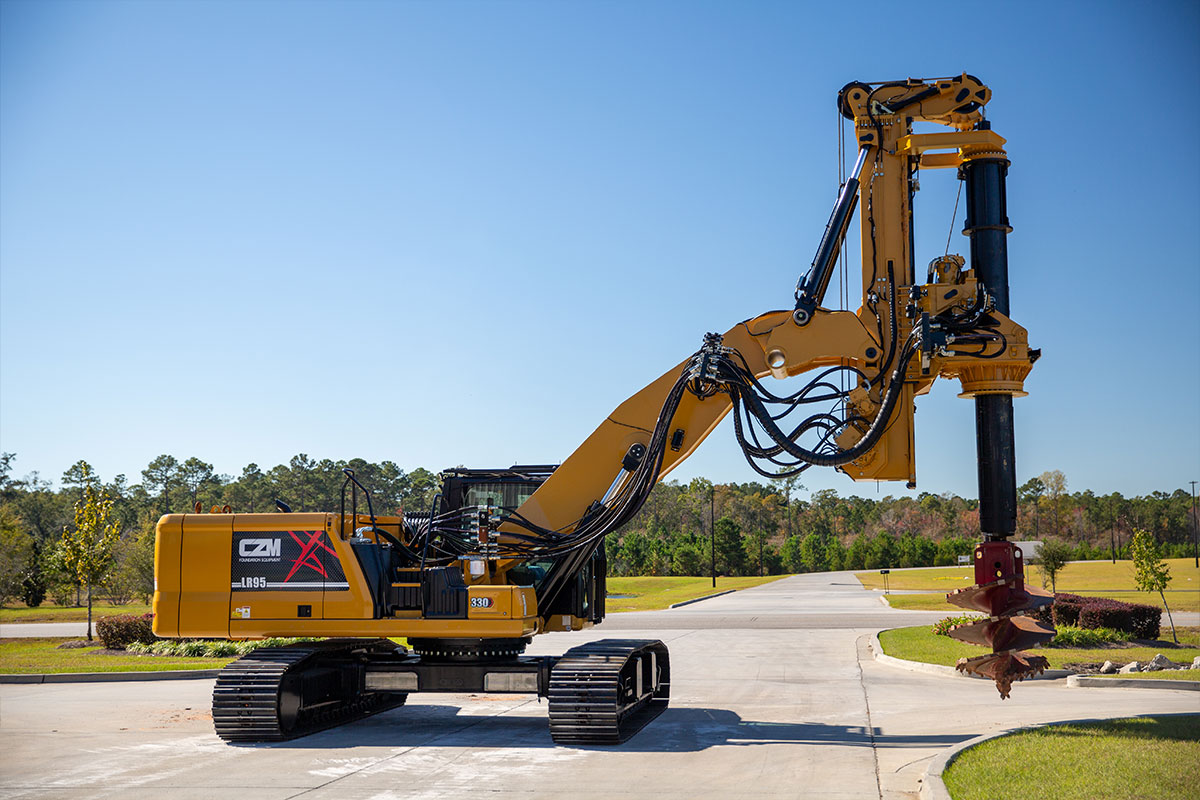

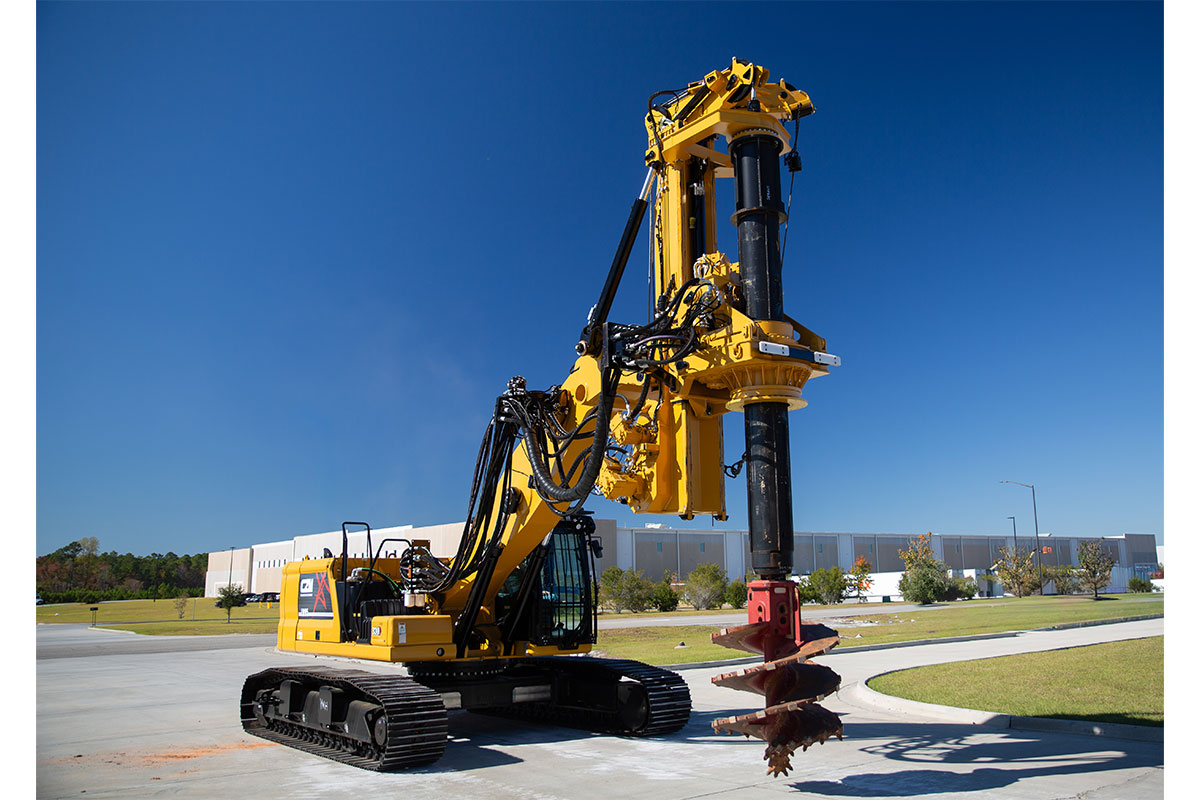

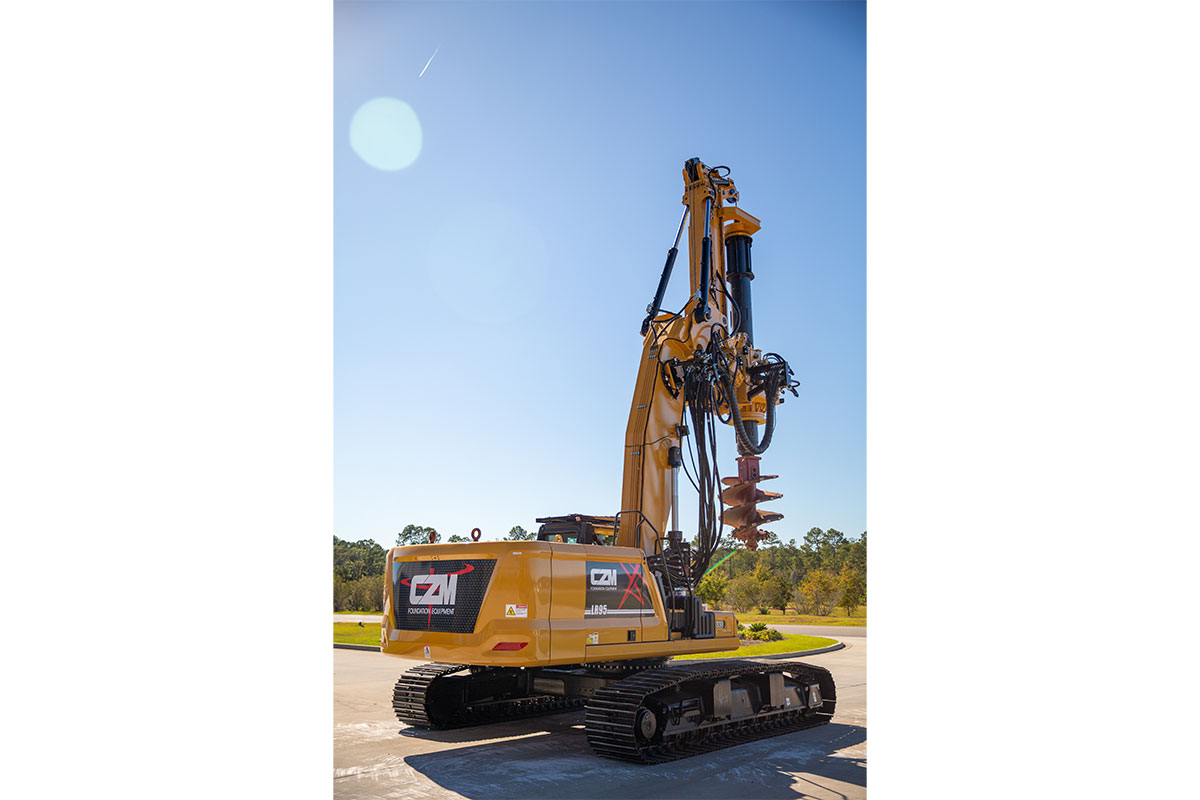

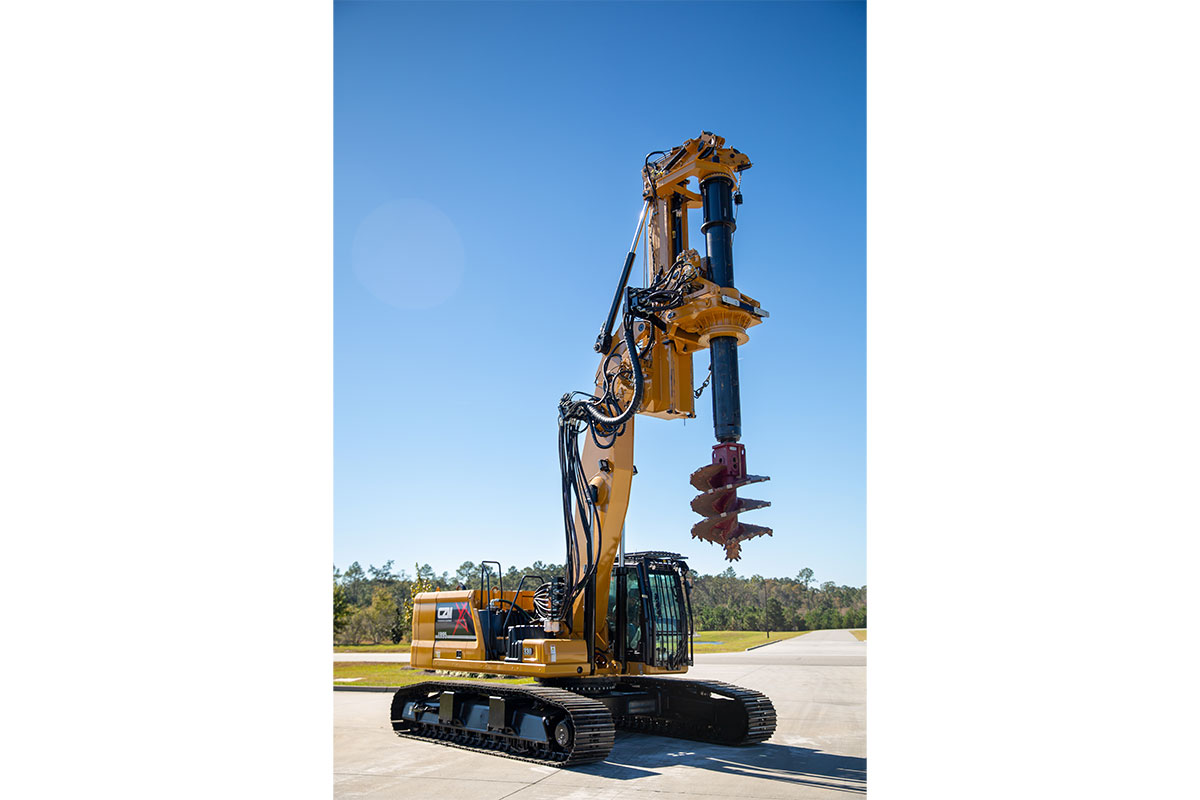

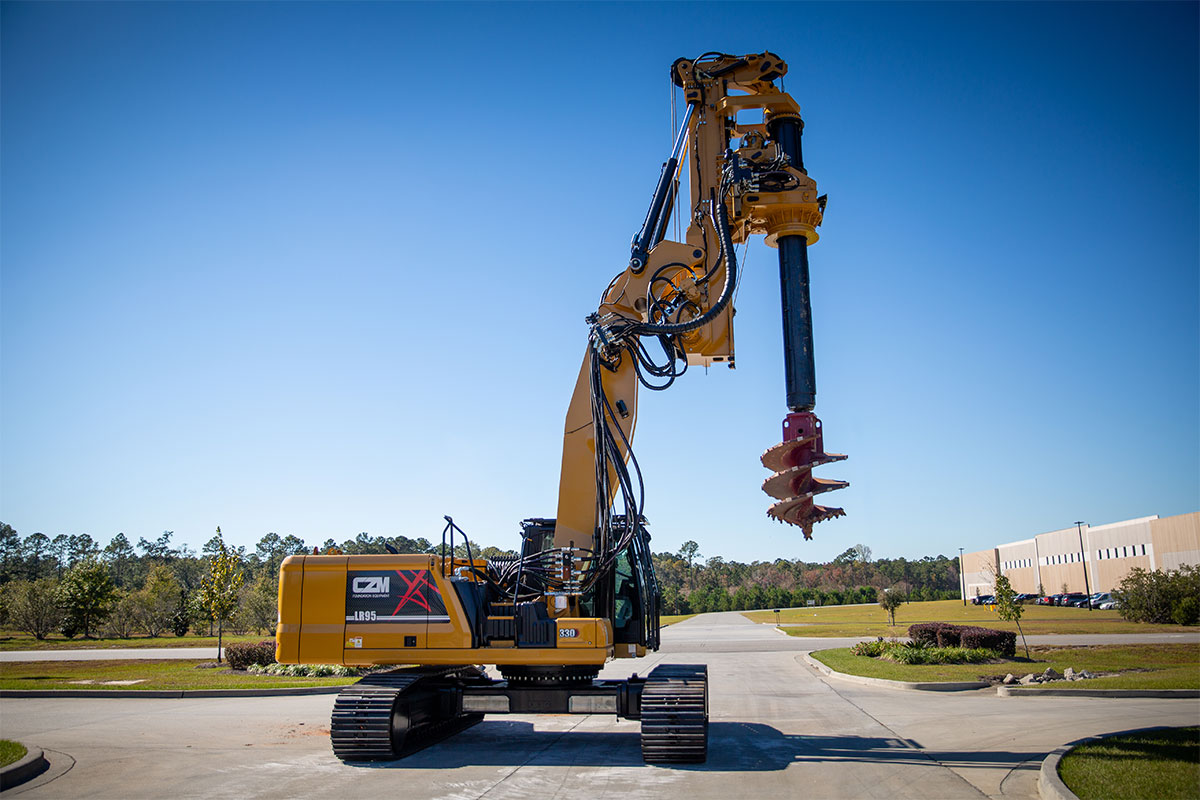

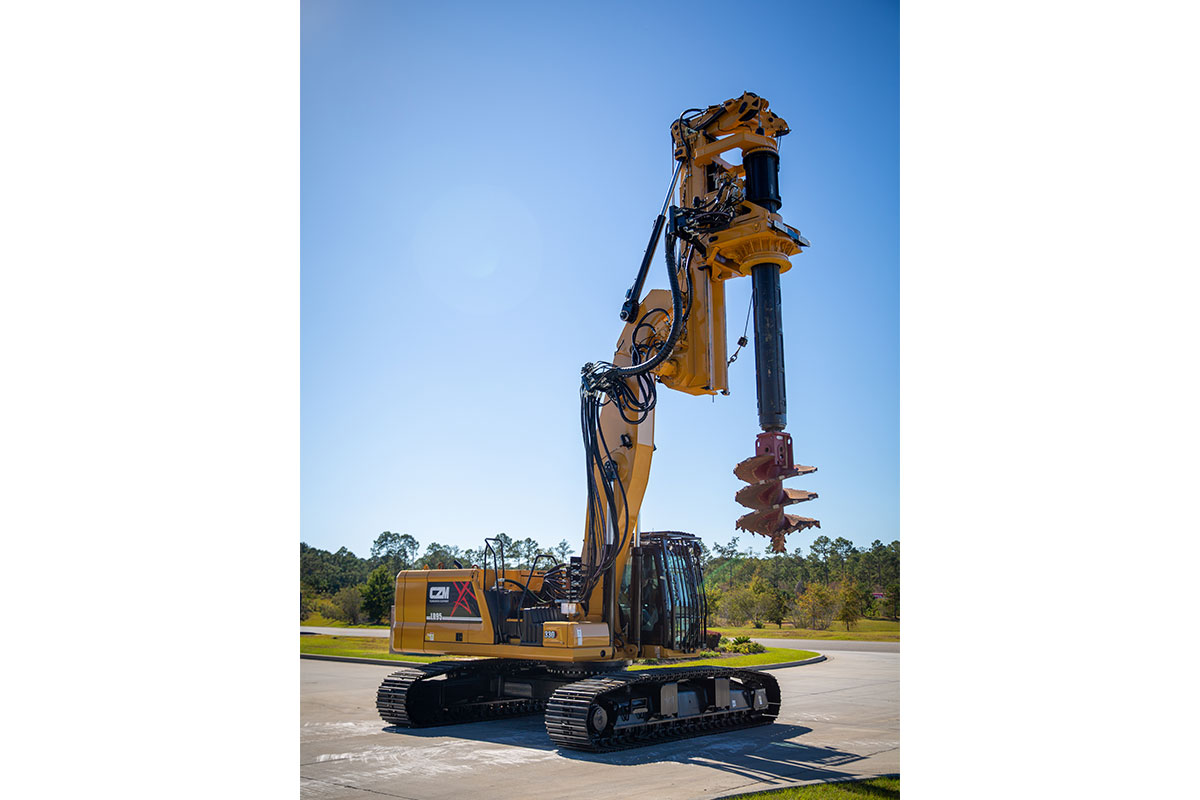

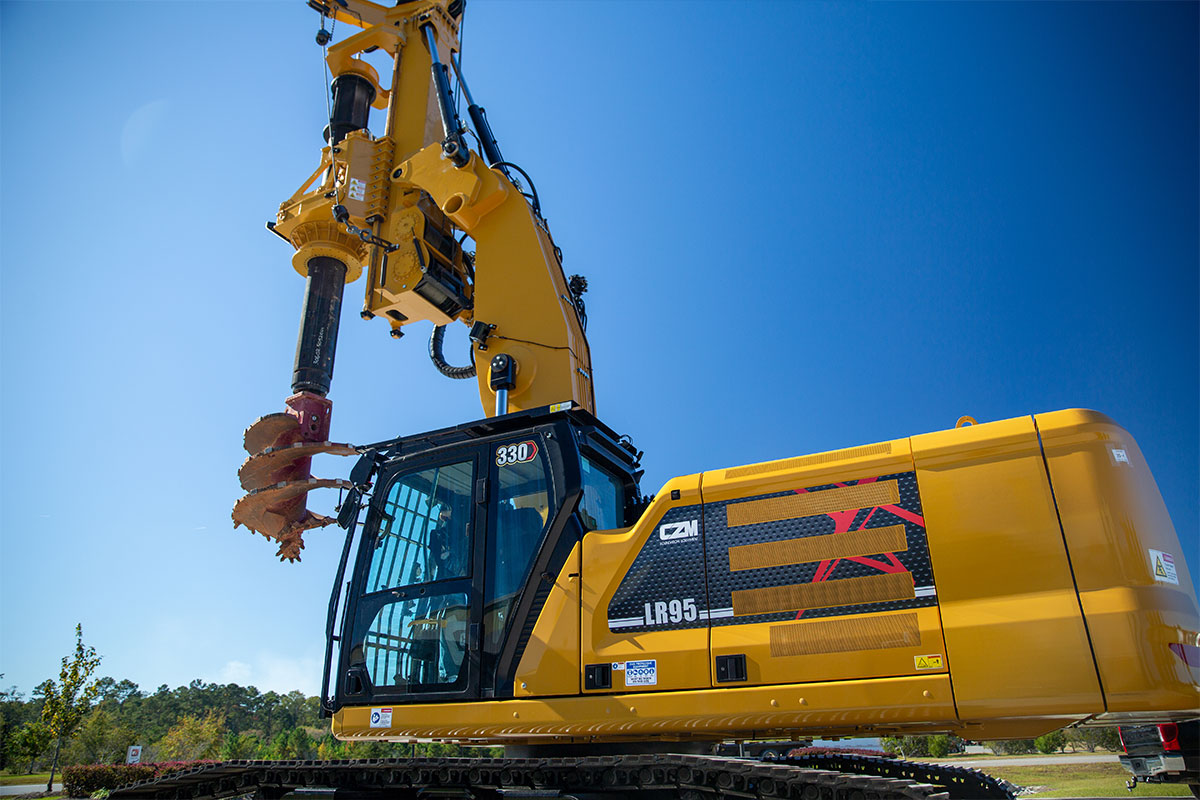

The LR95 is the medium size model of CZM’s Long Reach series, which is mounted on a Cat® 330 Next Gen with variable undercarriage. It has a special designed boom with 2 lift cylinders which allows for a higher torque and crowd force to be applied to the tool, which aligned with interlocking Kelly bars makes it efficient on rock and hard soil drilling. Round Friction bars are also available for high production on softer soils. The long reach configuration makes it ideal to applications such as sound bearing walls, transmission lines and utilities, drilling on a steep slopes, and difficult to reach holes.
Base:
- The new Cat® 330 Next Gen is a purpose-built machine powered by a fuel-efficient U.S. EPA Tier 4 Final C7.1 ACERT engine.
- Equipped with Cat® Vision Link that allows management to monitor machine operations and maintenance data online and wireless, providing information such as location, hours, fuel usage, idle time, event codes and maintenance schedule.
Undercarriage:
- Caterpillar® variable undercarriage VH4400/4230/700. Reinforced frame H style variable undercarriage.
Mast:
- Reinforced mast, with high resistance steel Weldox 700.
Main Winch:
- Special groove for better cable winding and longer cable life.
- Press-roller included.
- 2 gears allows for both high speed and high pulling force.
- Automatic gear shifting, for seamless operation, high production.
- Automatic down the hole winch stop. When Kelly bar reaches the bottom of the hole, winch automatically stops.
- Freewheeling winch during crowd operation.
- Hydraulic and mechanical brake.
- Hydraulic measurement of pulling force displayed in the cabin for operator.

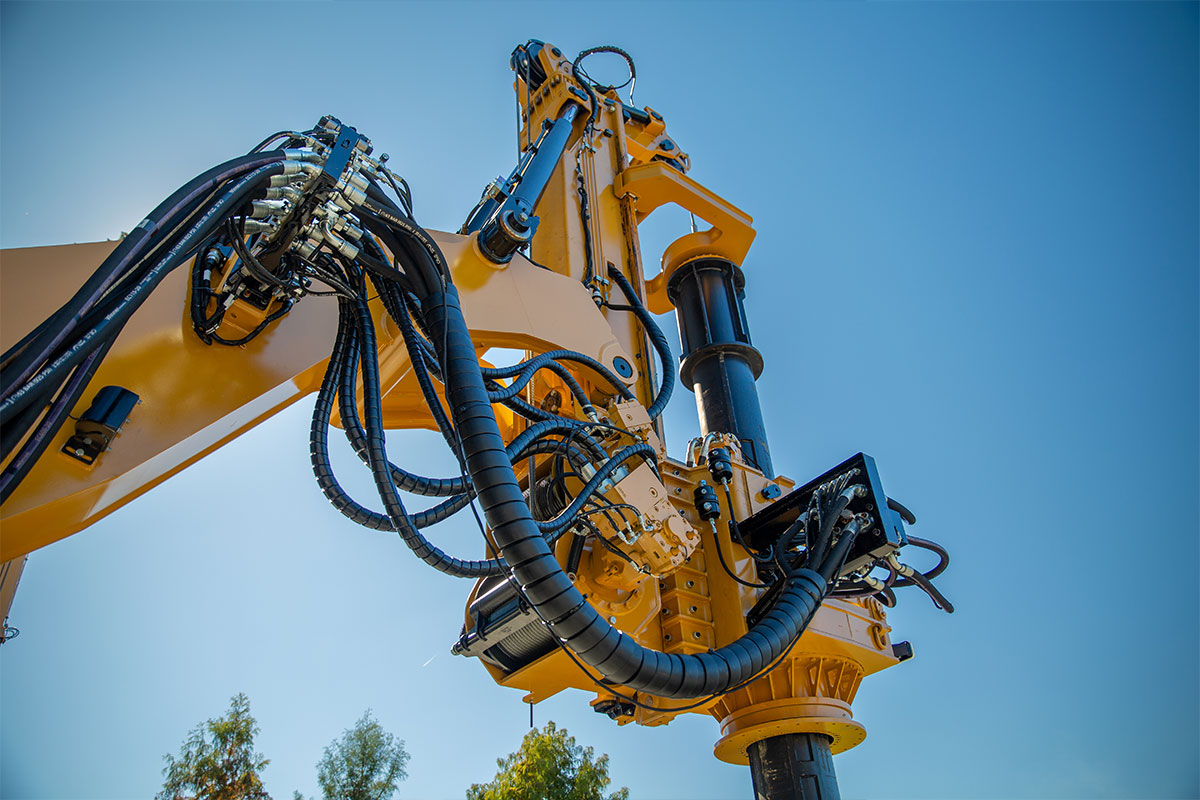

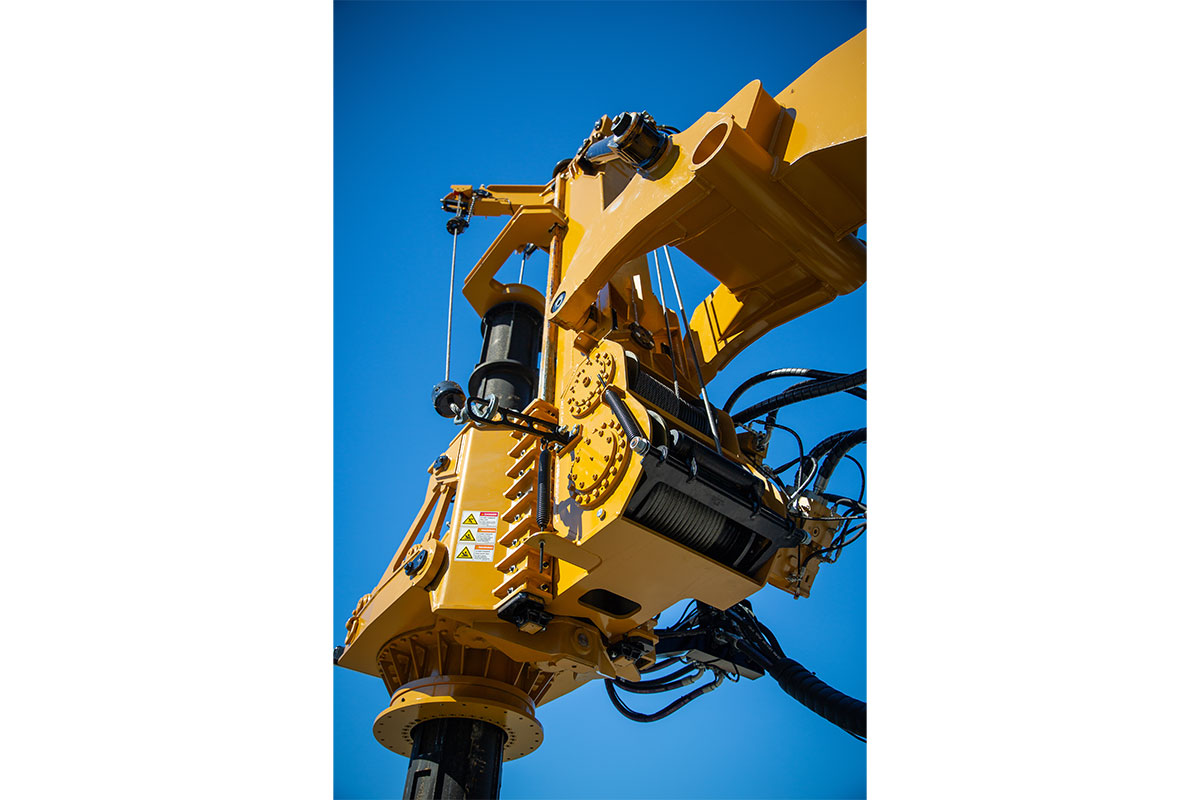

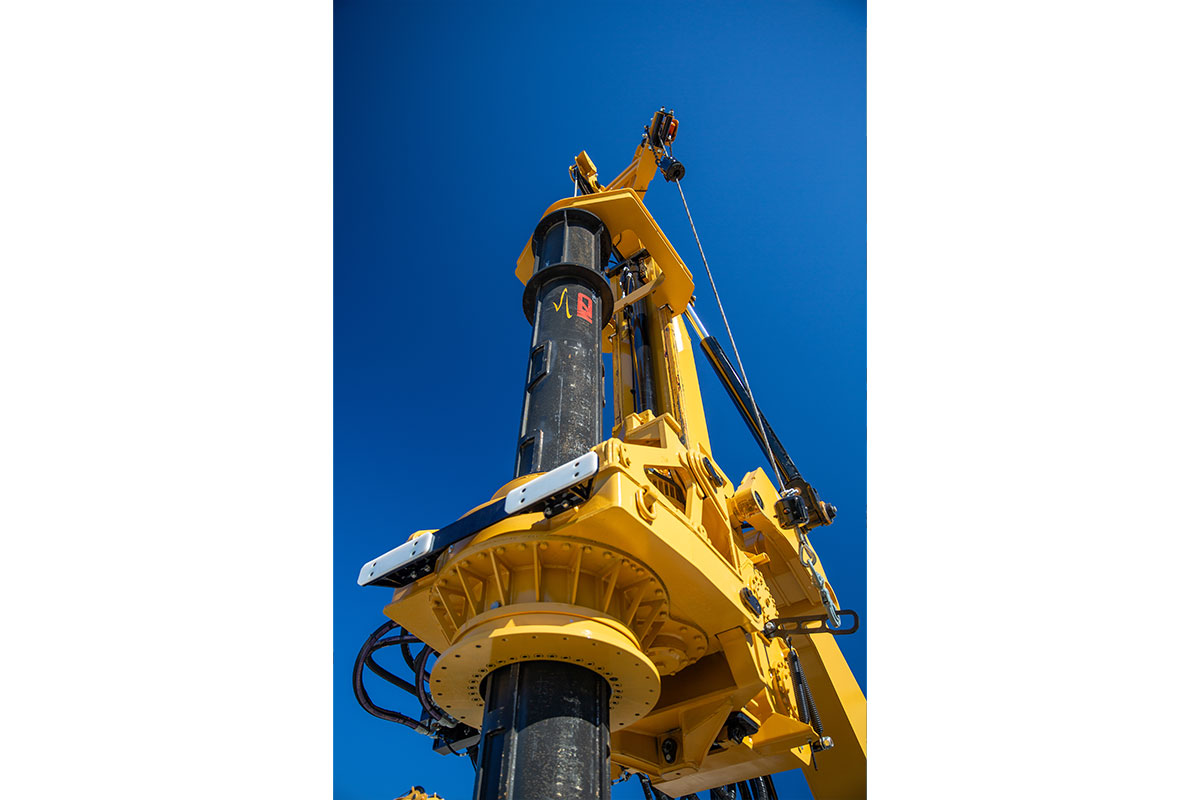

Rotary:
- Robust design, with 2 slewing bearings on top and bottom, robust pinion and main gear.
- Anti-cavitation and anti-shock system for longer hydraulic motor life.
- 1 group of Hydraulic Motor / Planetary Gear for high torque, high speeds and long life.
- Cooling system for hydraulic motors and gearboxes.
- Power-shift for High spin-off speed (120rpm) for quick discharge of soil.
- 3 operation speeds and 3 spinoff speeds. For high torque and high speeds.
- Automatic gear shifting, for seamless operation, high production.
- Exchangeable keys, bolted. No need to rebuild keys by welding inside the rotary.
- Hydraulic measurement of torque displayed in the cabin for the operator.
Cab:
- AM/FM Radio, Air conditioning/Heating.
- ROPS cab & Top protection.
- LCD monitor for Engine and Hydraulics computer, with diagnostic system.
LR95
Technical Drawings
LR95

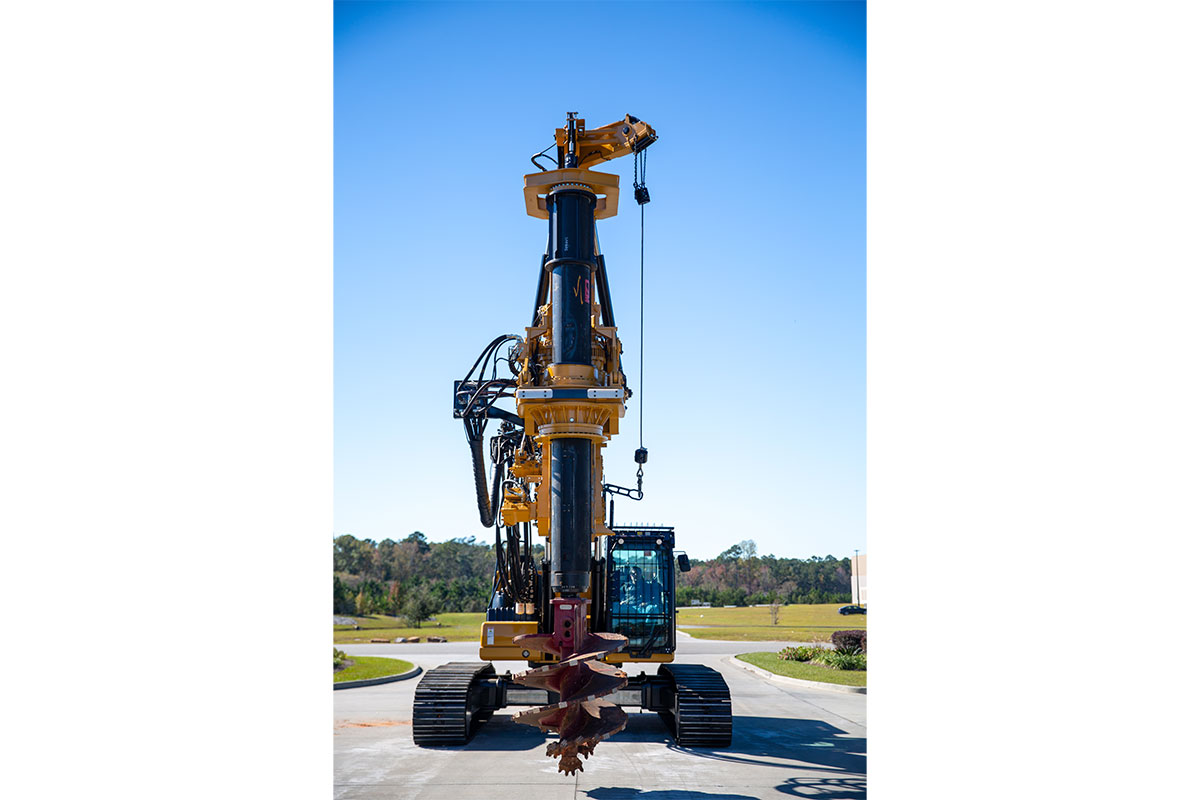

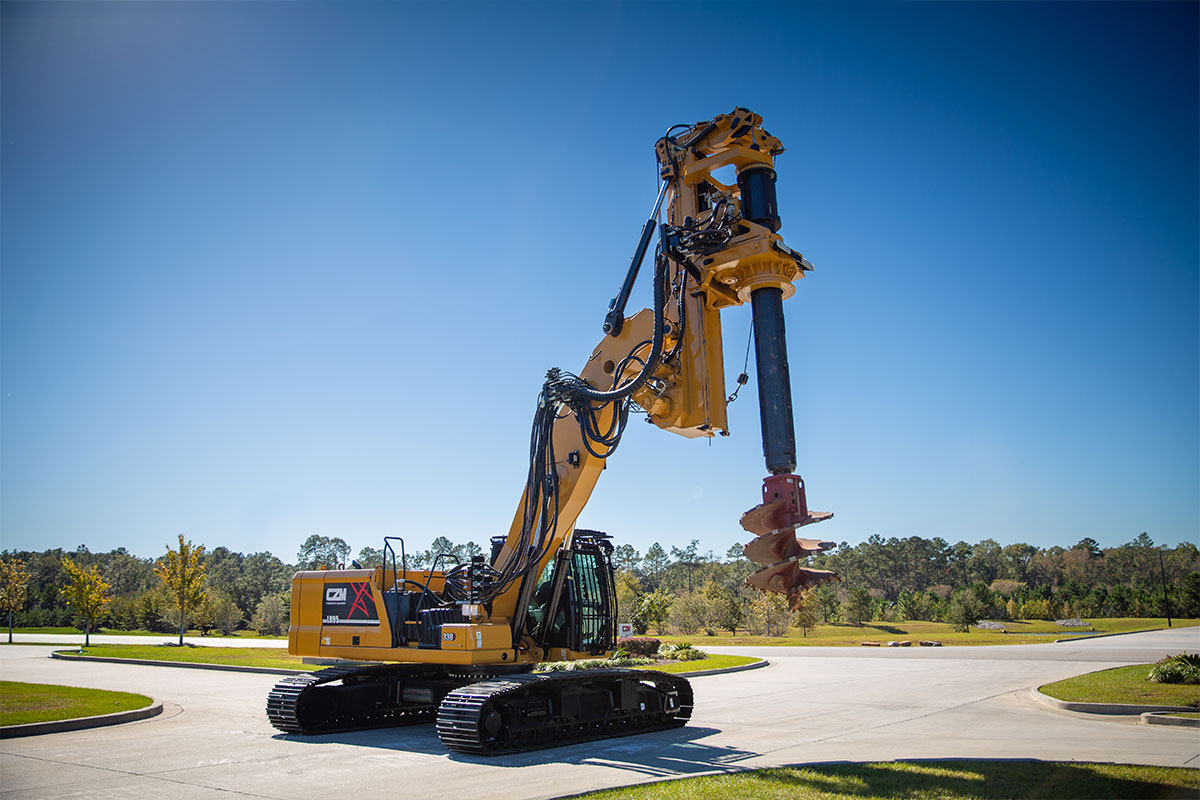

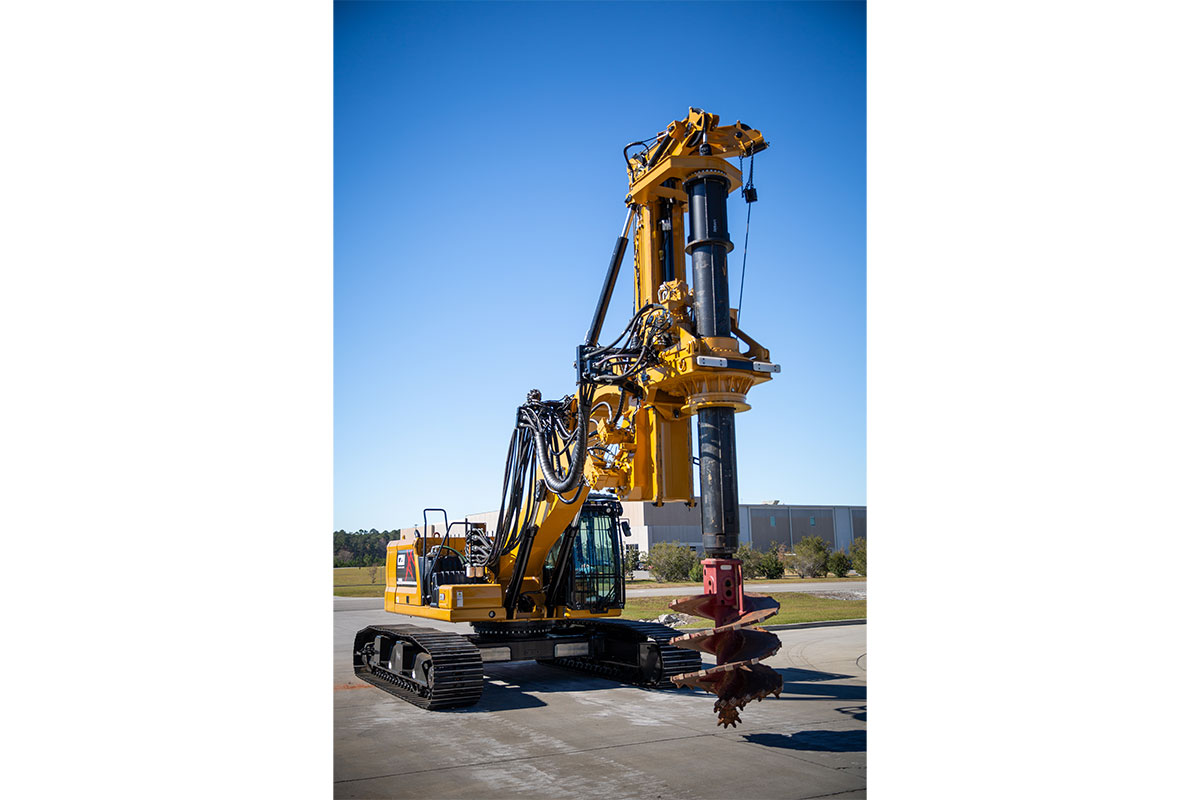

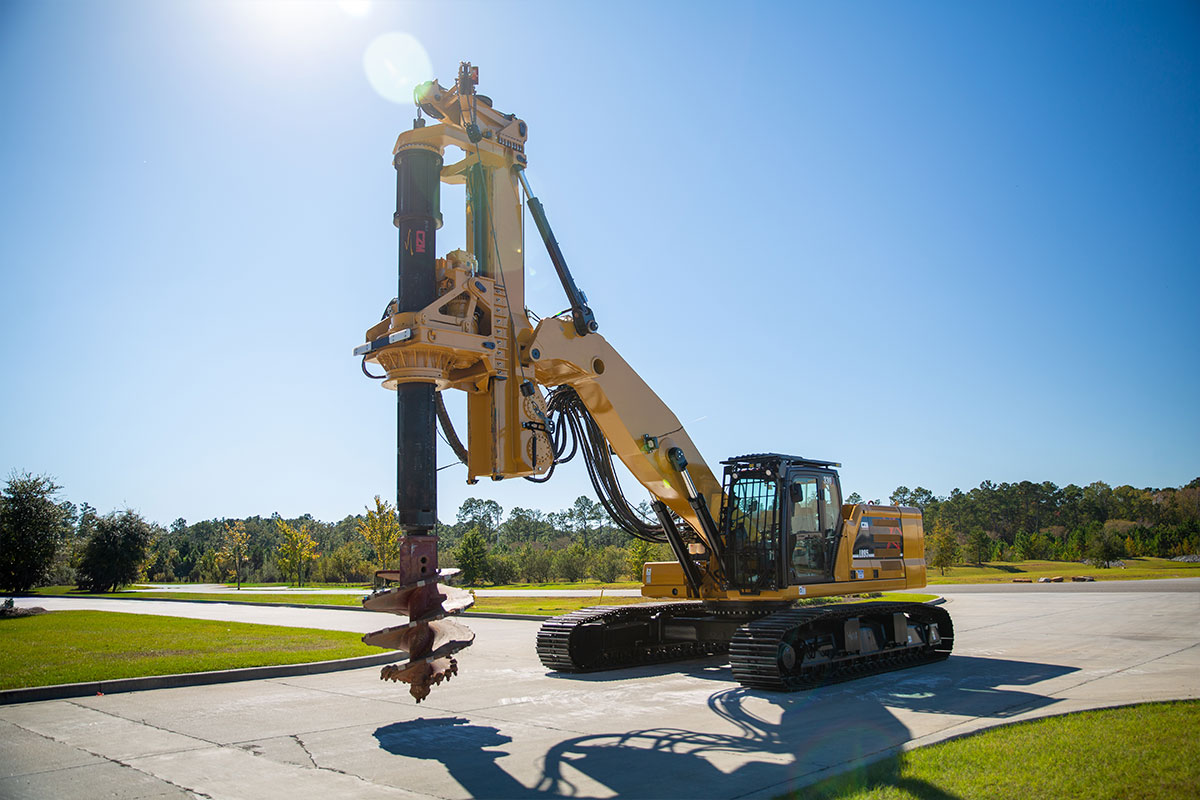

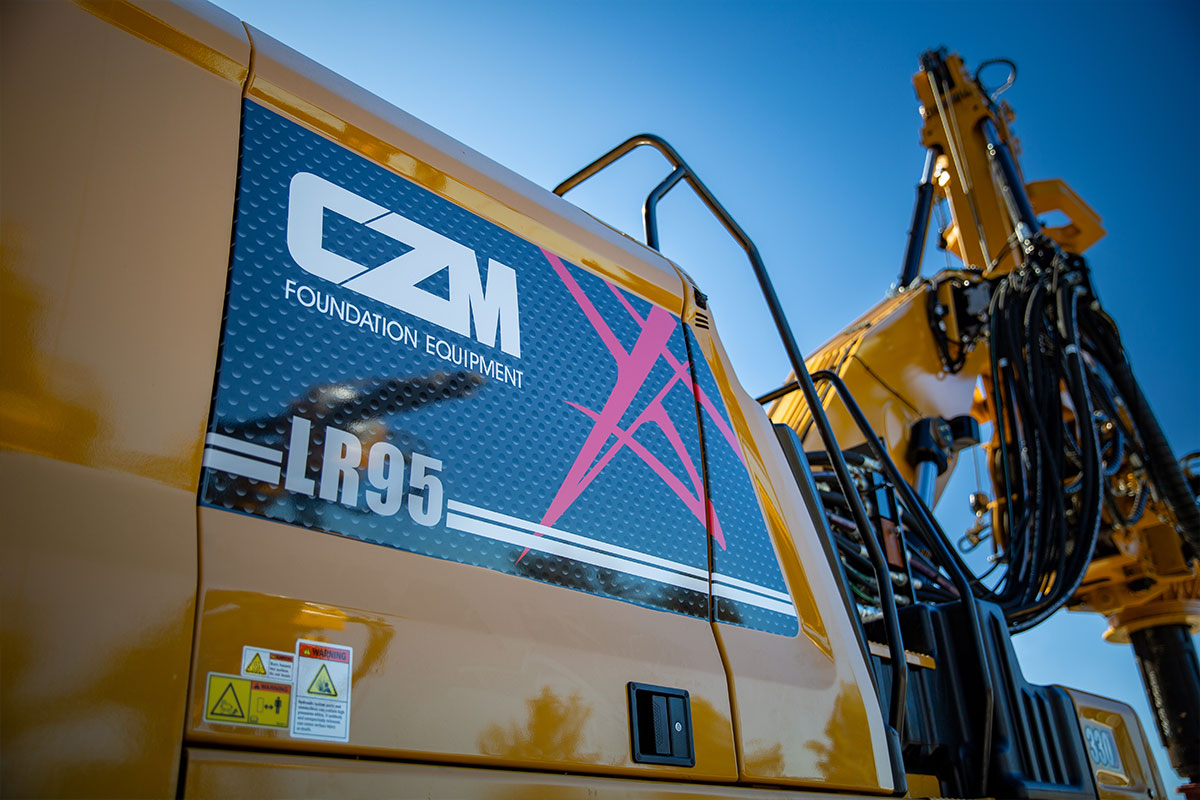

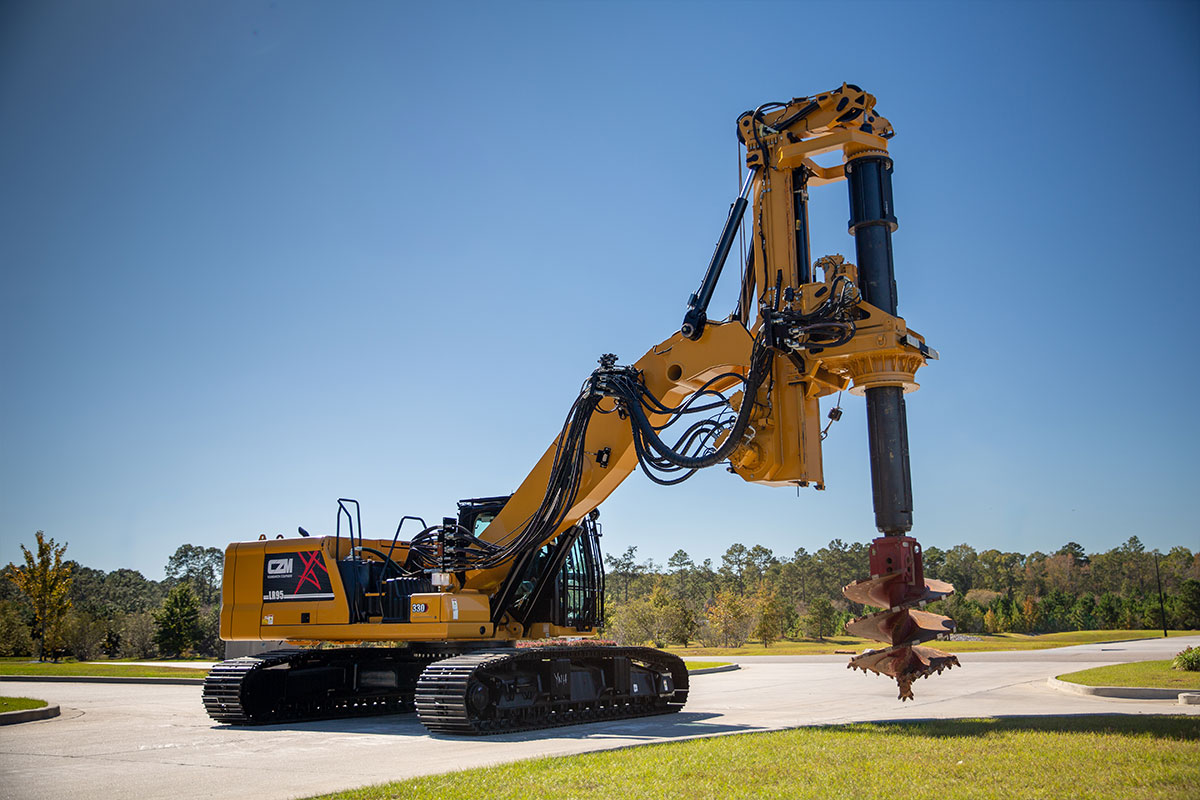

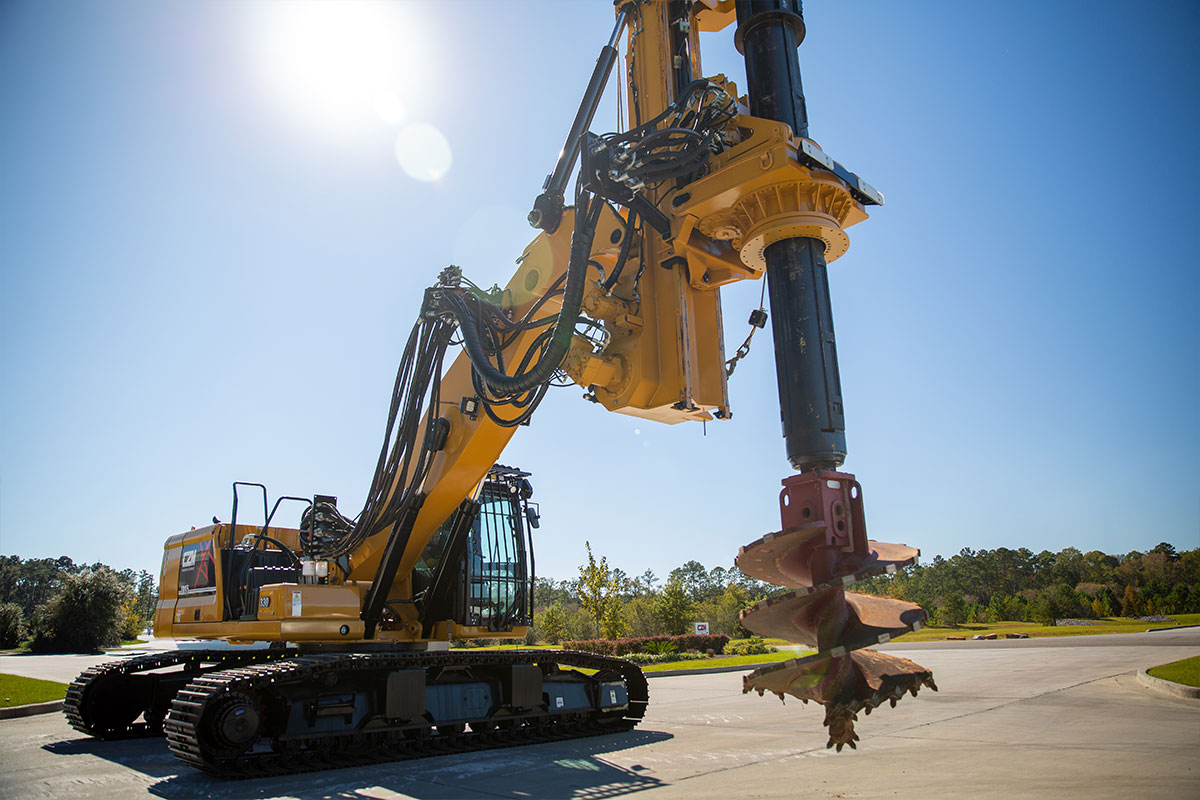

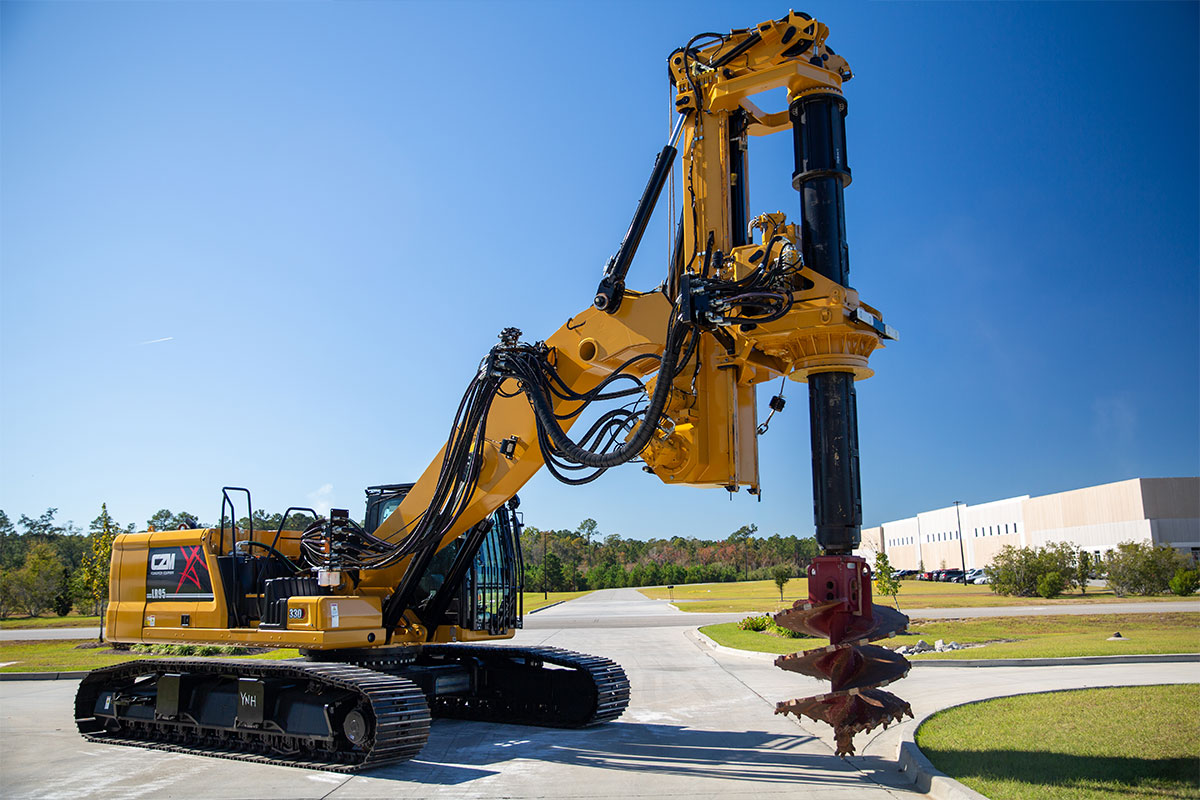

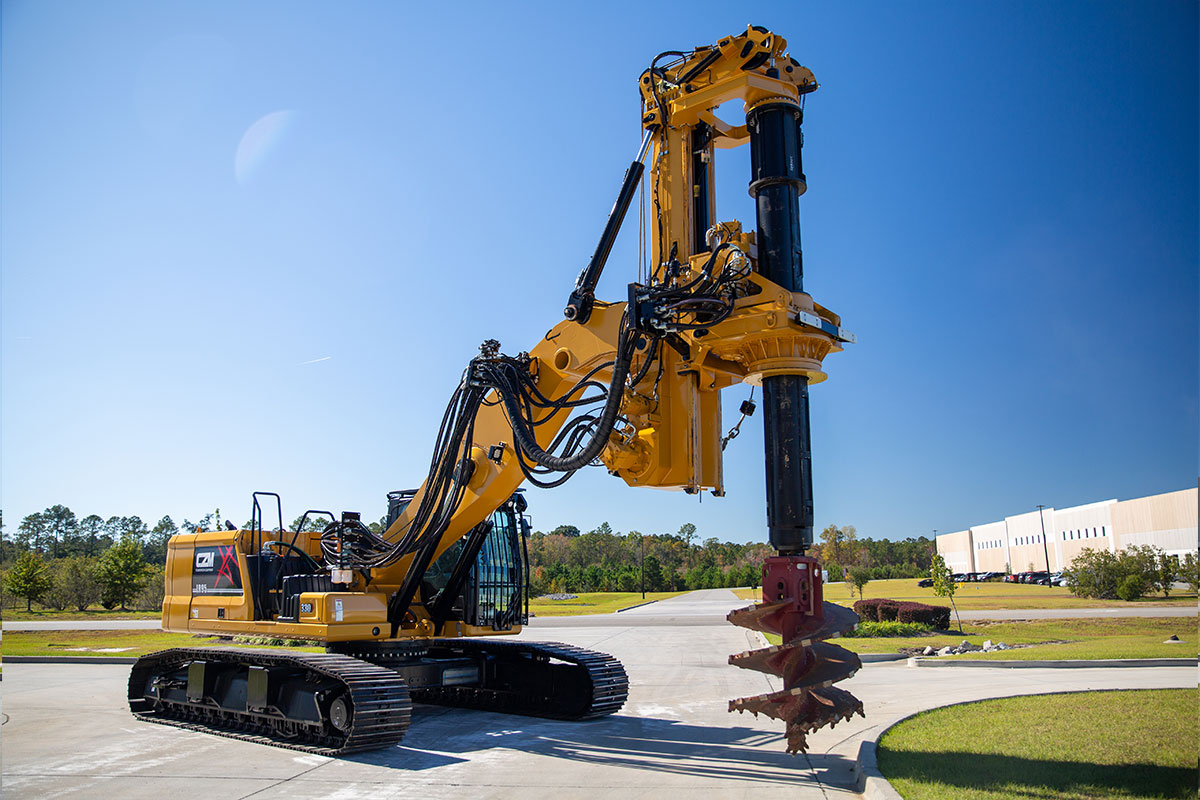

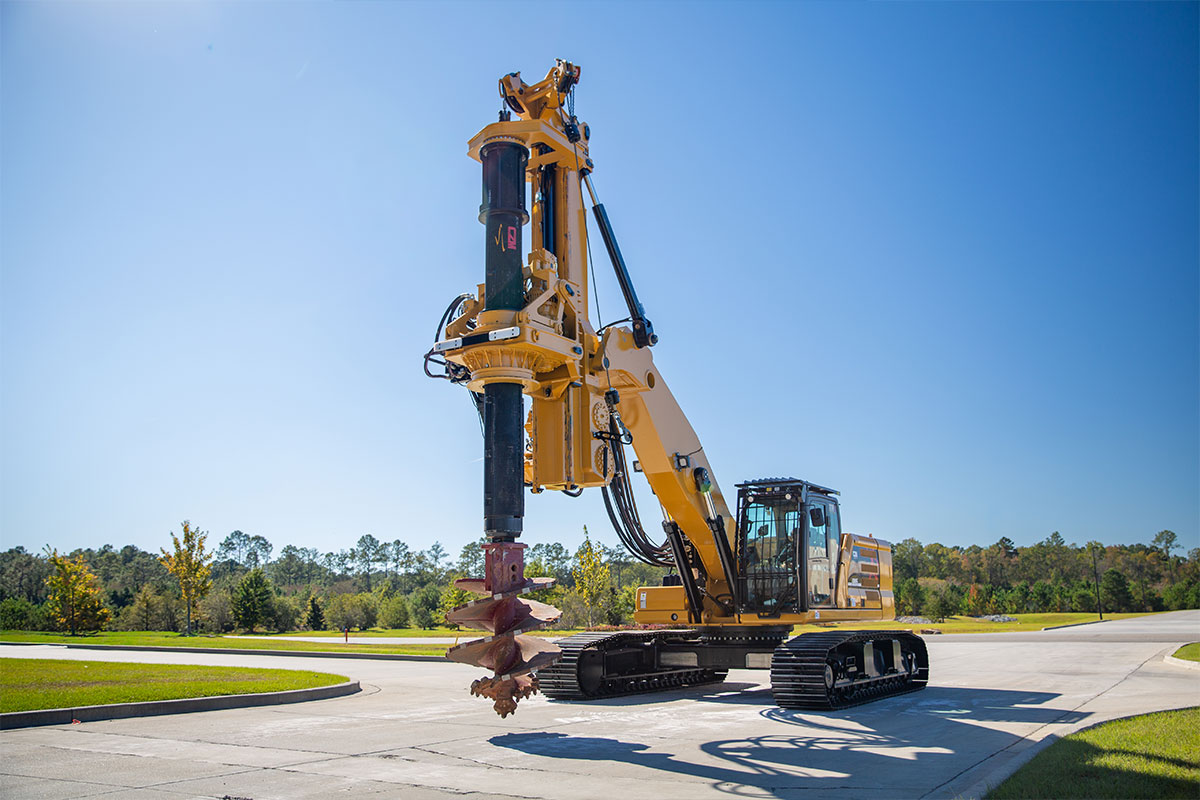

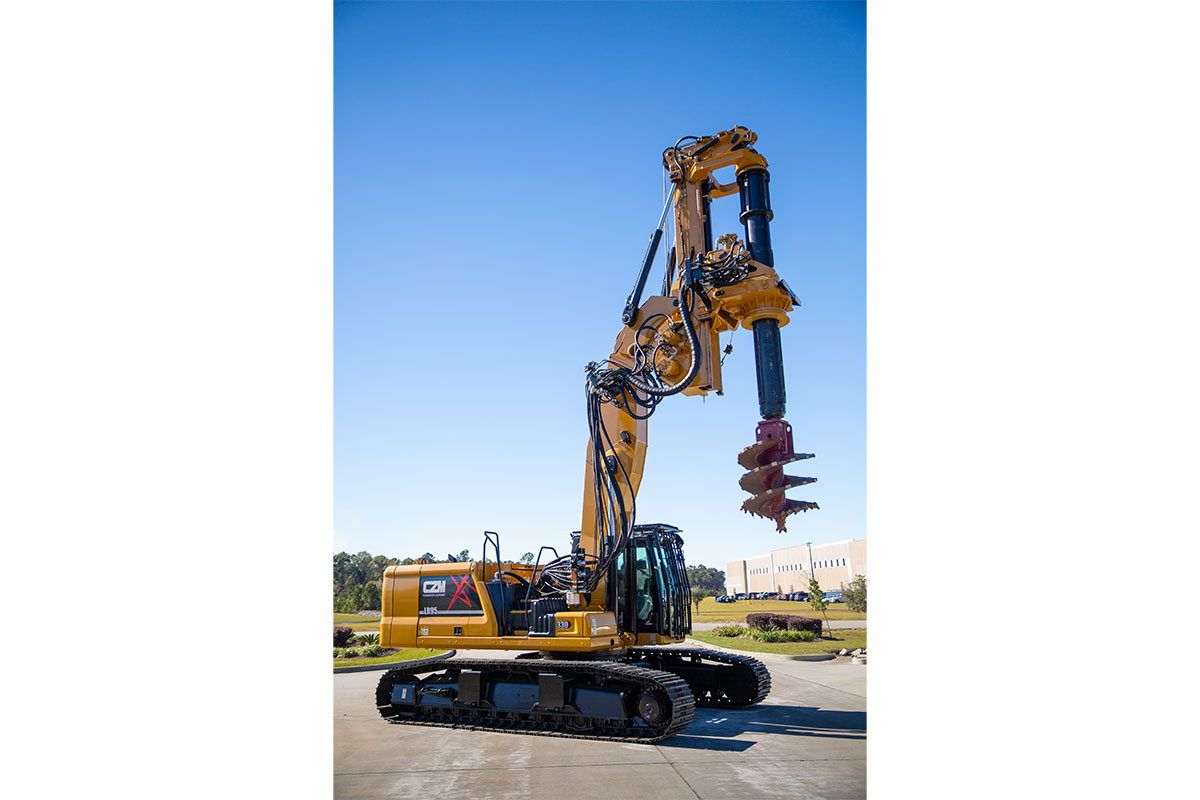

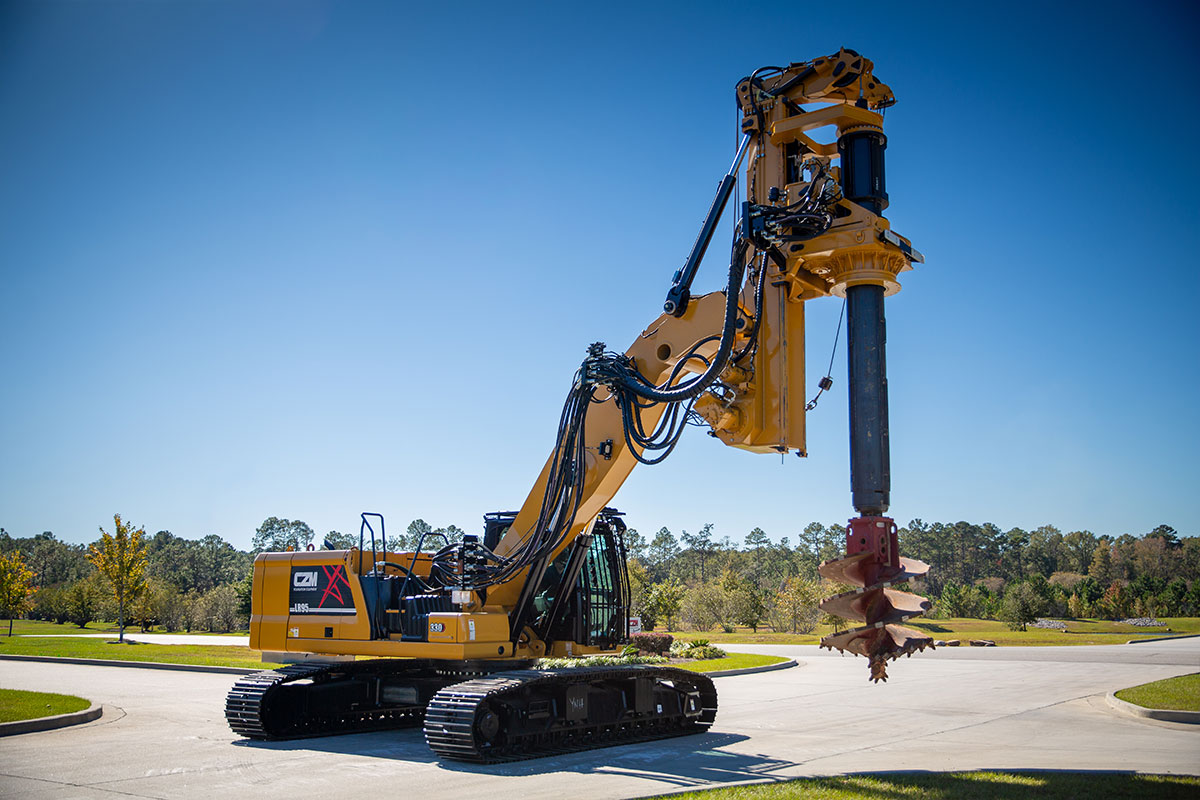

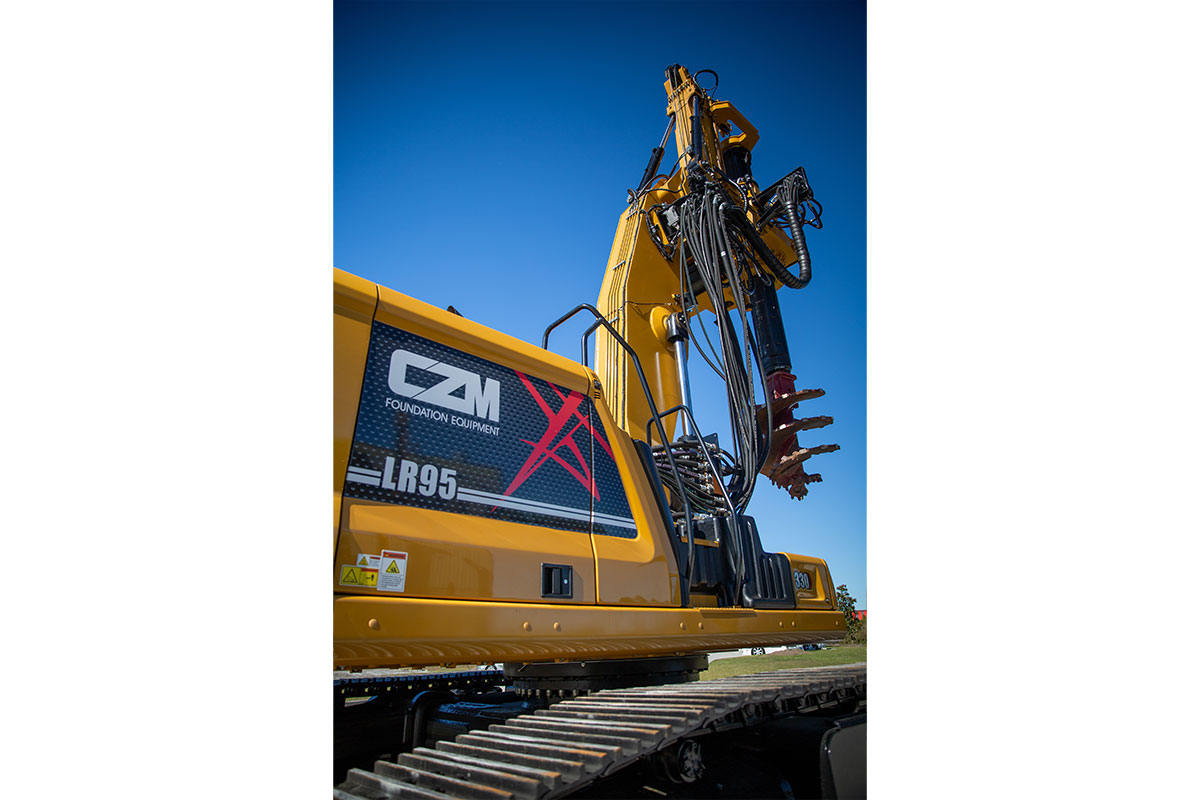

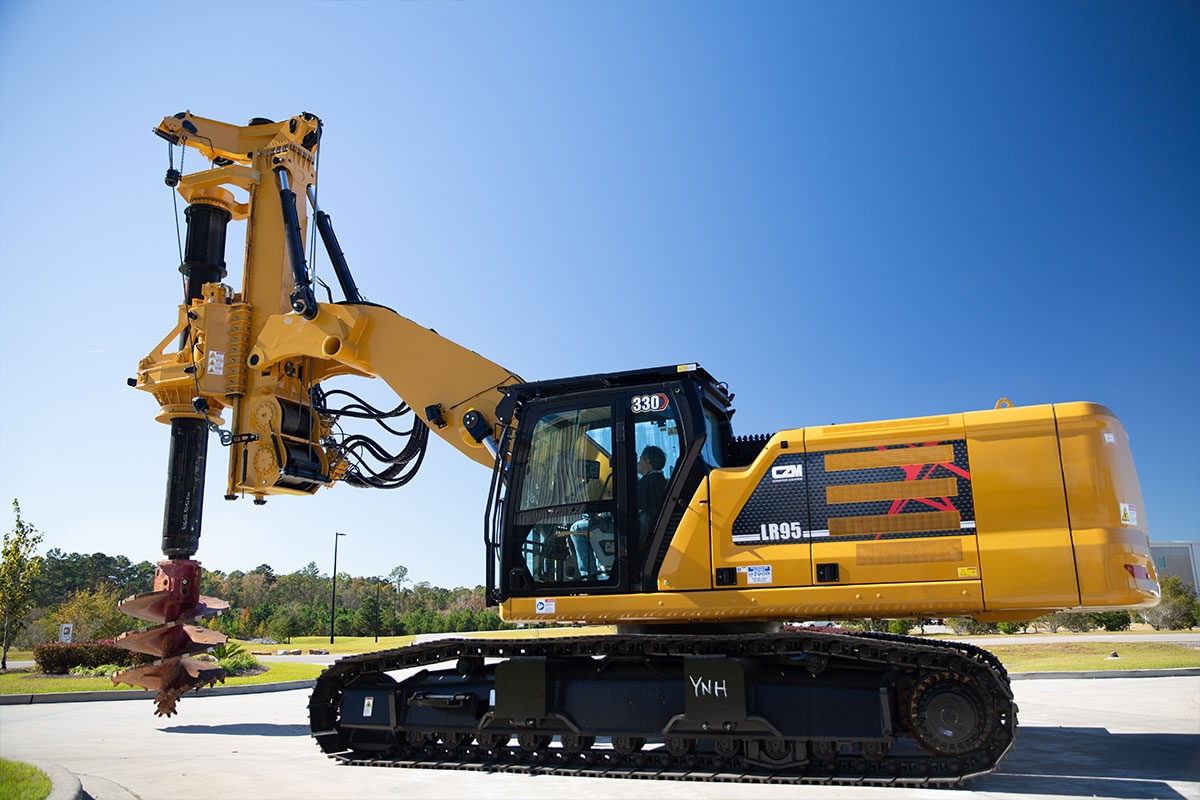

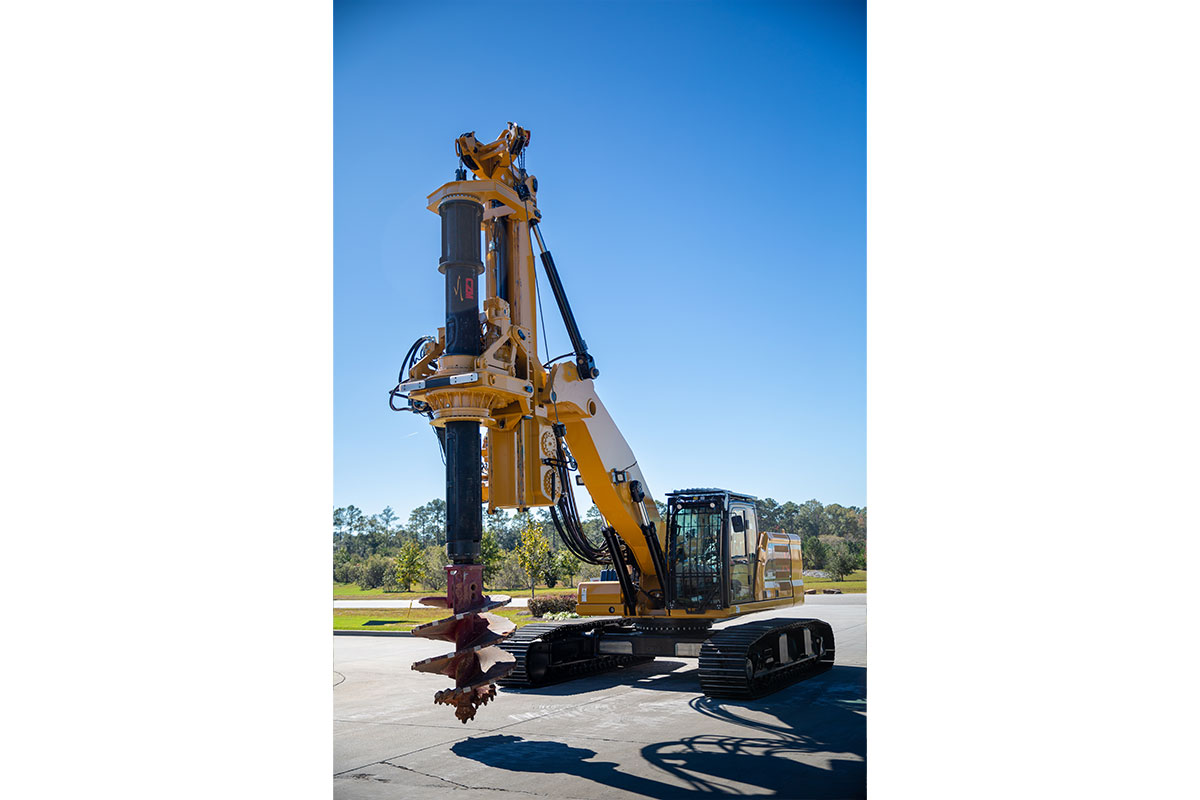

Photo Gallery
