LR50LM

Long Reach

The LR50

TECHNICAL SPECIFICATIONS

Standard Chassis: CAT 323 Next Gen
Installed Power: 172 hp 128.6 kW
Maximum Torque: 52,900 ft.lbs 7,340 kg.m
Maximum Diameter: 8 ft 2,500 mm
Drilling Depth: 40 ft 12,200 mm
Crowd Force: 27,000 lbf 12,300 kgf
Crowd Cylinder Stroke: 6 ft 3 in 1,920 mm
Main Winch Line Pull 27,120 lbf 12,330 kgf
Minimum Transport Weight 70,000 lb 31,750 kg
Operation Weight 75,000 lb 34,000 kg
Learn More

About the LR50

The LR50 is part of CZM’s Long Reach series and is mounted on a CAT 323 Next Gen. The long reach configuration makes it ideal to applications such as sound bearing walls, transmission lines and utilities, drilling on a steep slopes, and difficult to reach holes. Kelly bar options vary from interlocking to round friction and have a standard drilling depth of  40ft with a maximum 8ft diameter.
Base:
  • The new Cat 323 Next Gen is a purpose-built machine powered by a fuel-efficient U.S. EPA Tier 4 Final C7.1 ACERT engine.
  • Equipped with CAT Vision Link that allows management to monitor machine operations and maintenance data online and wireless, providing information such as location, hours, fuel usage, idle time, event codes and maintenance schedule.
Mast:
  • Reinforced mast, with high resistance steel Weldox 700.
Main Winch:
  • Special groove for better cable winding and longer cable life.
  • Press-roller included.
  • 2 gears allows for both high speed and high pulling force.
  • Automatic gear shifting, for seamless operation, high production.
  • Automatic down the hole winch stop. When Kelly bar reaches the bottom of the hole, winch automatic stops.
  • Free willing winch during crowd operation.
  • Hydraulic and mechanic brake.
  • Hydraulic measurement of pulling force displayed in the cabin for operator.
Rotary:
  • Robust design, with 2 slewing bearings on top and bottom, robust pinion and main gear.
  • Anti-cavitation and anti-shock system for longer hydraulic motor life.
  • 1 group of Hydraulic Motor / Planetary Gear for high torque, high speeds and long life.
  • Cooling system for hydraulic motors and gearboxes.
  • Power-shift for High spin-off speed (120rpm) for quick discharge of soil.
  • 3 operation speeds and 3 spinoff speeds. For high torque and high speeds.
  • Automatic gear shifting, for seamless operation, high production.
  • Exchangeable keys, bolted. No need to rebuild keys by welding inside the rotary.
  • Hydraulic measurement of torque displayed in the cabin for the operator.
Cab:
  • AM/FM Radio, Air conditioning/Heating.
  • ROPS cab & Top protection.
  • LCD monitor for Engine and Hydraulics computer, with diagnostic system.
VIDEO TOUR

LR50

LR50

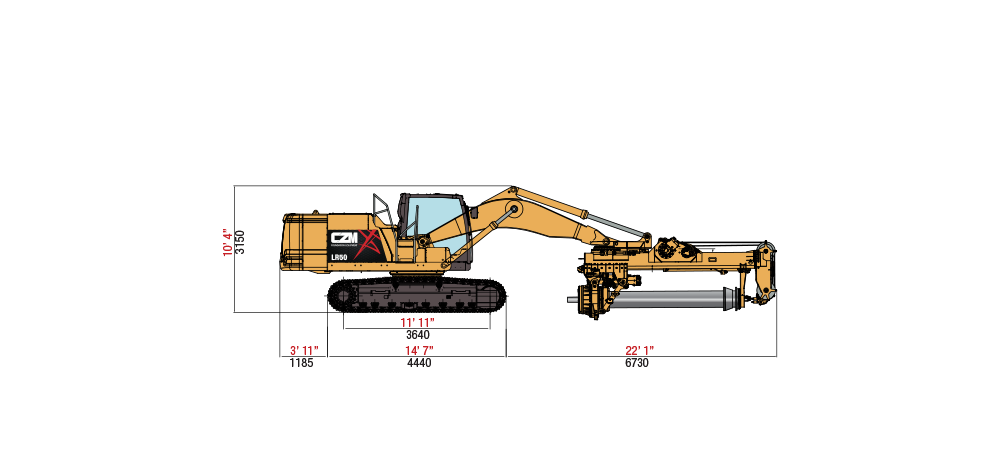

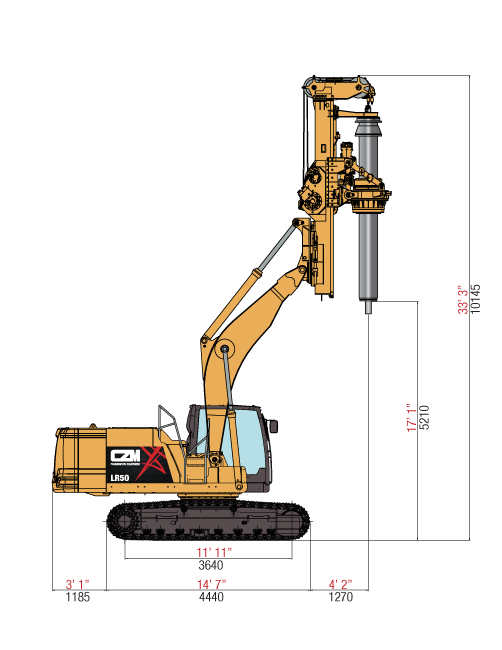

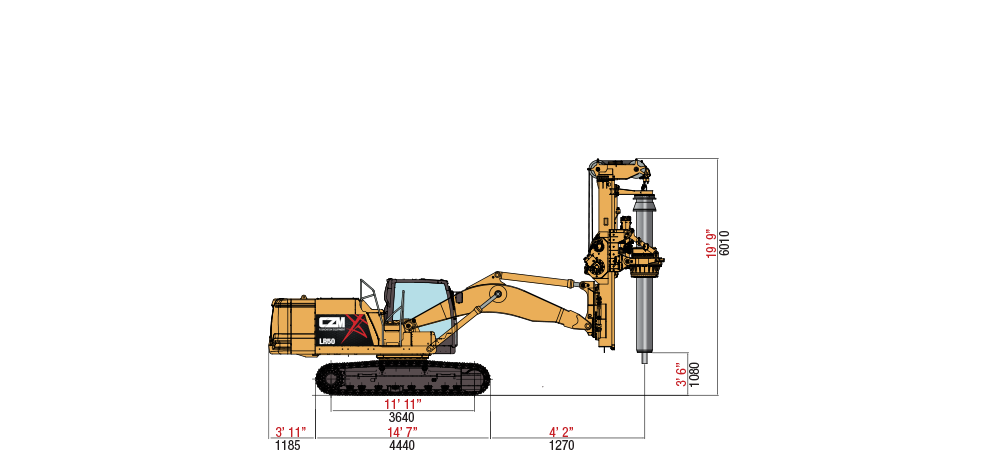

Technical Drawings

LR50
