LR65
Applications

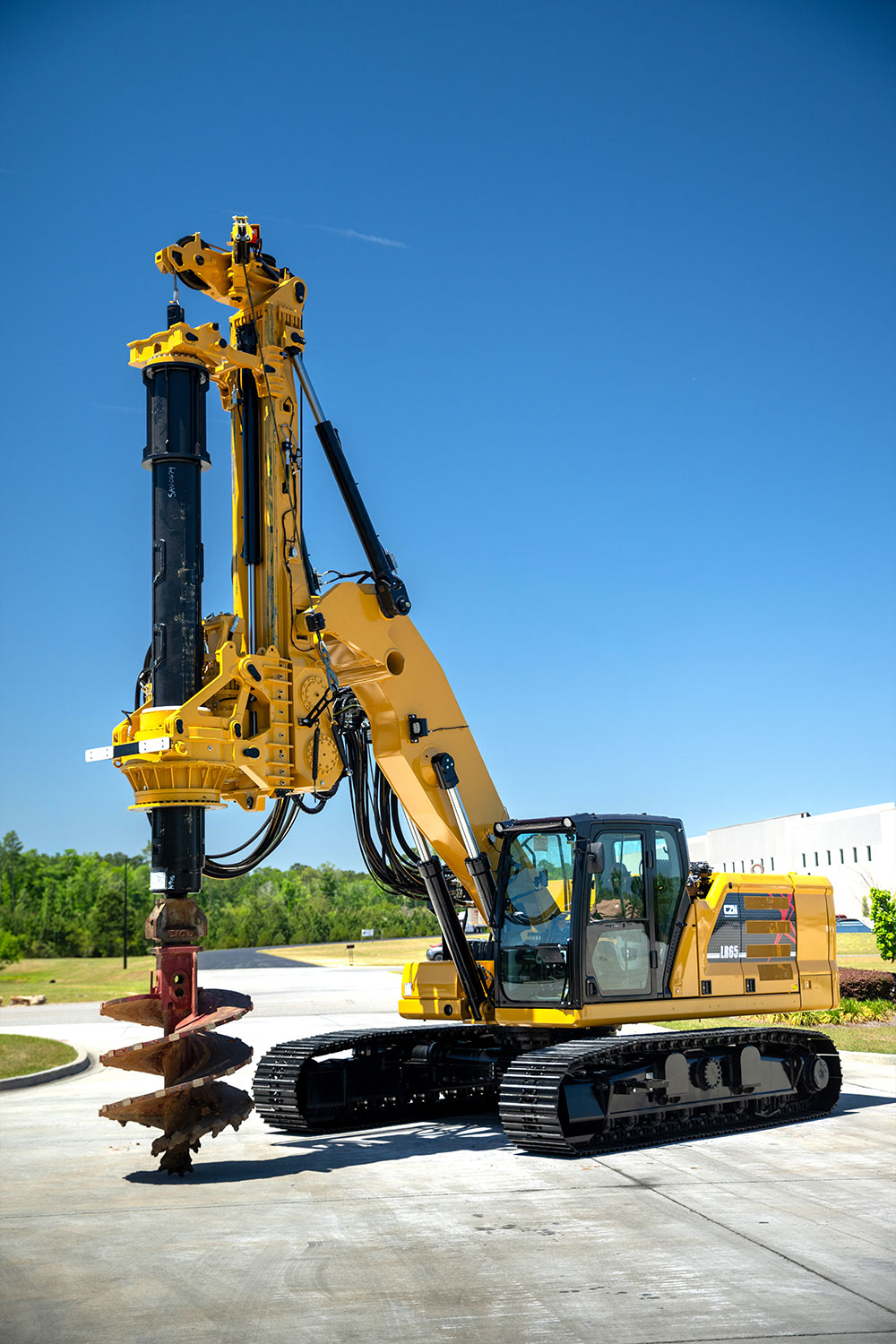

The LR65
TECHNICAL SPECIFICATIONS
| Standard Chassis: | Cat® 323 Next Gen |
| Installed Power: | 176 hp |
| Maximum Torque: | 77,500 ft.lbs |
| Maximum Diameter: | 9 ft |
| Std. Depth(Interlocking Kelly): | 84 ft |
| Crowd Force: | 27,000 lbf |
| Crowd Cylinder Stroke: | 6 ft 3 in |
| Main Winch Line Pull | 27,100 lbf |
| Minimum Transport Weight | 86,900 lb |
| Operation Weight | 86,900 lb |

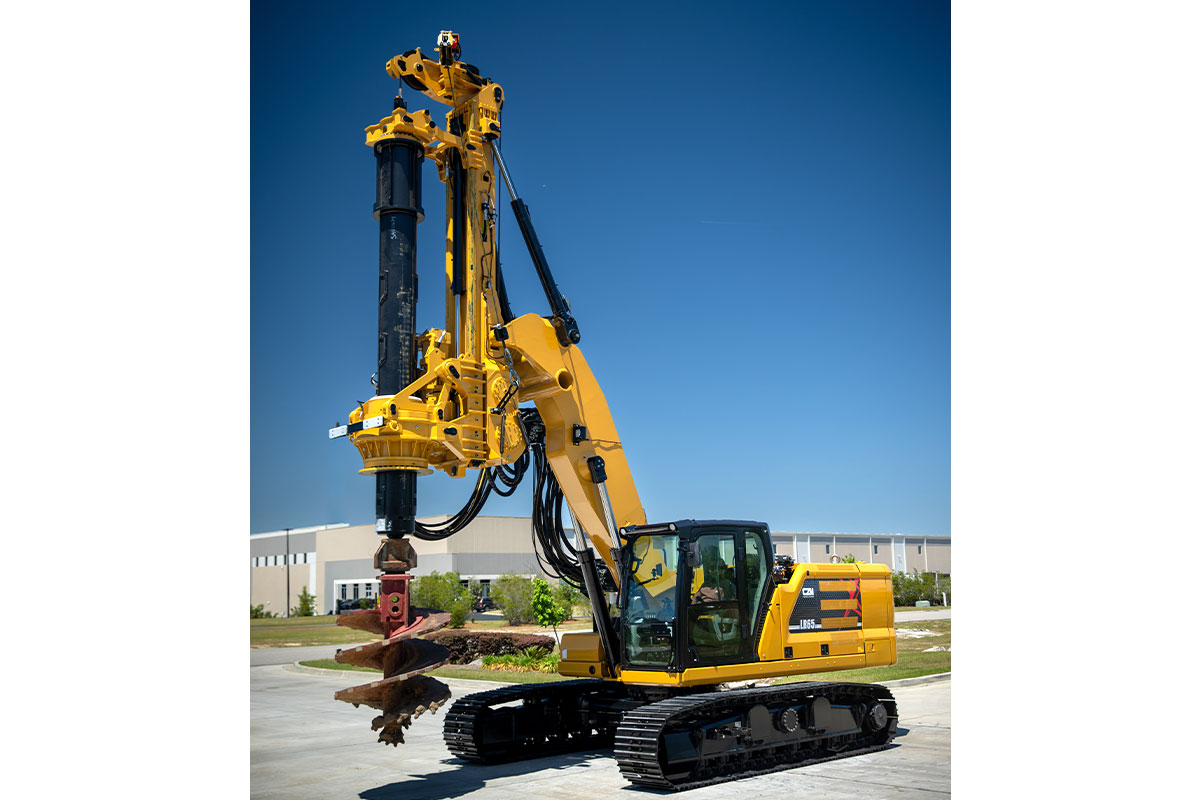

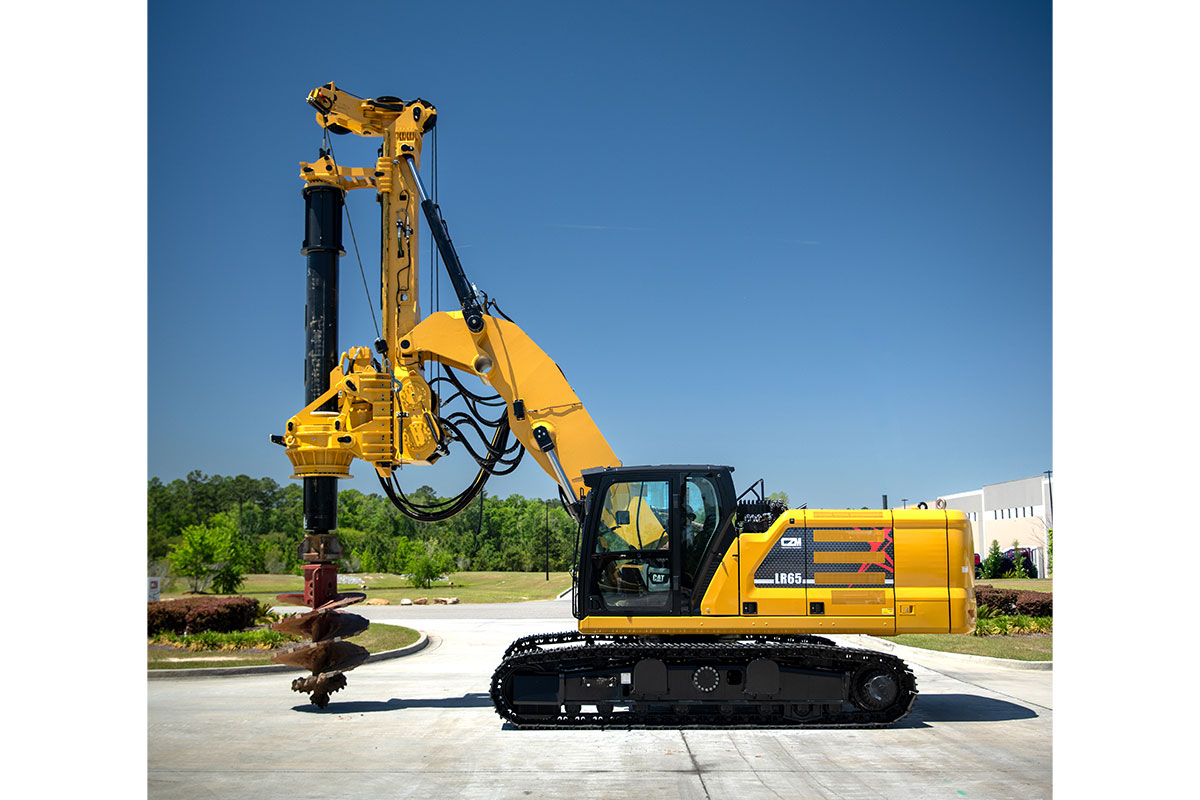

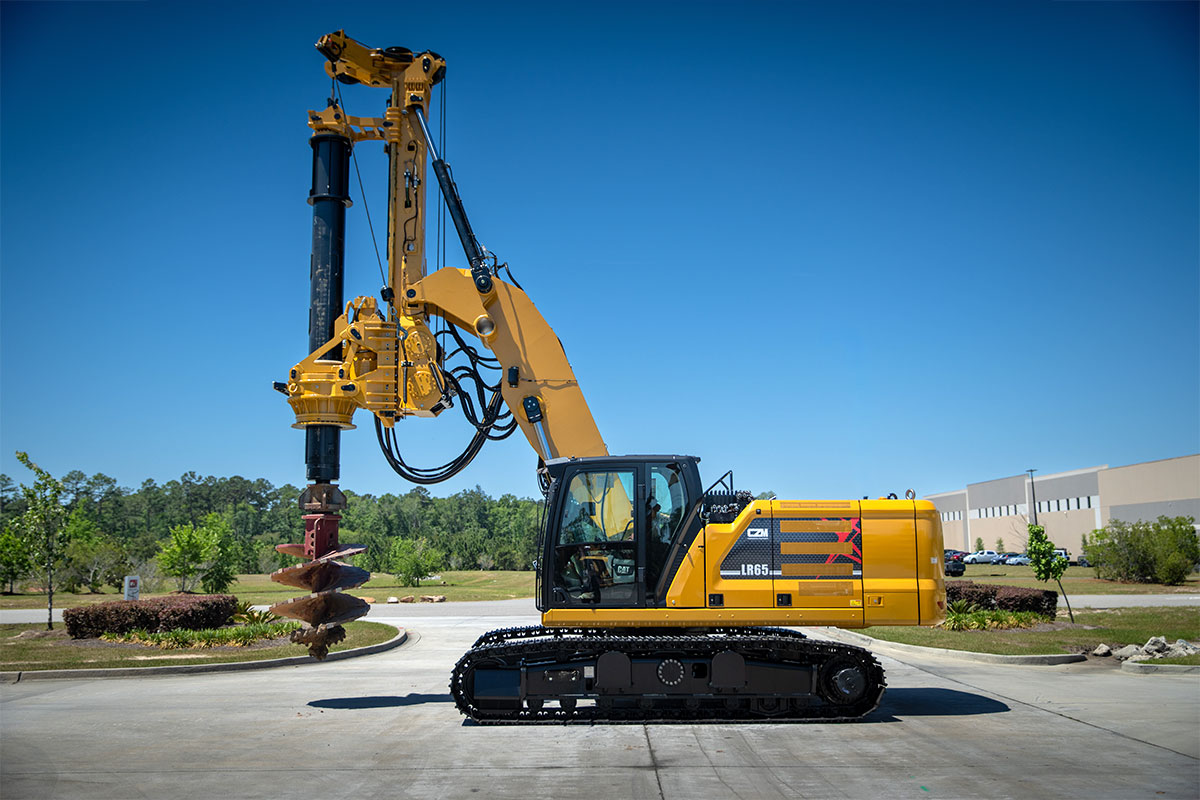

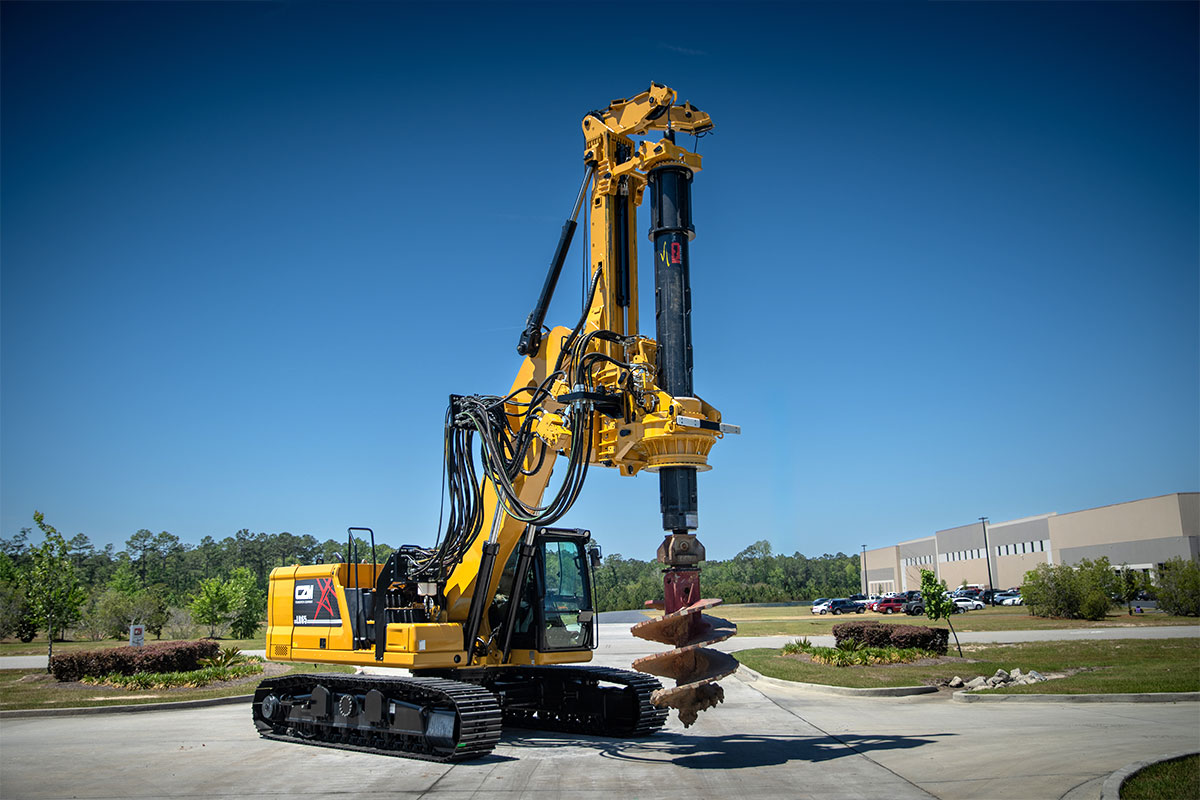

About the LR65
Base:
-
The new Cat® 323 Next Gen is a purpose-built machine powered by a fuel-efficient U.S. EPA Tier 4 Final C7.1 ACERT engine.
-
Equipped with CAT Vision Link that wirelessly allows monitoring of the machine for maintenance and operations data, providing information such as location, hours, fuel usage, idle time, event codes and maintenance schedule.

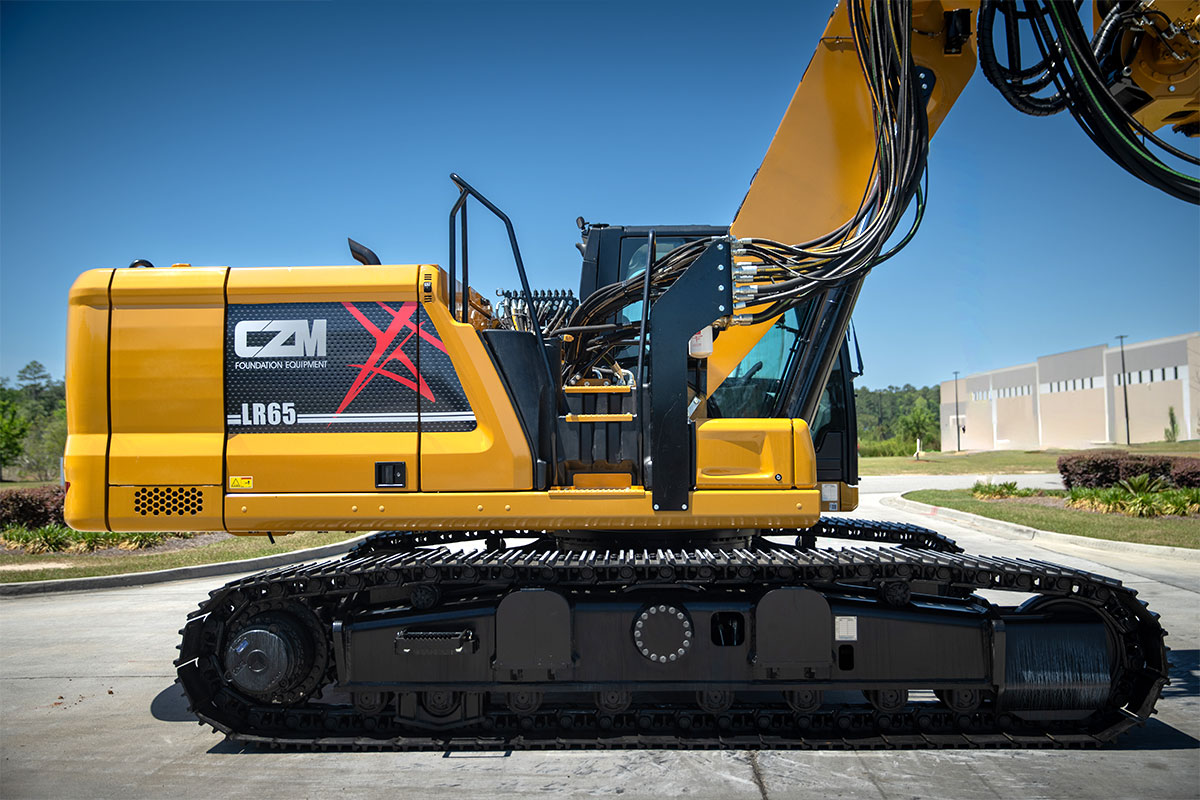

Undercarriage:
-
Caterpillar variable undercarriage with a reinforced H-style frame provides increased stability and traction force. Its variable width design expands for maximum stability during drilling and retracts for easy transport.

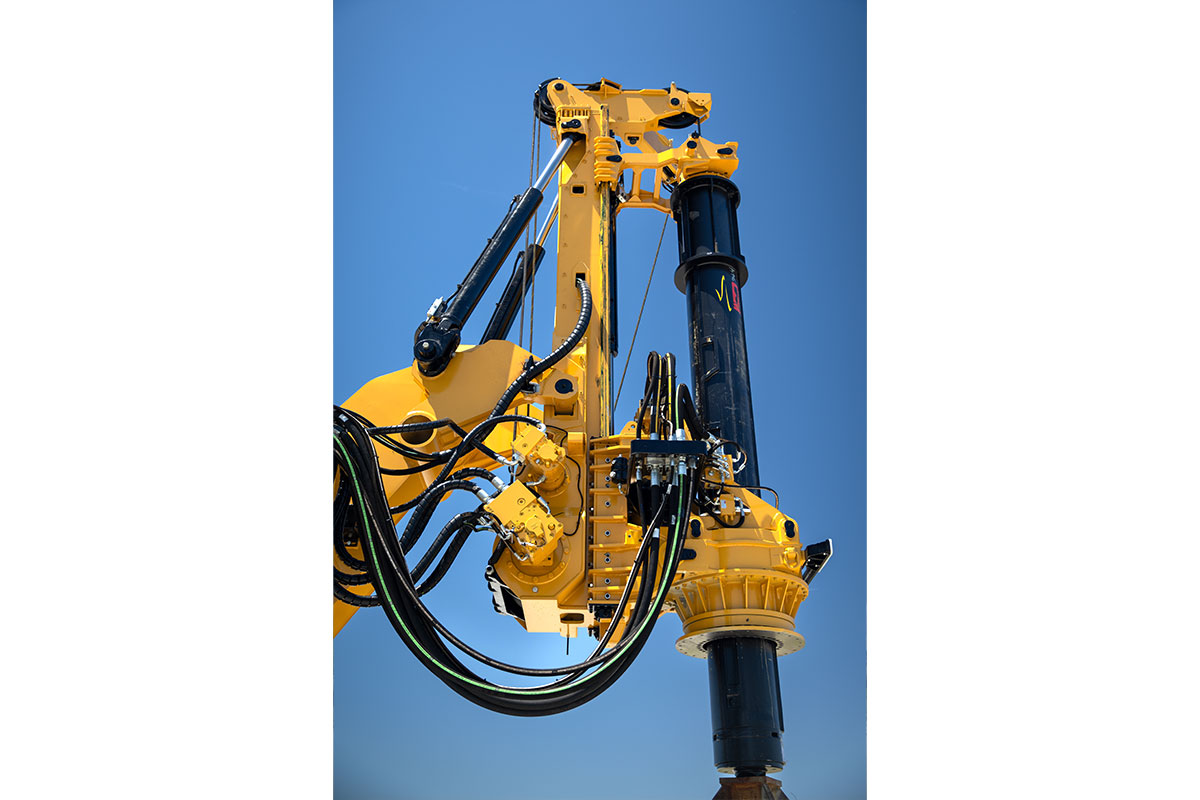

Mast:
- Reinforced mast, with high resistance steel Weldox 700.
Main Winch:
-
Special groove for better cable winding and longer cable life.
-
Press roller to maintain cable alignment standard.
-
2 gears allows for both high speed and high pulling force.
-
Automatic gear shifting, for seamless operation, high production.
-
Automatic down the hole winch stop. When Kelly bar reaches the bottom of the hole, winch automatically stops.

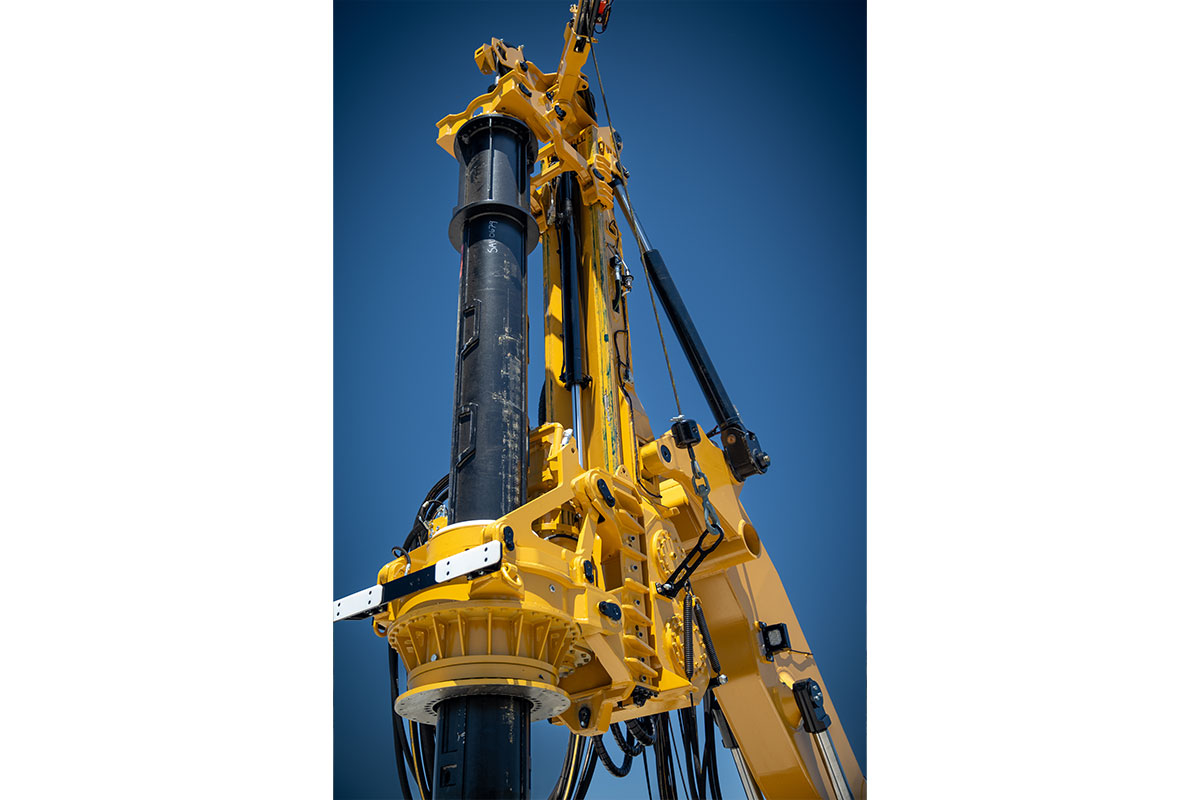

Rotary:
-
Robust design, with 2 slewing bearings on top and bottom, and robust pinion and main gear.
-
Anti-cavitation and anti-shock system for longer hydraulic motor life.
-
Cooling system for hydraulic motors and gearboxes.
-
Power-shift for High spin-off speed
(140 rpm) for quick discharge of soil. -
3 operation speeds and 3 spinoff speeds. For high torque and high speeds.
-
Automatic gear shifting, for seamless operation, high production.
-
Exchangeable keys, bolted and reversible. No need to rebuild keys by welding inside the rotary.
-
Hydraulic measurement of torque displayed in the cab for the operator.
Cab:
-
AM/FM Radio, Air conditioning/Heating
-
Top protection
-
LCD monitor for Engine and Hydraulics computer, with diagnostic system

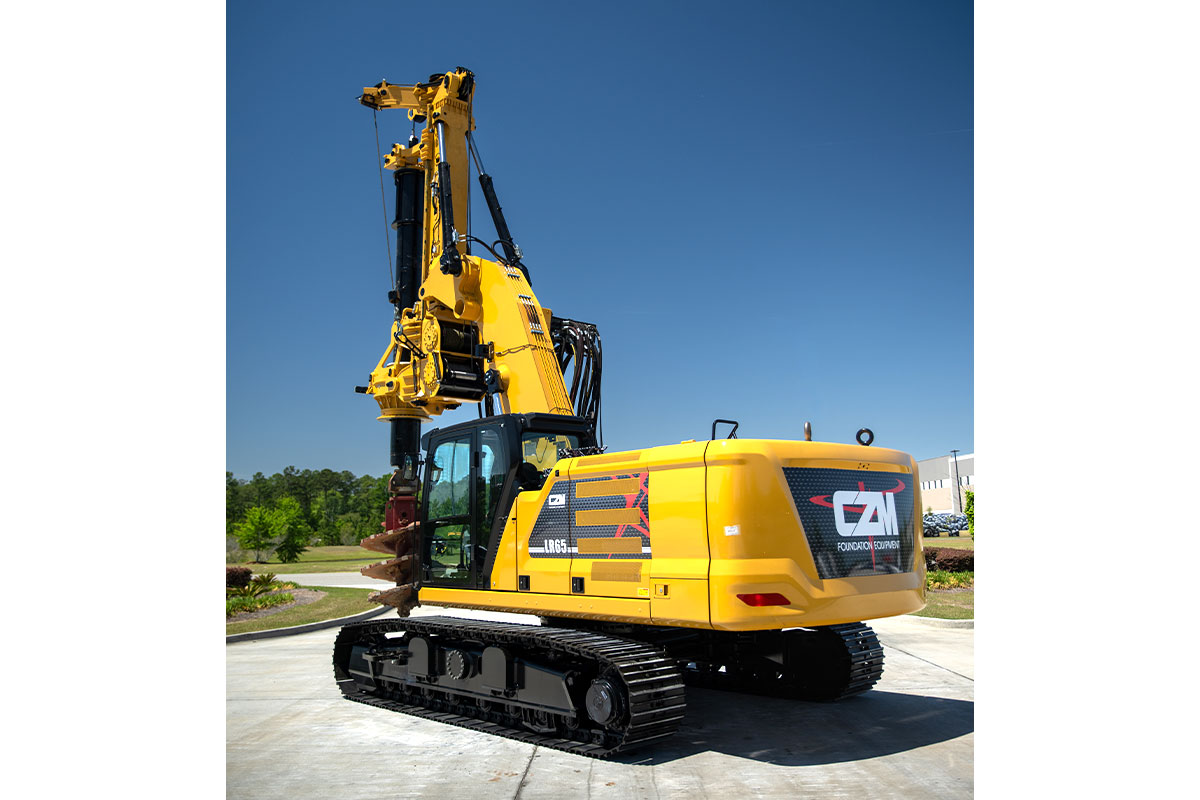

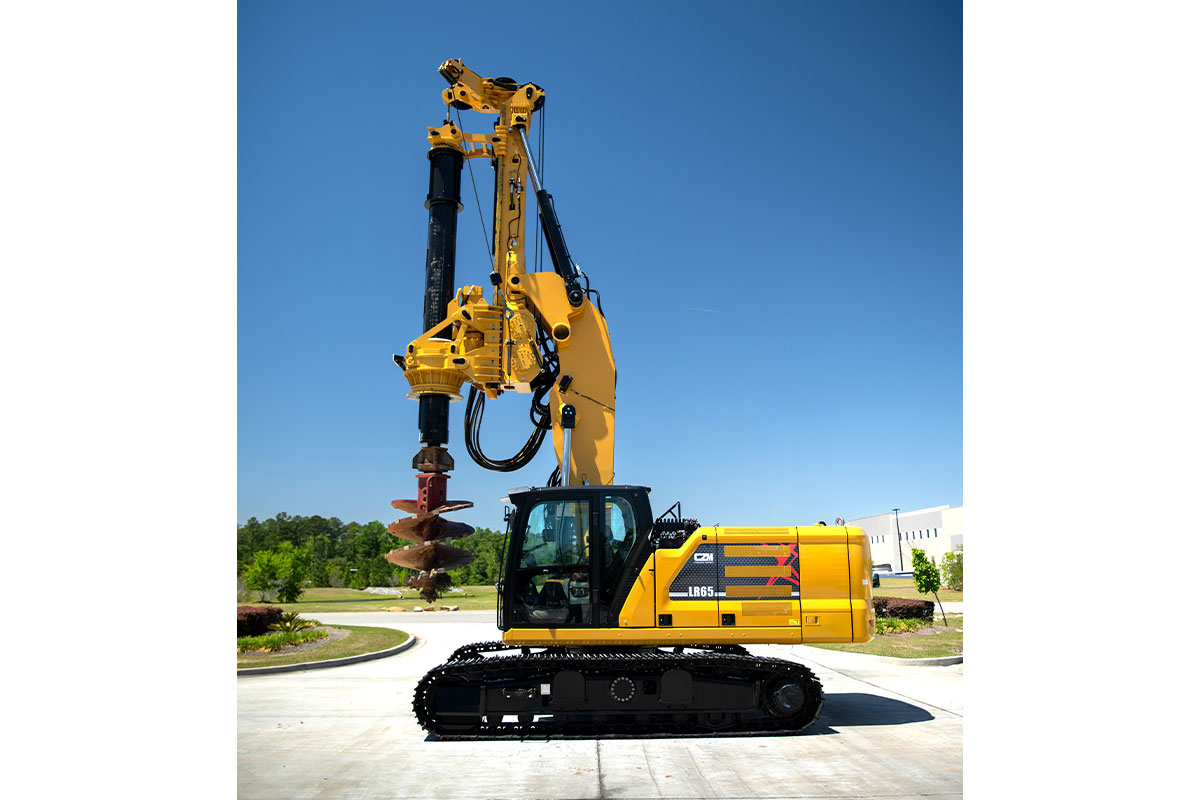

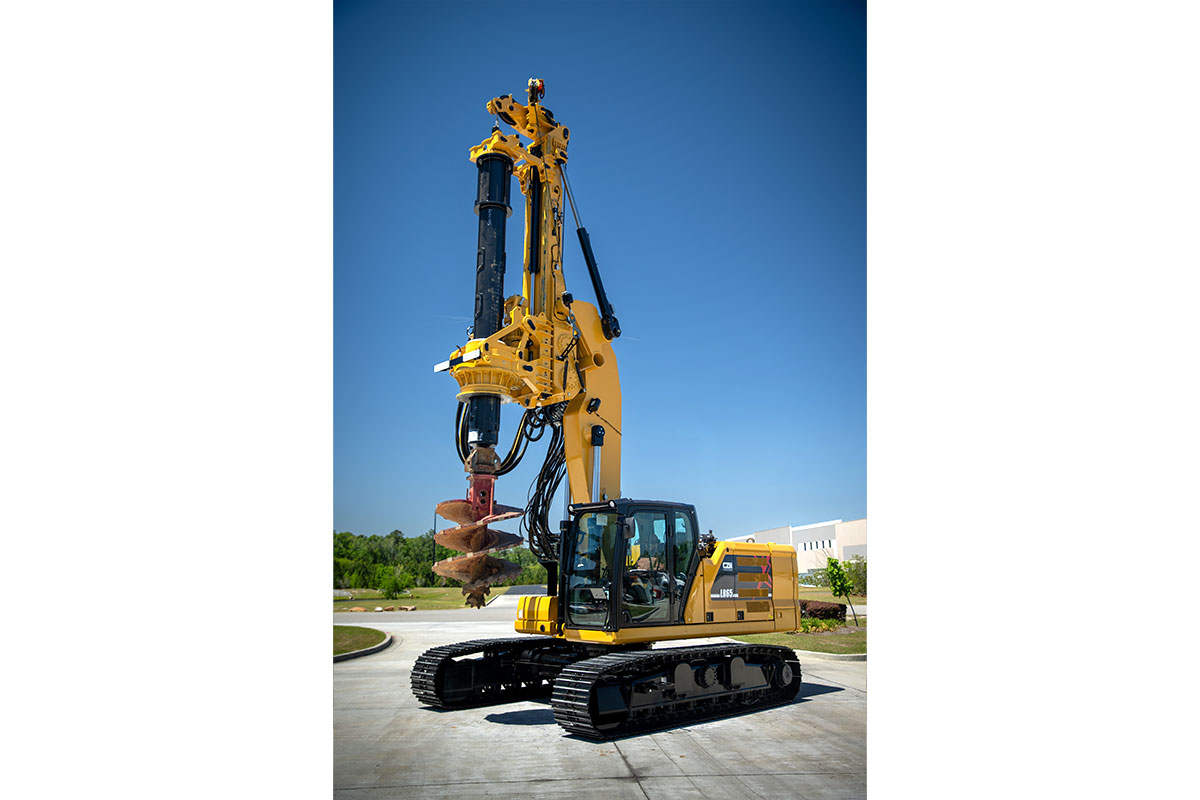

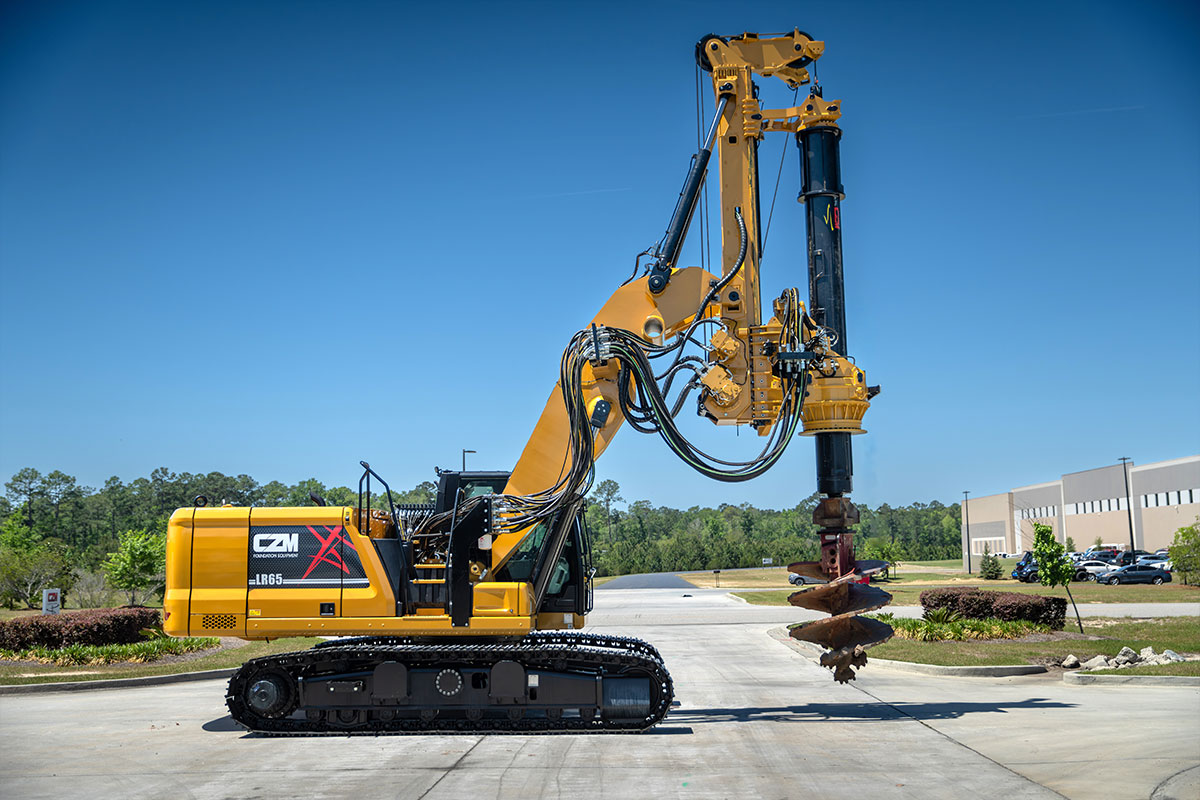

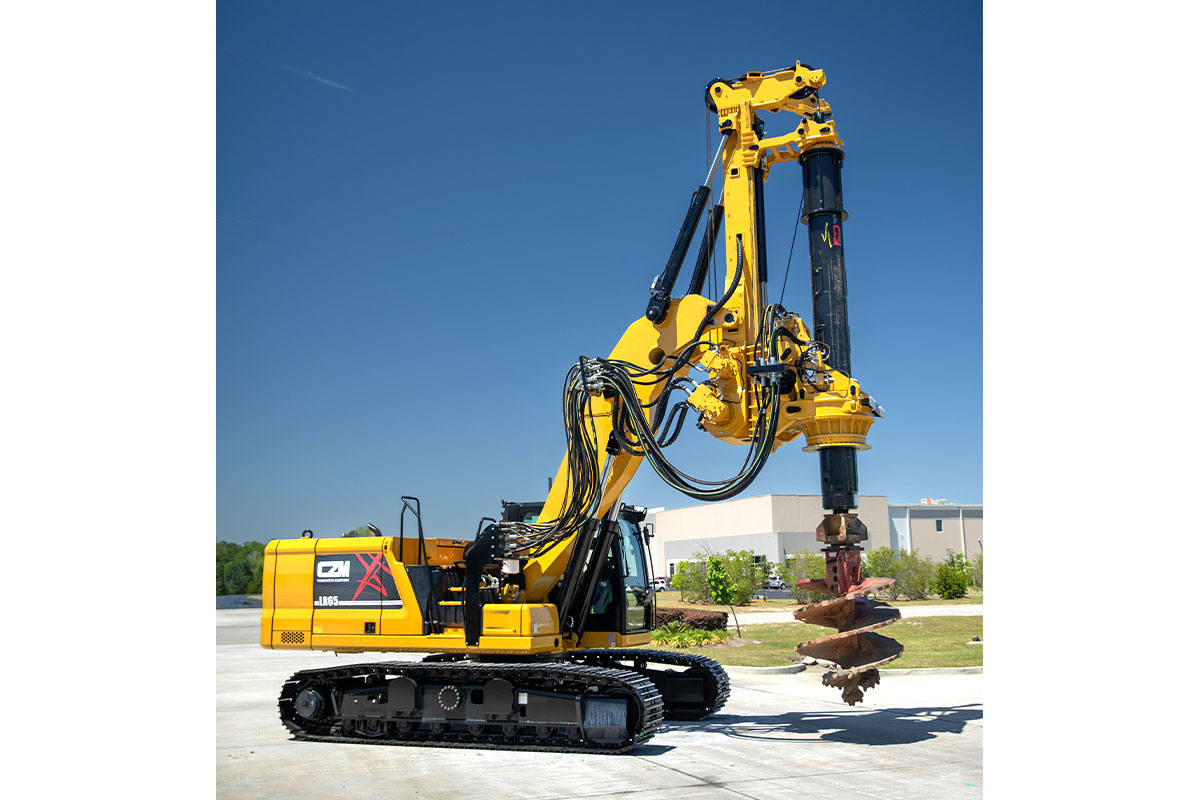

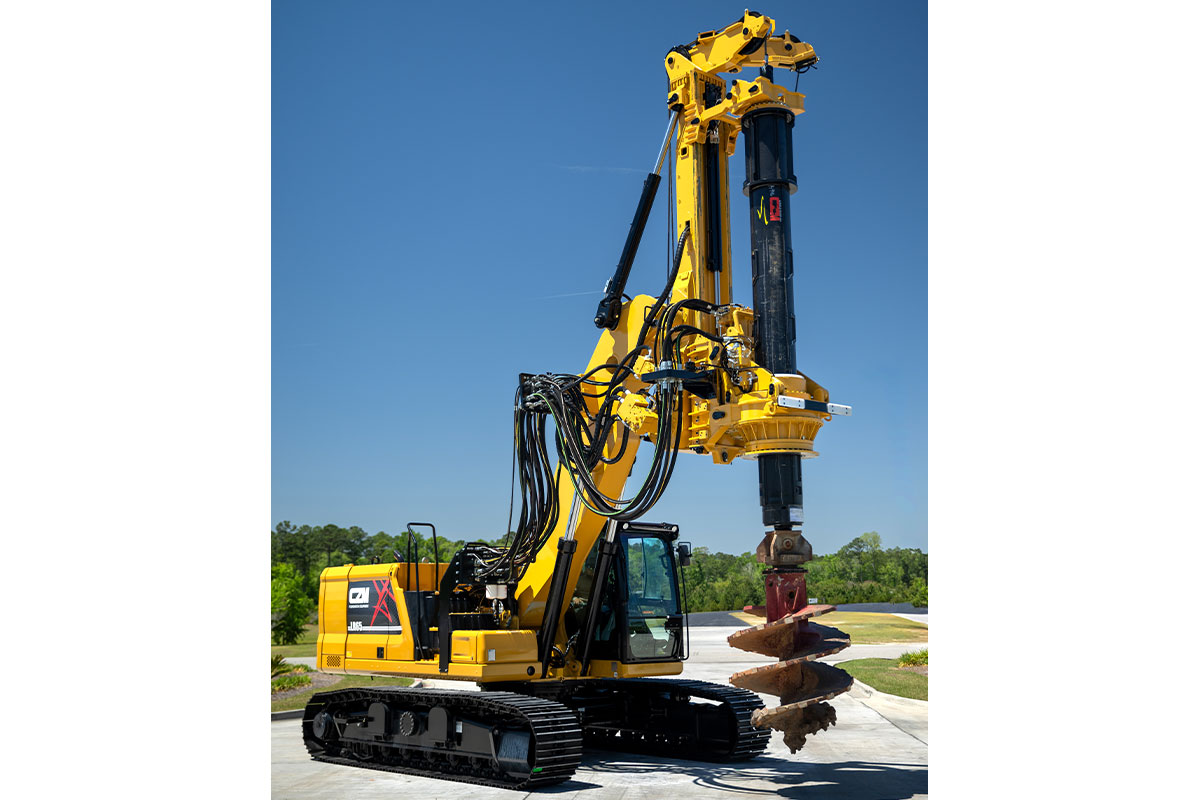

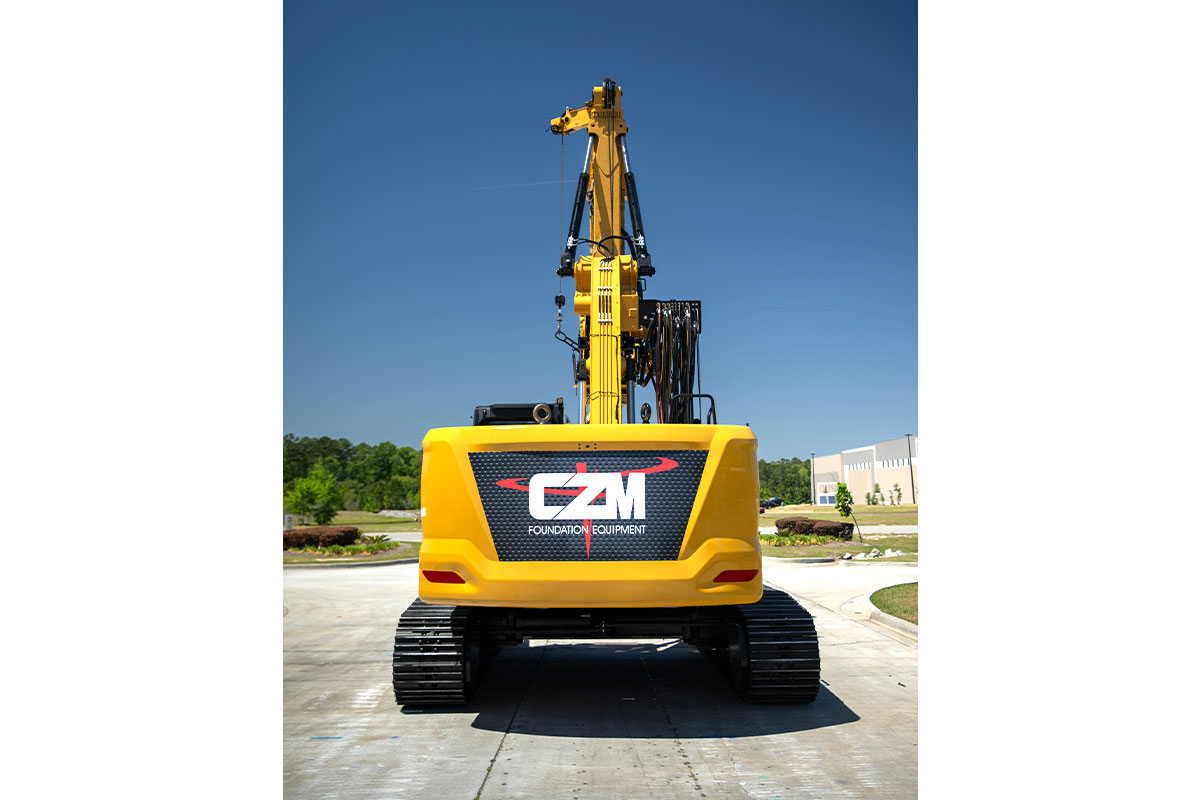

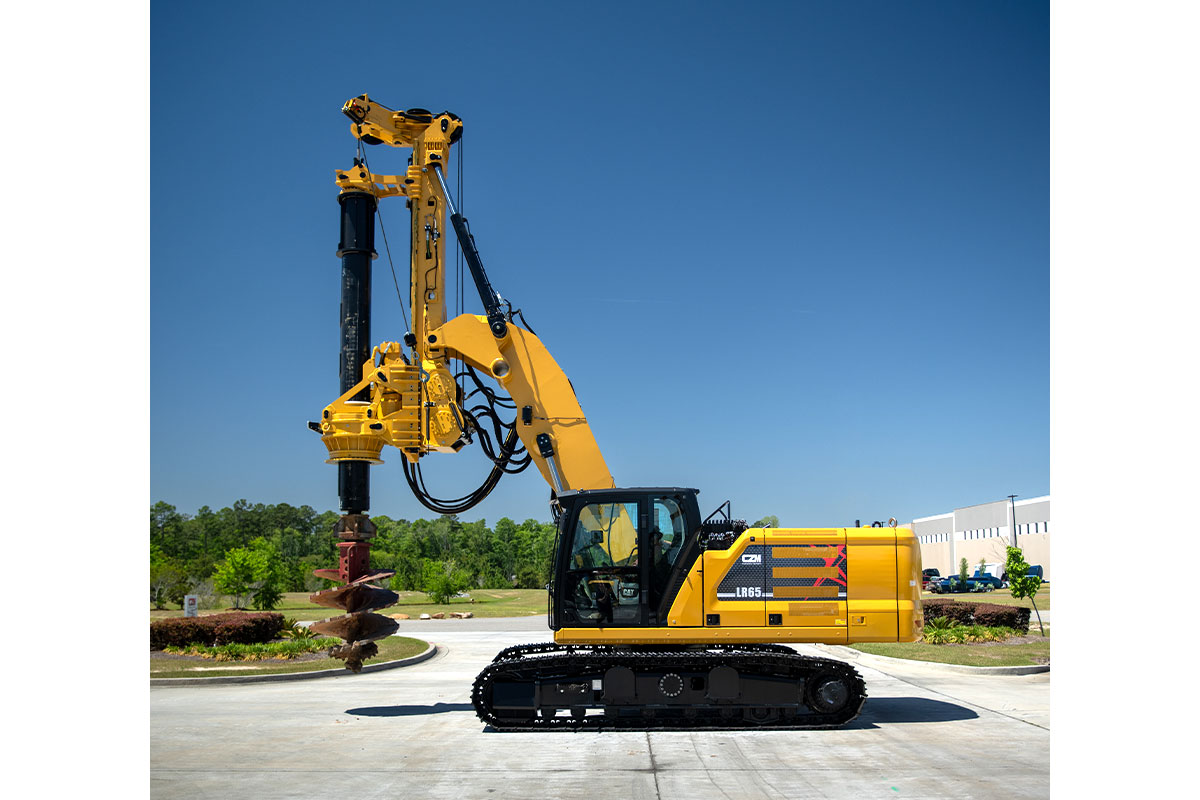

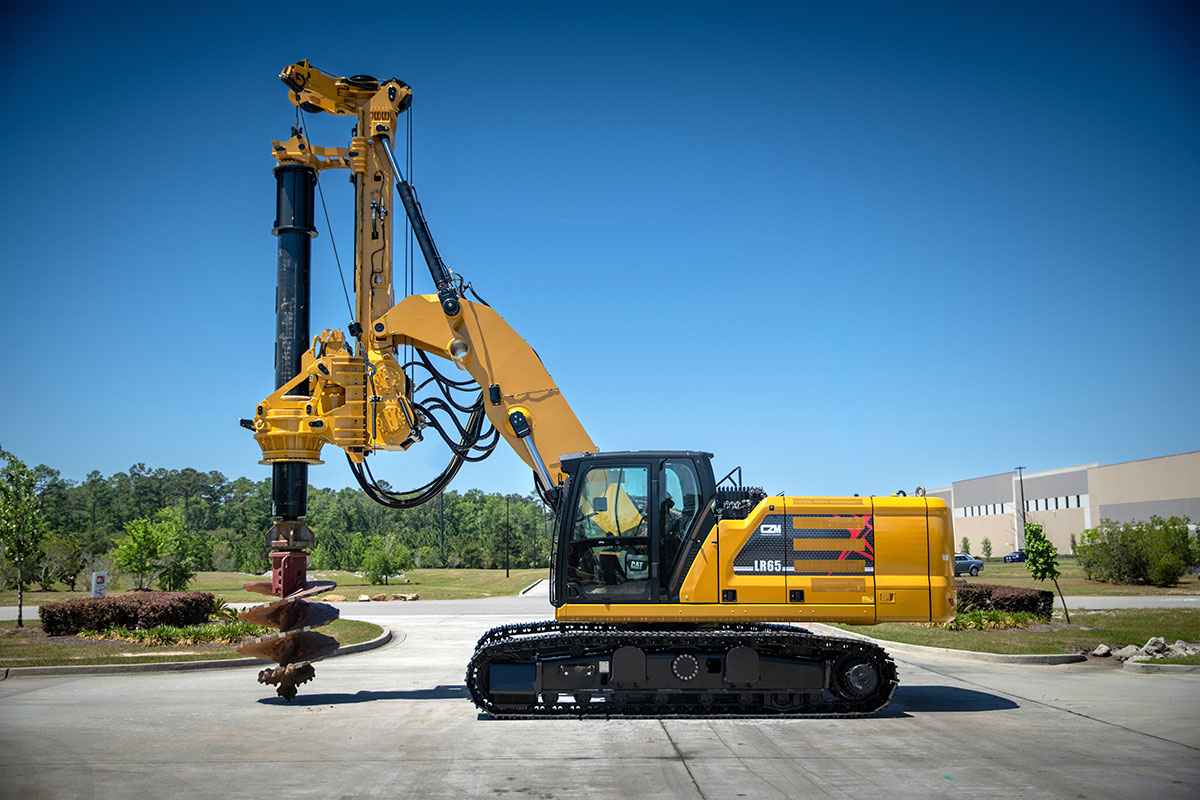

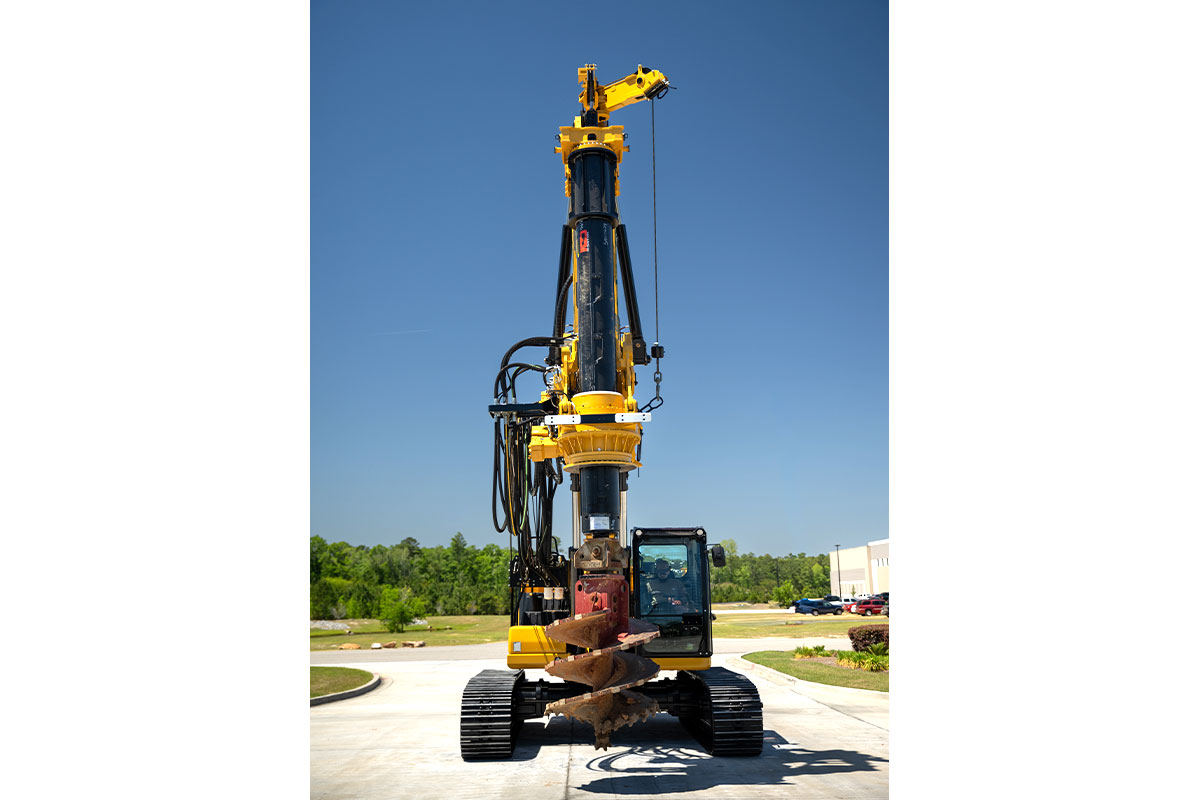

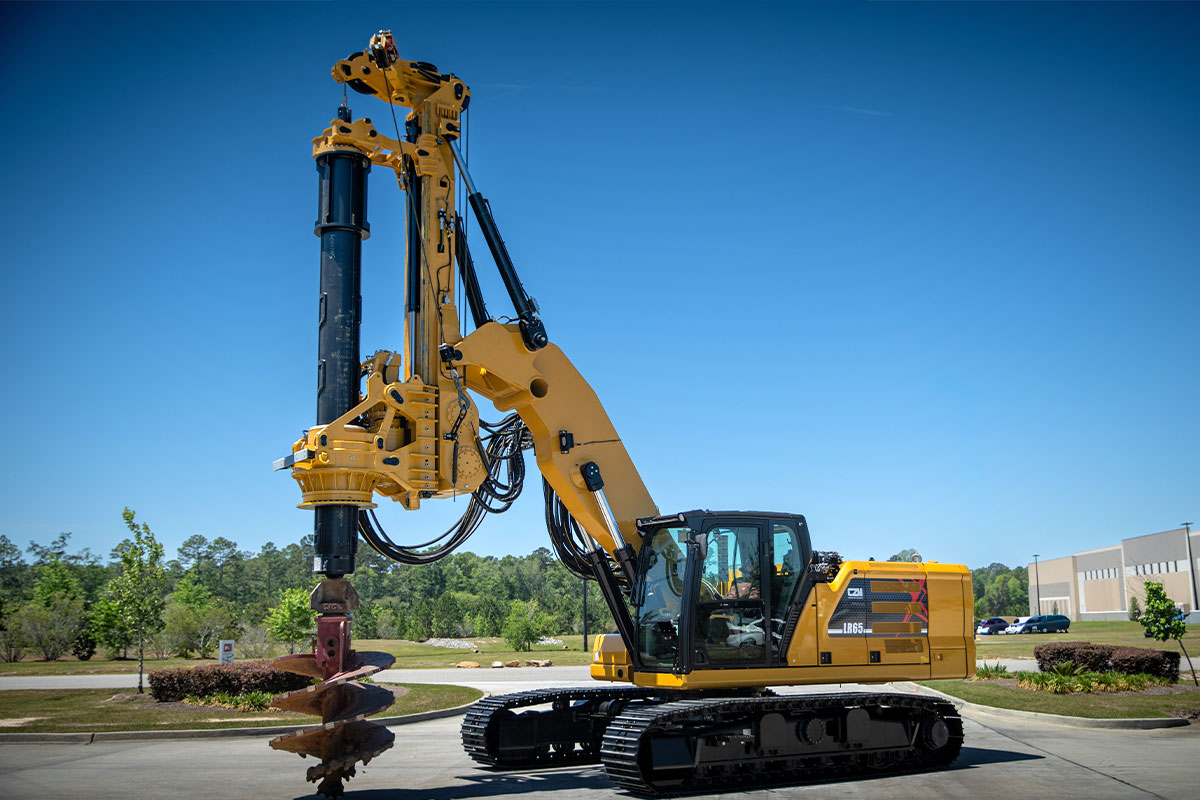

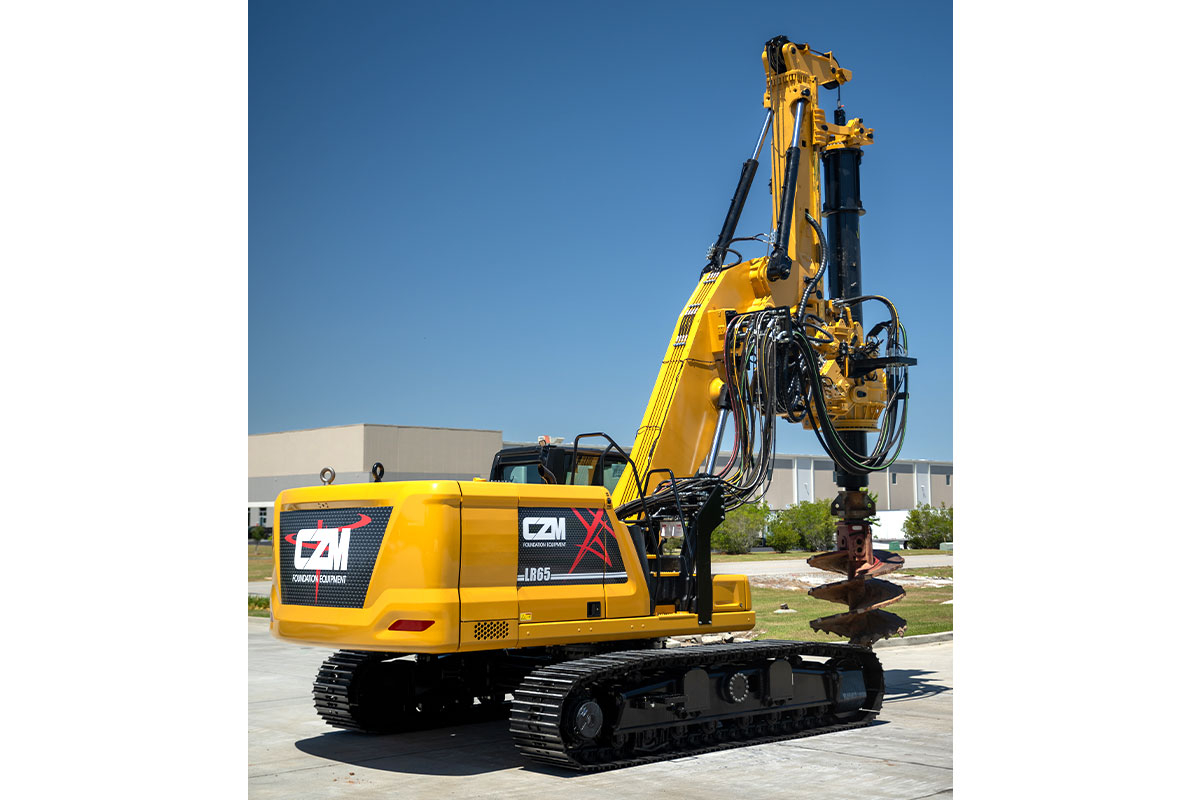

LR65

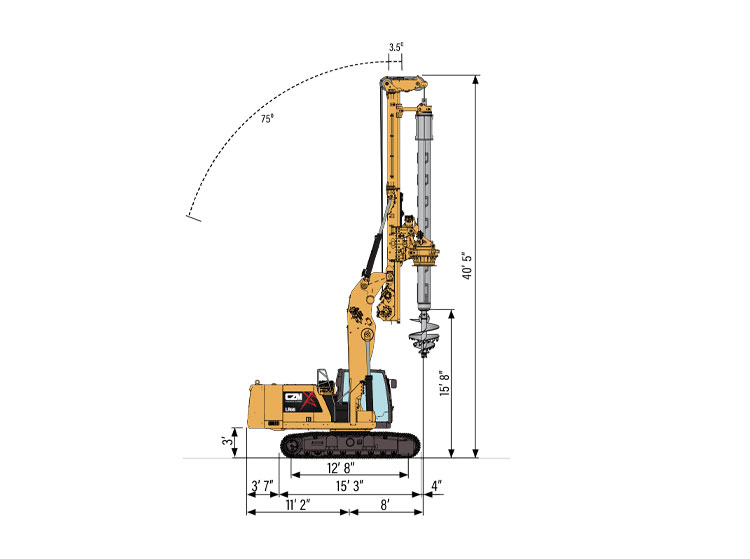

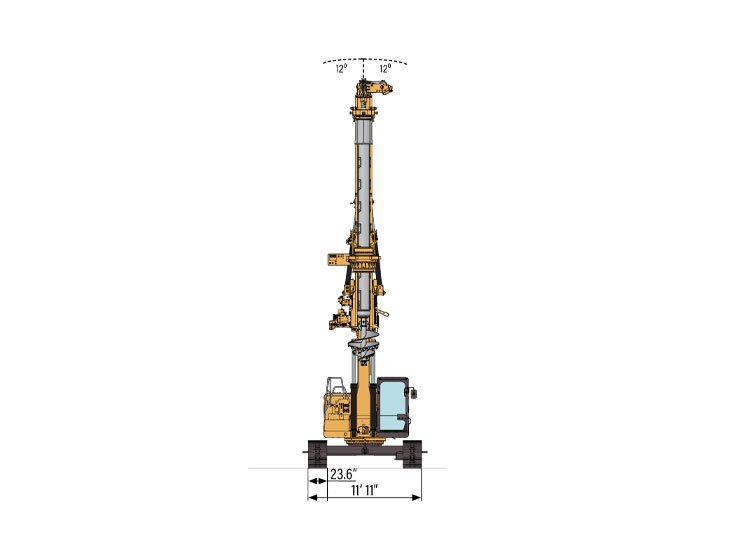

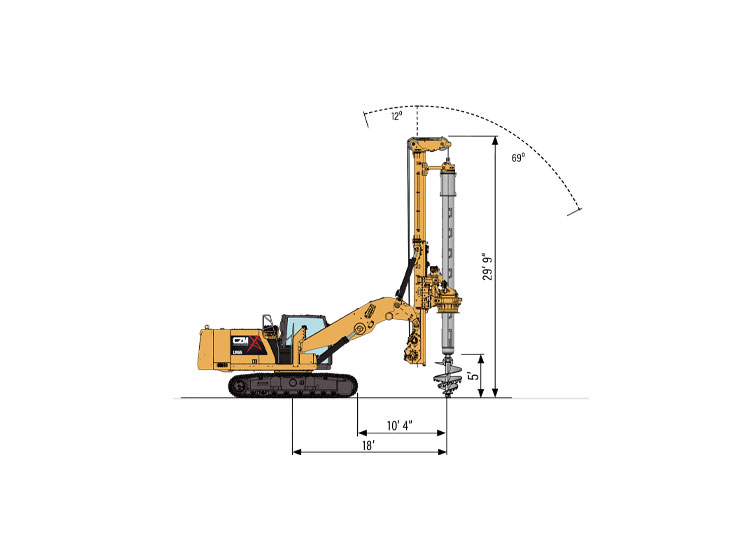

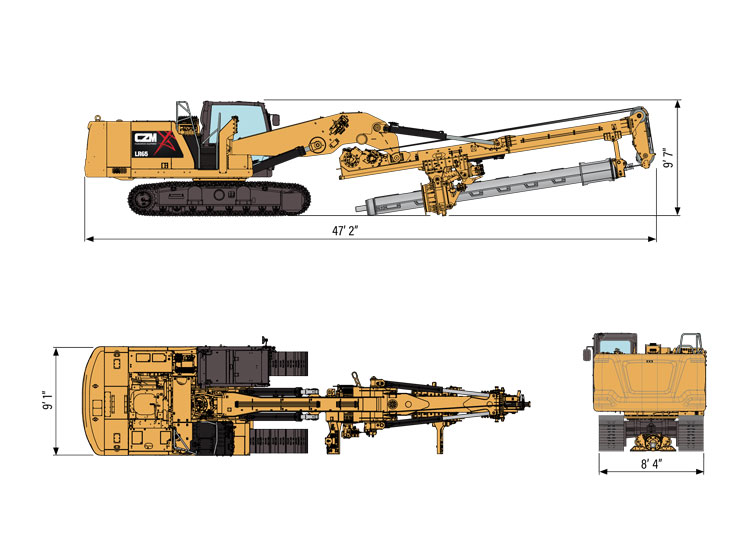

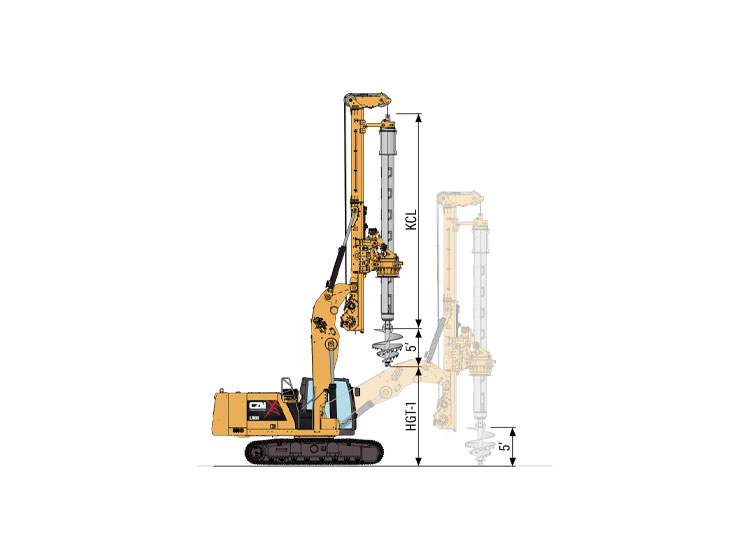

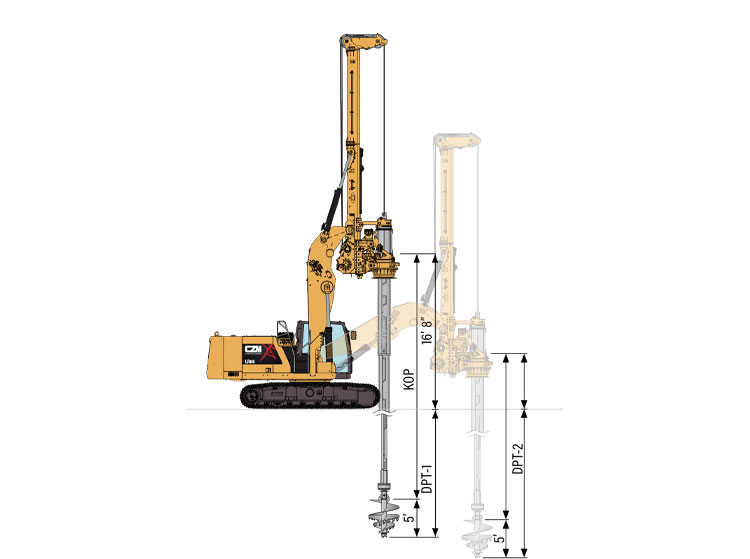

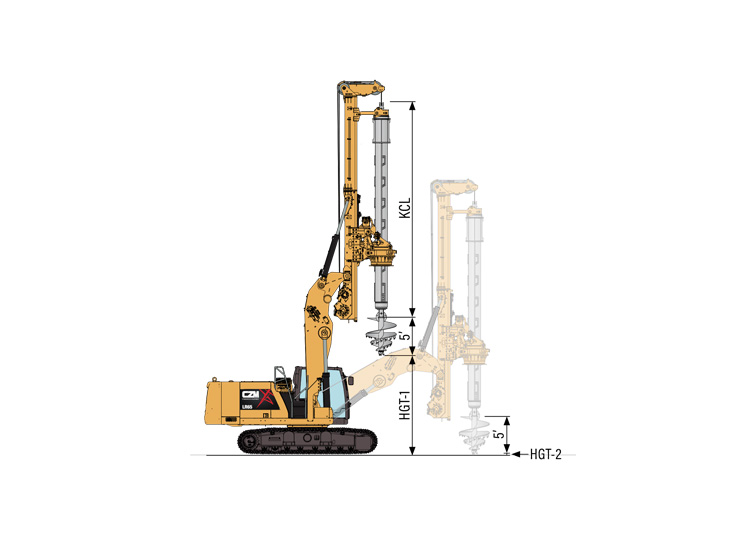

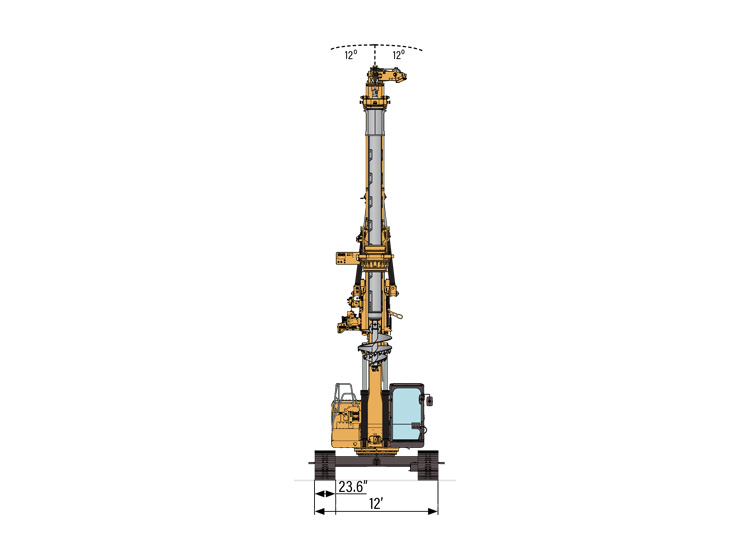

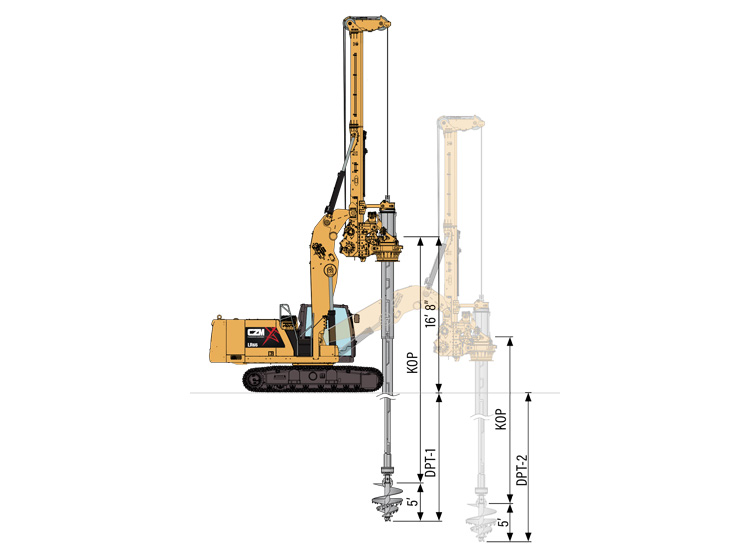

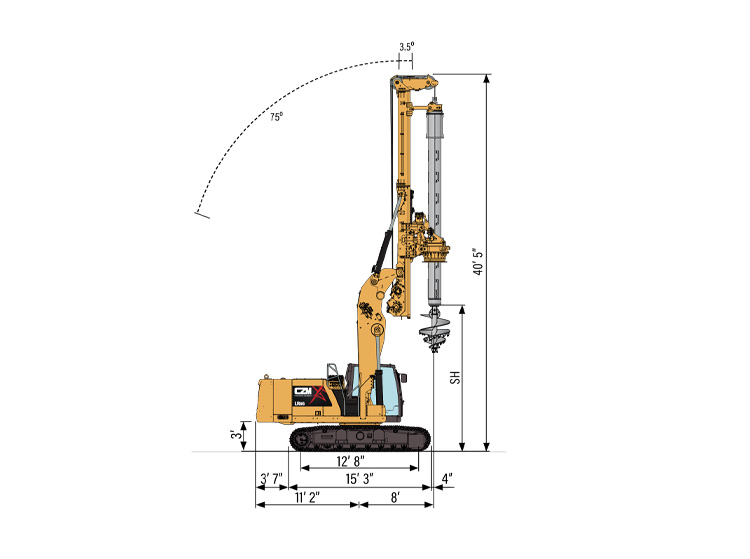

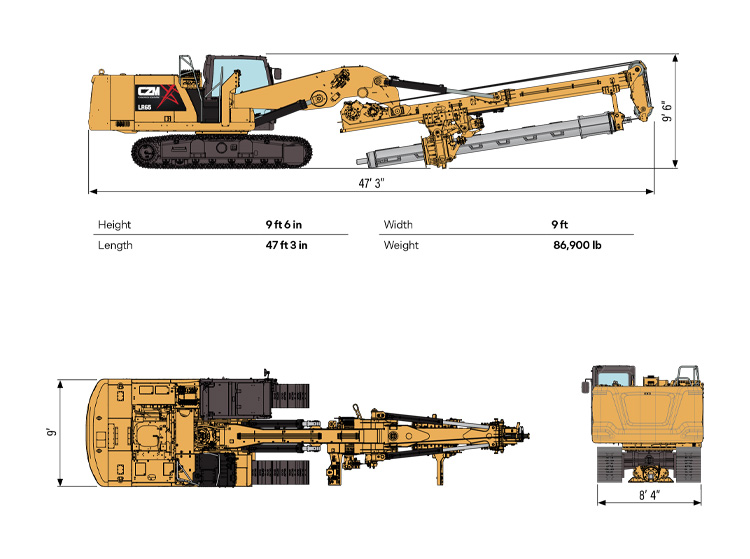

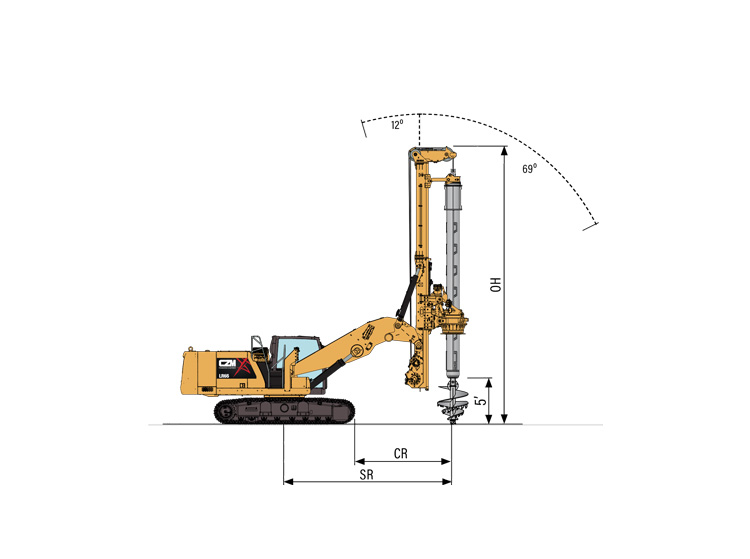

Technical Drawings
