EK160USM

Applications

Kelly Bar

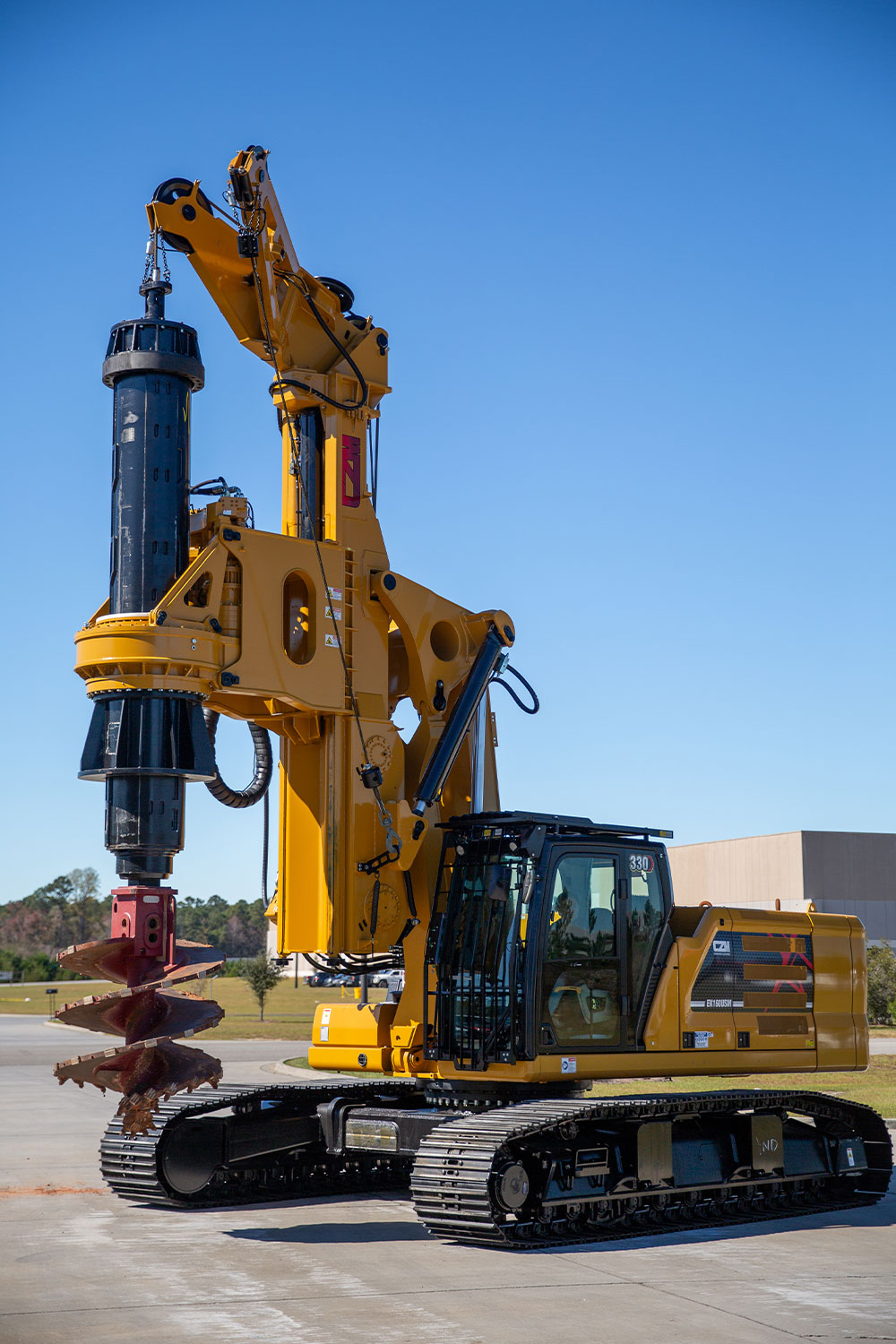

The EK160USM

TECHNICAL SPECIFICATIONS

Standard Chassis: CAT 330 Next Gen
Installed Power: 275 hp 205 kW
Maximum Torque: 167,340 ft.lbs 23,200 kg.m
Maximum Diameter: 10 ft 3,050 mm
Std. Depth Interlocking Kelly (6 El.) 60 ft 18,300 mm
Crowd Force: 55,000 lbf 25,000 kgf
Crowd Cylinder Stroke: 6 ft 6 in 1,930 mm
Main Winch Line Pull: 51,400 lbf 23,380 kgf
Minimum Transport Weight: 83,000 lb 37,650 kg
Operation Weight: 103,500 lb 46,950 kg
Learn More

About the EK160USM

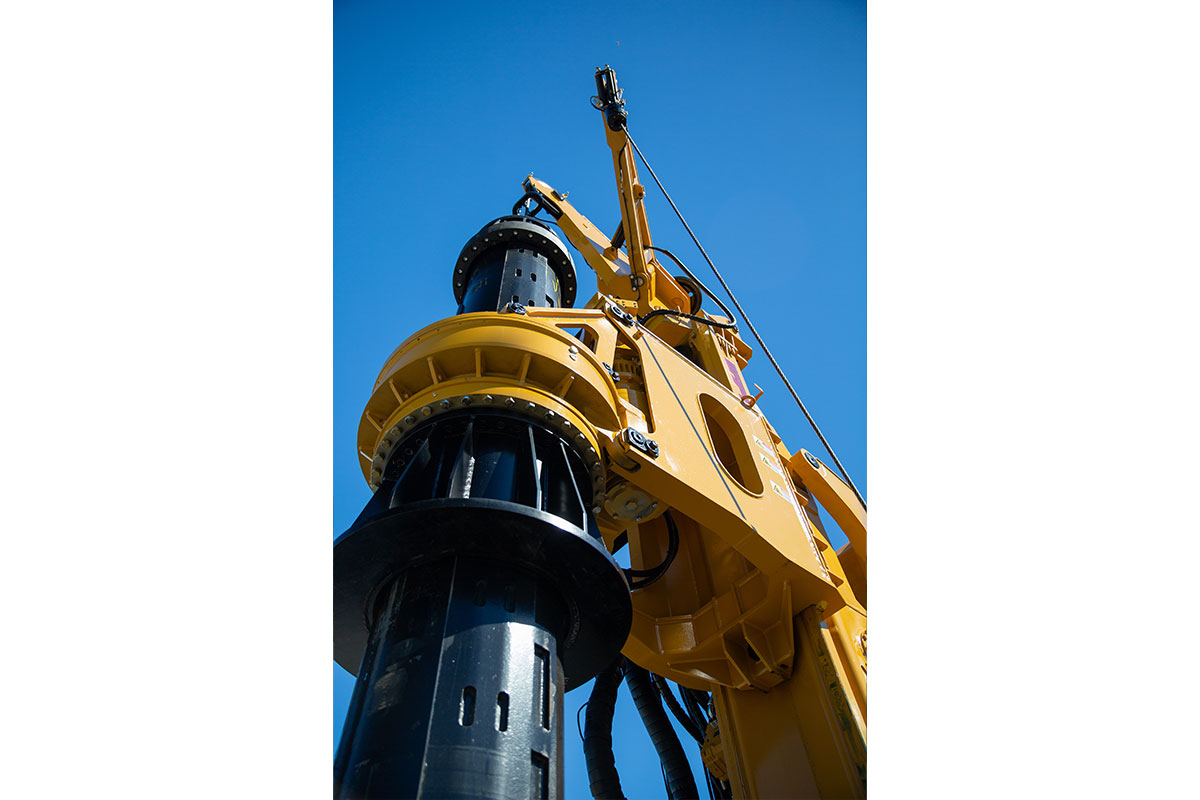

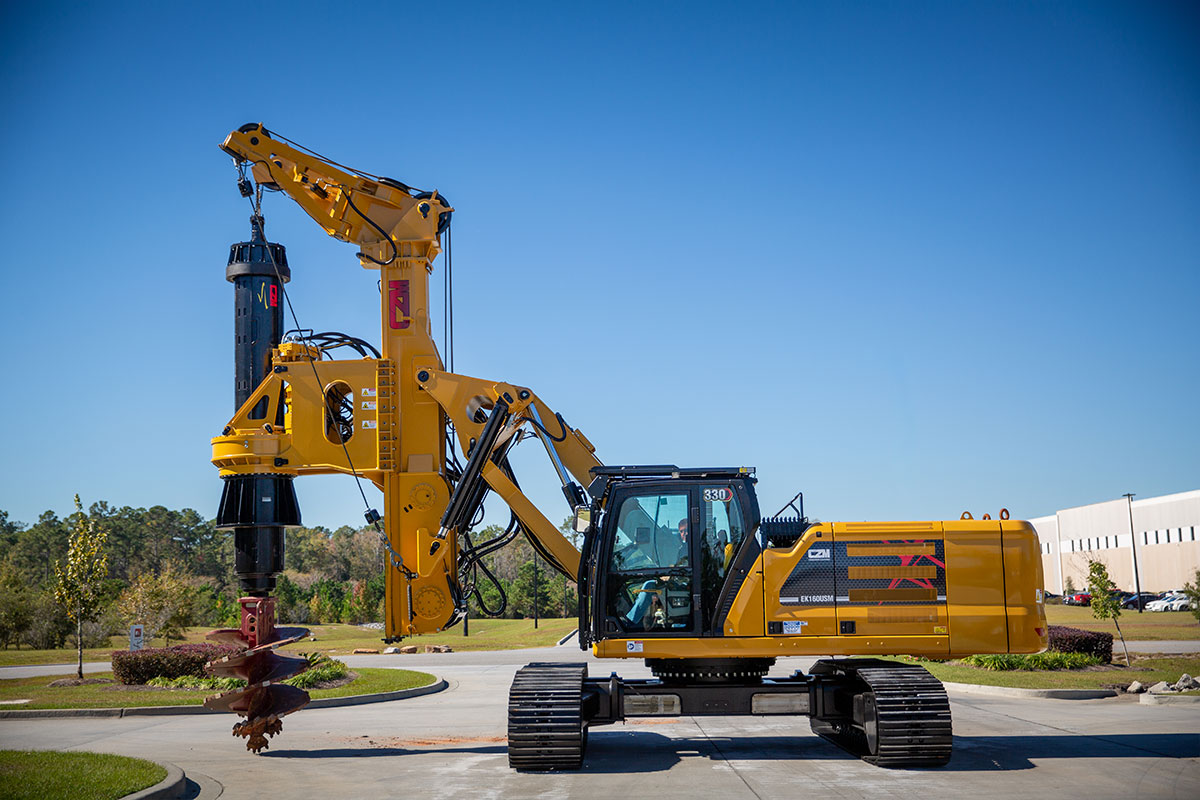

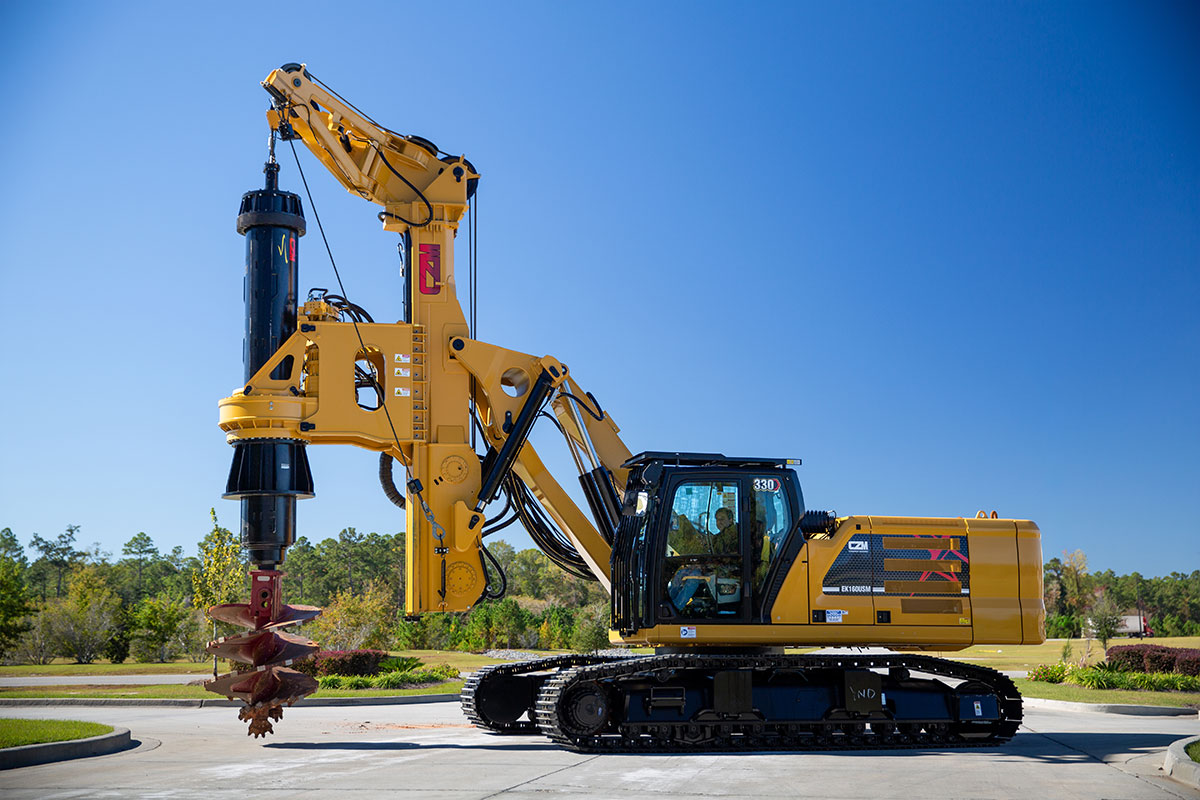

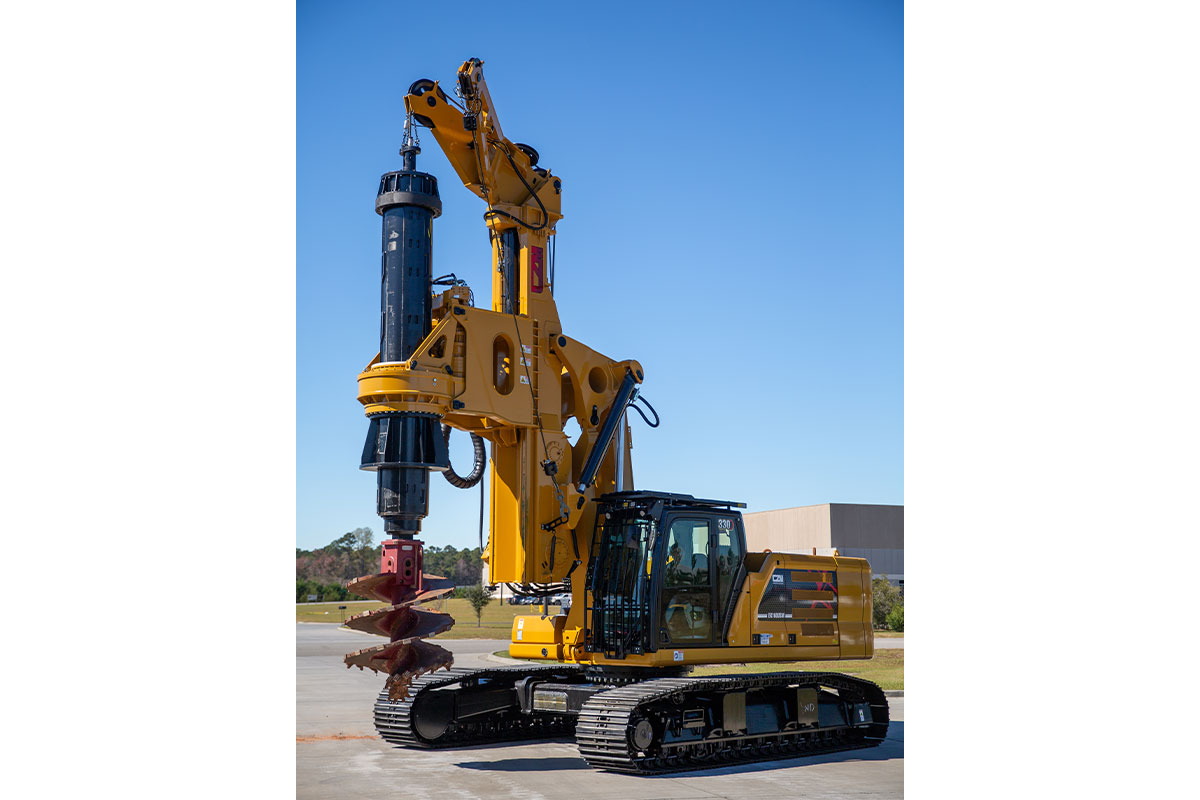

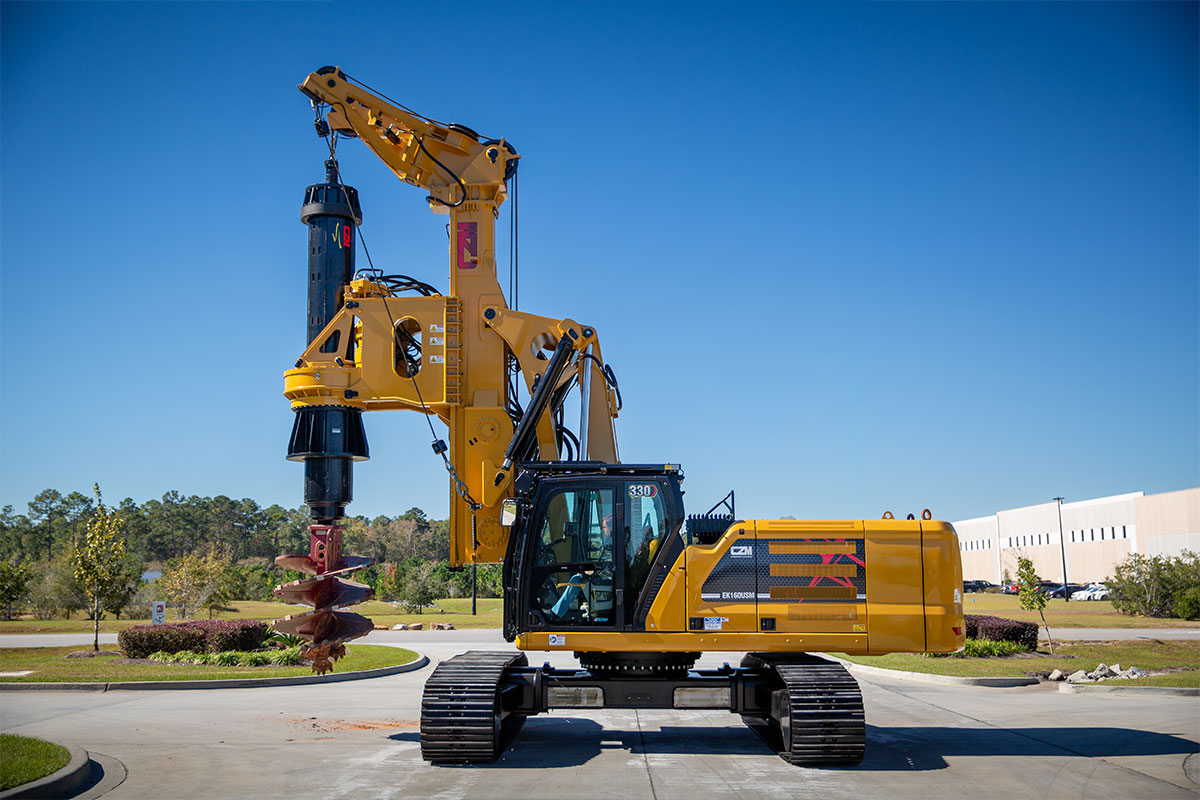

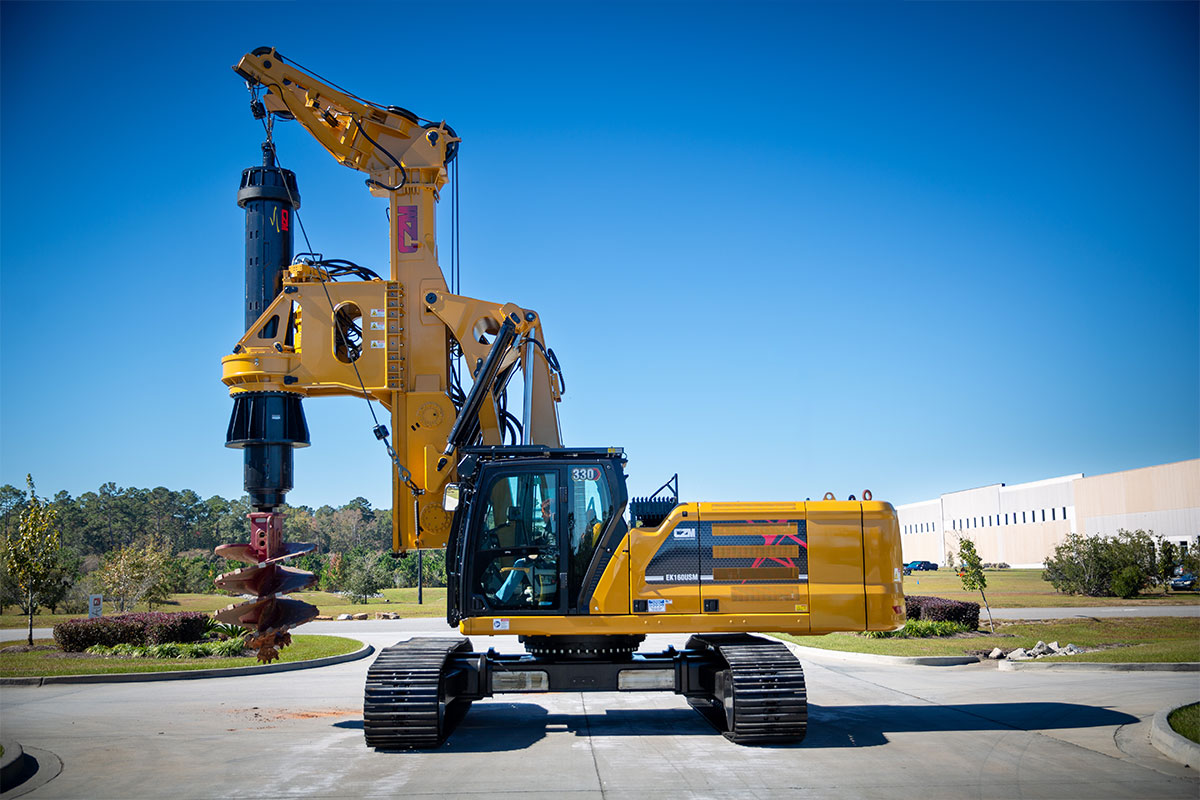

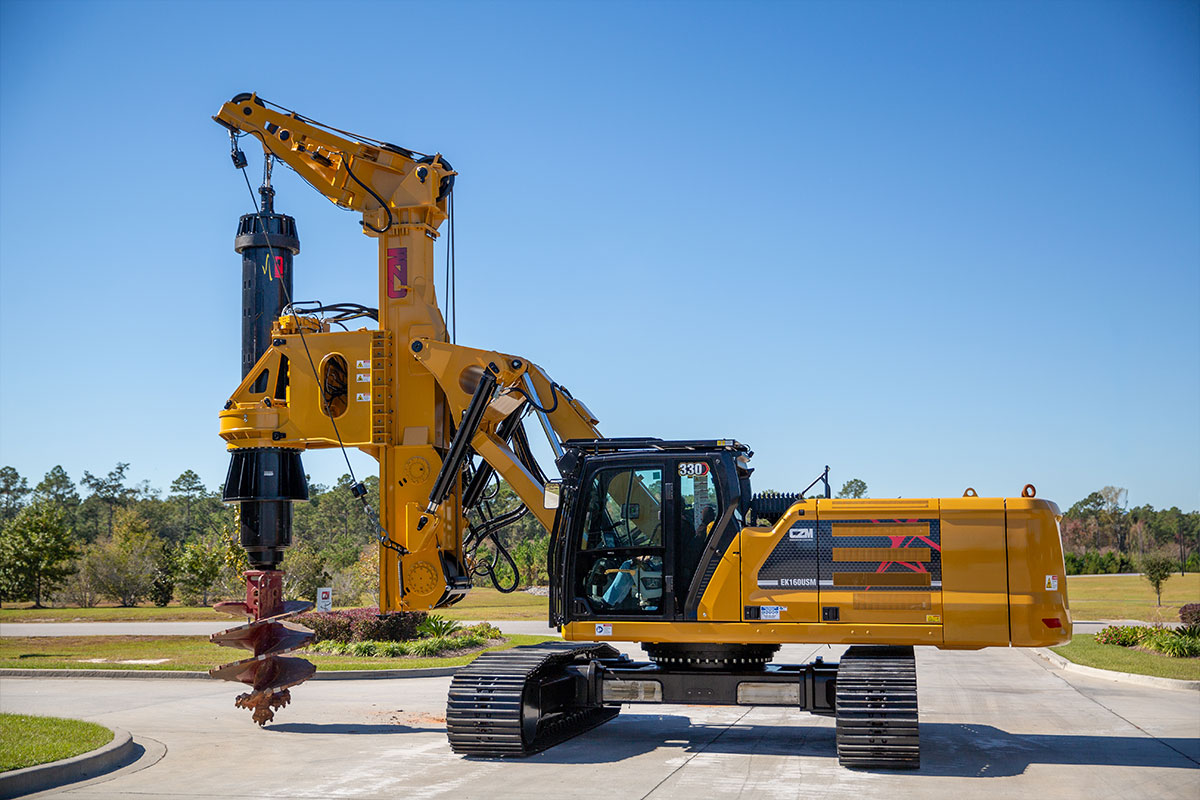

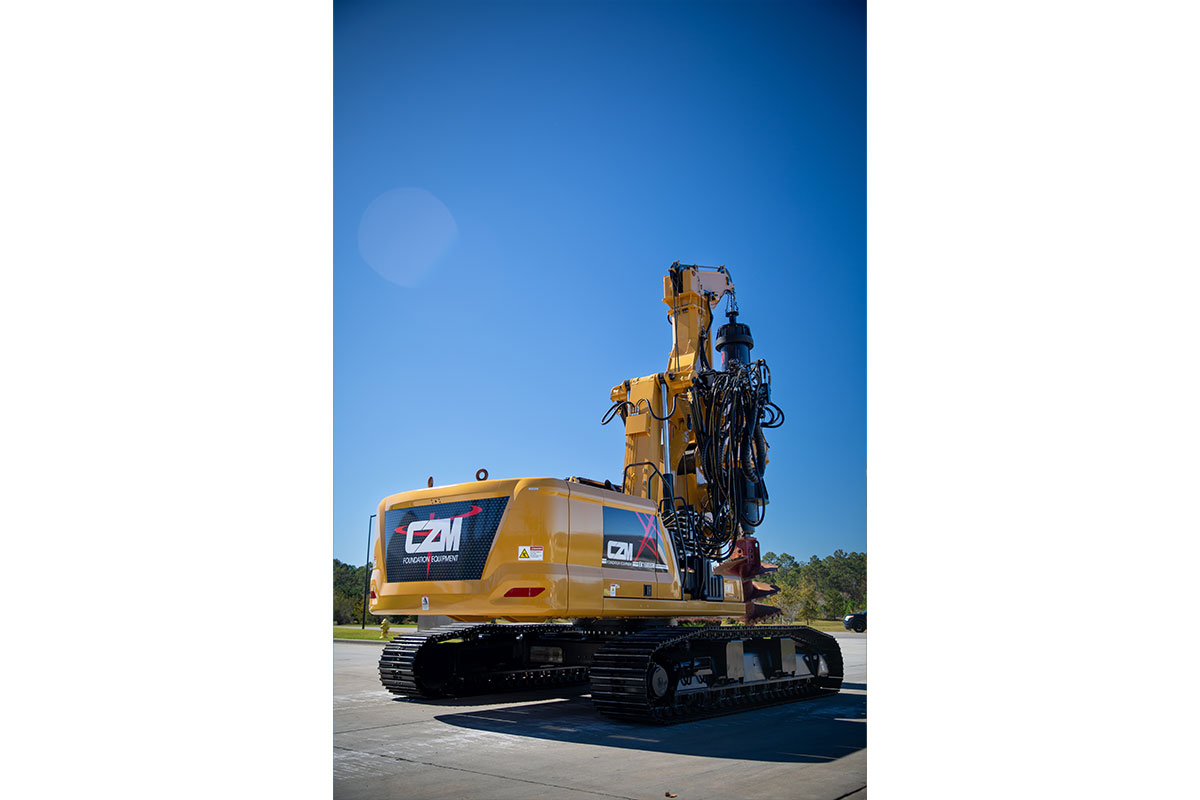

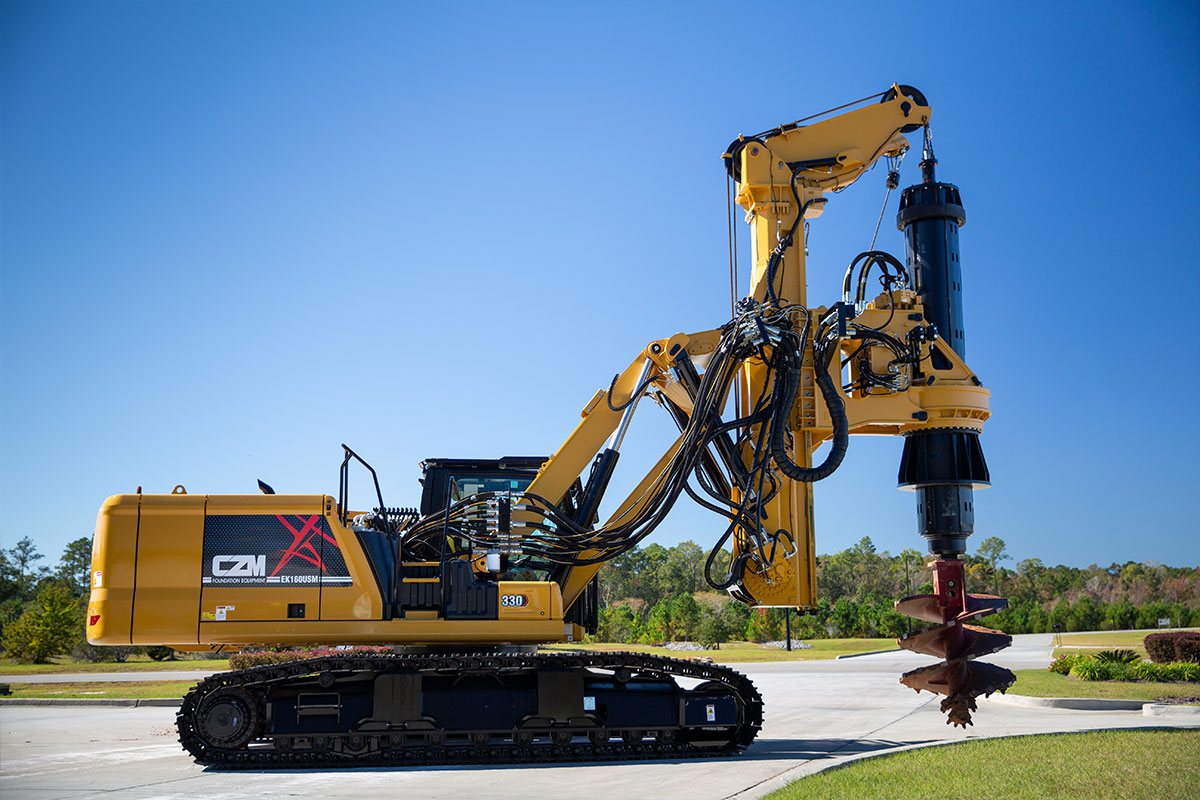

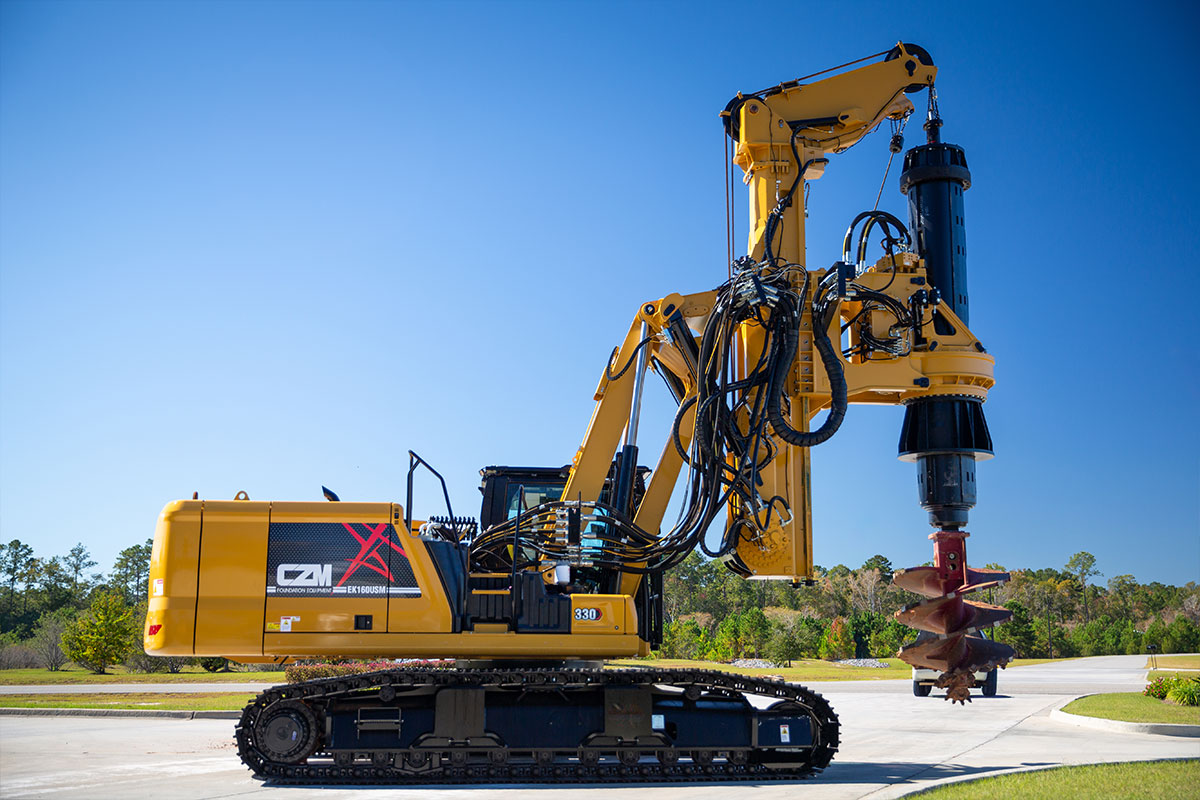

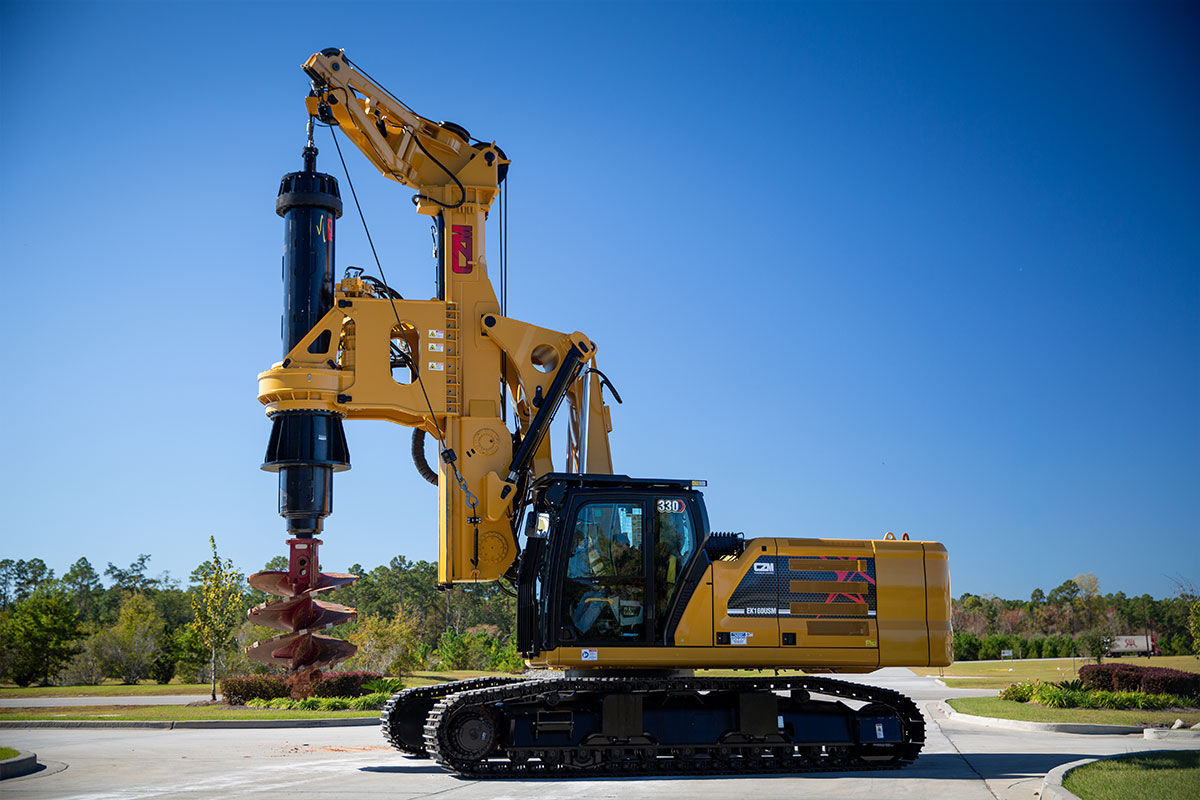

The EK160USM is a specialized machine designed by CZM for the foundations of Transmission Lines. It has a special parallelogram, where the tilt cylinders face down, allowing it work under very low overhead (20ft). The rotary has a large inner passage which allows the use of a robust 6 element kelly bar, drilling down to 65ft at full torque. It can be equipped with a self erecting counter weight for easy set up and brake down.
Base:
  • The new Cat 330 Next Gen powered by a fuel efficient Tier 4 Final C7.1 ACERT engine.
  • Equipped with CAT Vision Link that allows management to monitor machine operations and maintenance data online.
Undercarriage:
  • Caterpillar variable undercarriage VH4400/4300/700. Reinforced frame H style variable undercarriage.
Mast:
  • Reinforced mast, with high resistance steel Weldox 700.
Main Winch:
  • Special groove for better cable winding and longer cable life.
  • Press-roller included.
  • 2 gears allows for both high speed and high pulling force.
  • Automatic gear shifting, for seamless operation, high production.
  • Automatic down the hole winch stop.
  • Free willing winch during crowd operation.
  • Hydraulic and mechanic brake.
  • Hydraulic measurement of pulling force displayed in the cabin.

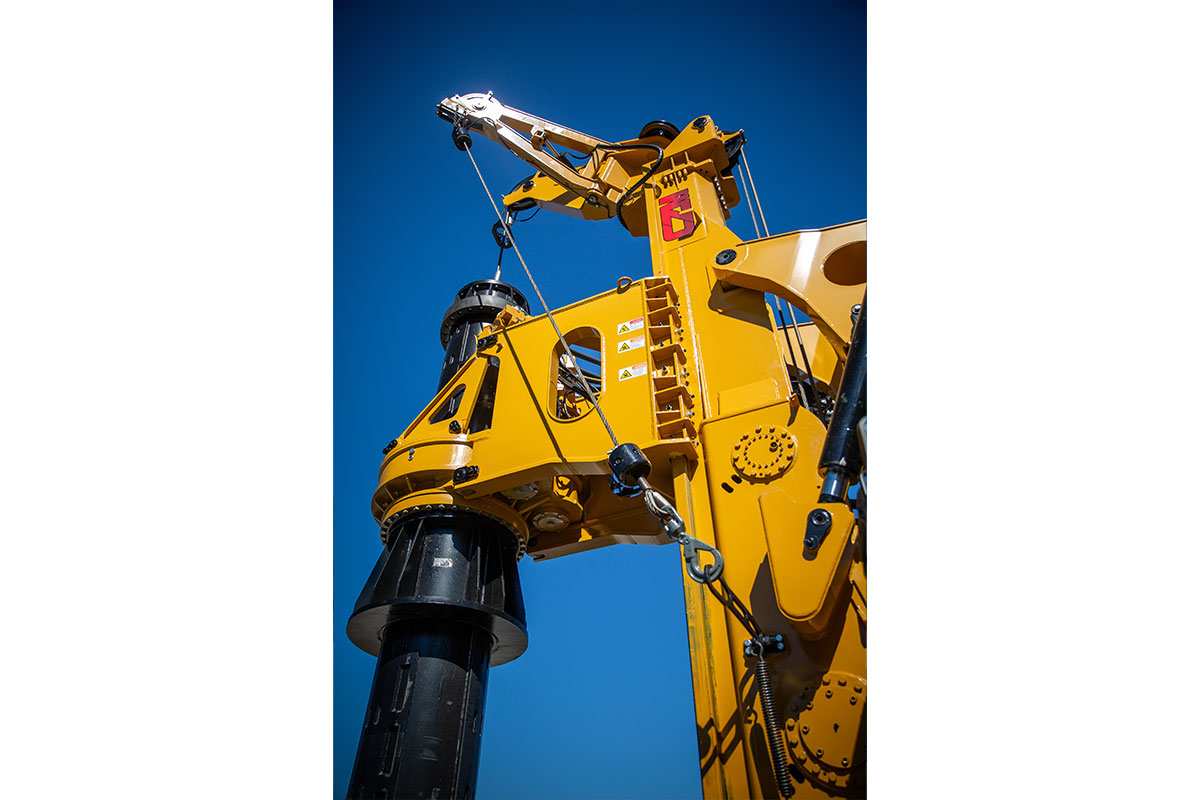

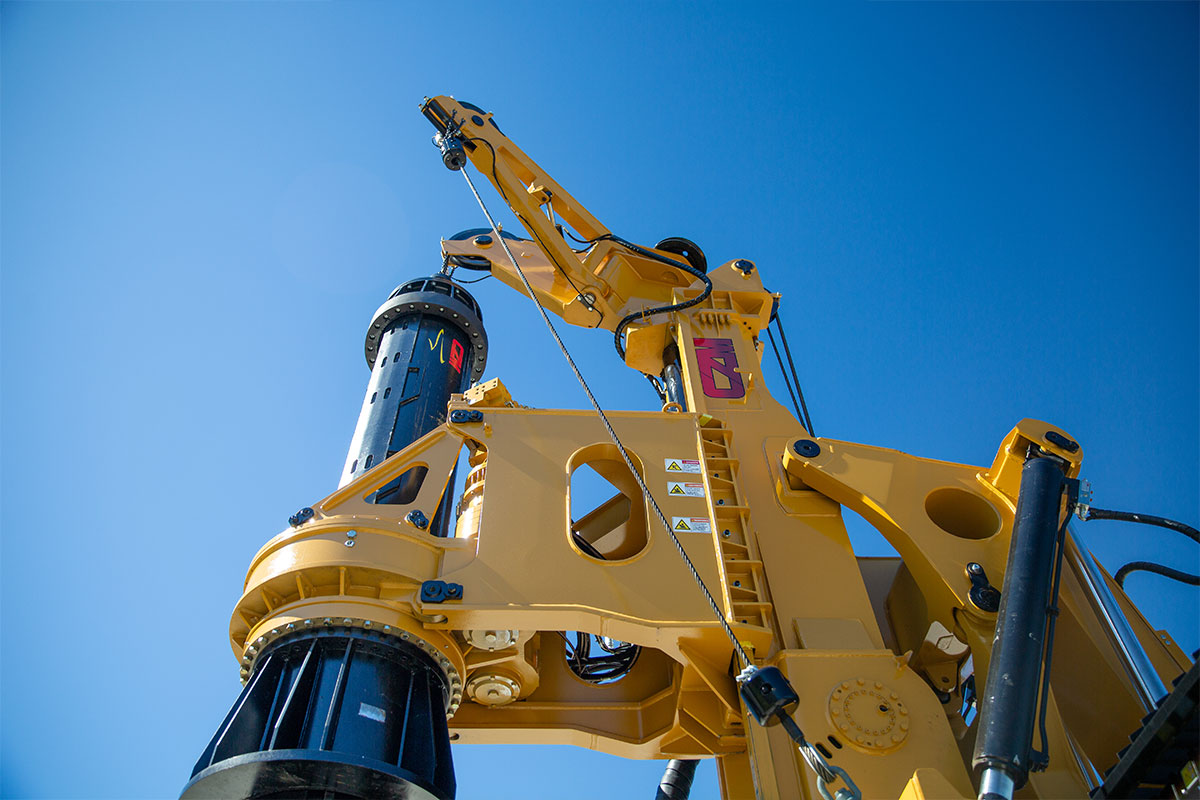

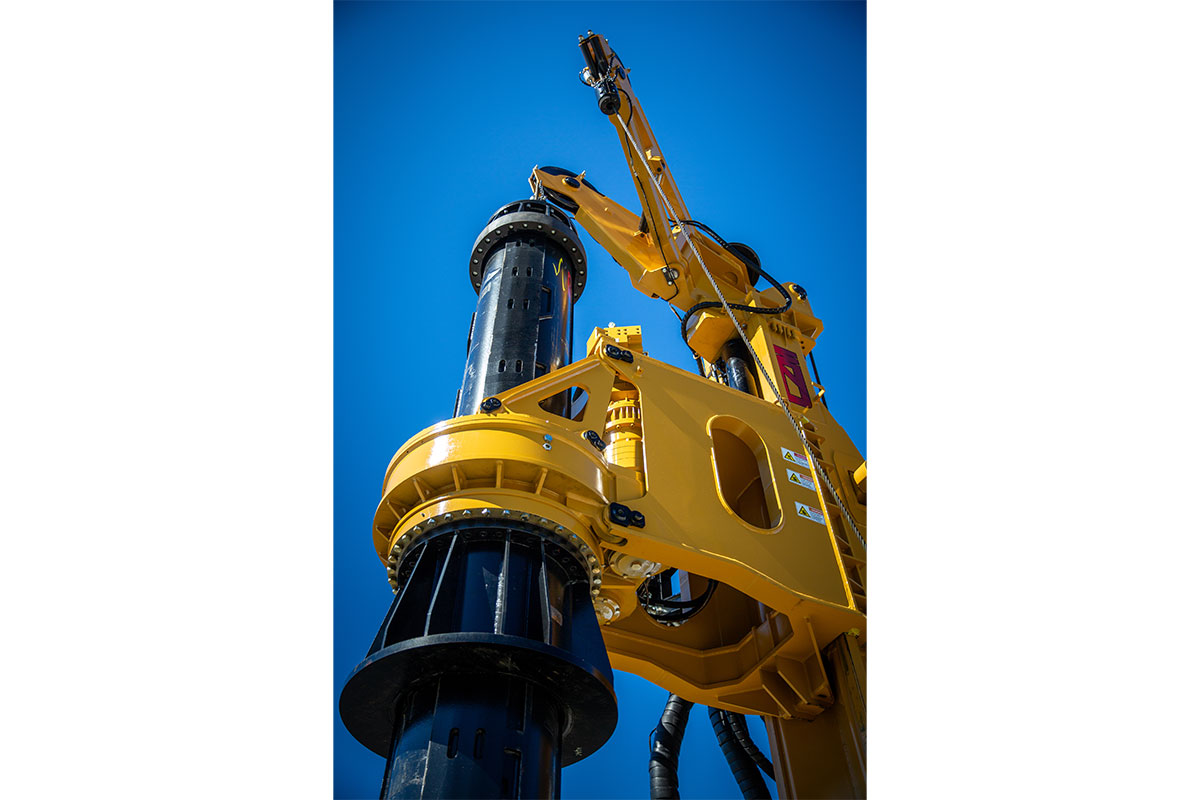

Rotary:
  • Robust design, with 2 slewing bearings on top and bottom, robust pinion and main gear.
  • 2 groups of Hydraulic Motor / Planetary Gears for high torque and long life.
  • Anti-cavitation, anti-shock and cooling system for longer hydraulic motor life.
  • Power-shift for High spin-off speed (120rpm) for quick discharge of soil.
  • 3 operation speeds and 3 spinoff speeds. For high torque and high speeds.
  • Automatic gear shifting, for seamless operation, high production.
  • Exchangeable keys, bolted. No need to rebuild keys by welding inside the rotary.
  • Hydraulic measurement of torque displayed in the cabin for the operator.
Cab:
  • AM/FM Radio, Air conditioning/Heating
  • ROPS cab & Top protection.
  • LCD monitor for Engine and Hydraulics computer, with diagnostic system.
  • CZM Canbus System for Drilling Monitoring with auto functions.
VIDEO TOUR

EK160USM

EK160SM

Technical Drawings

EK160USM

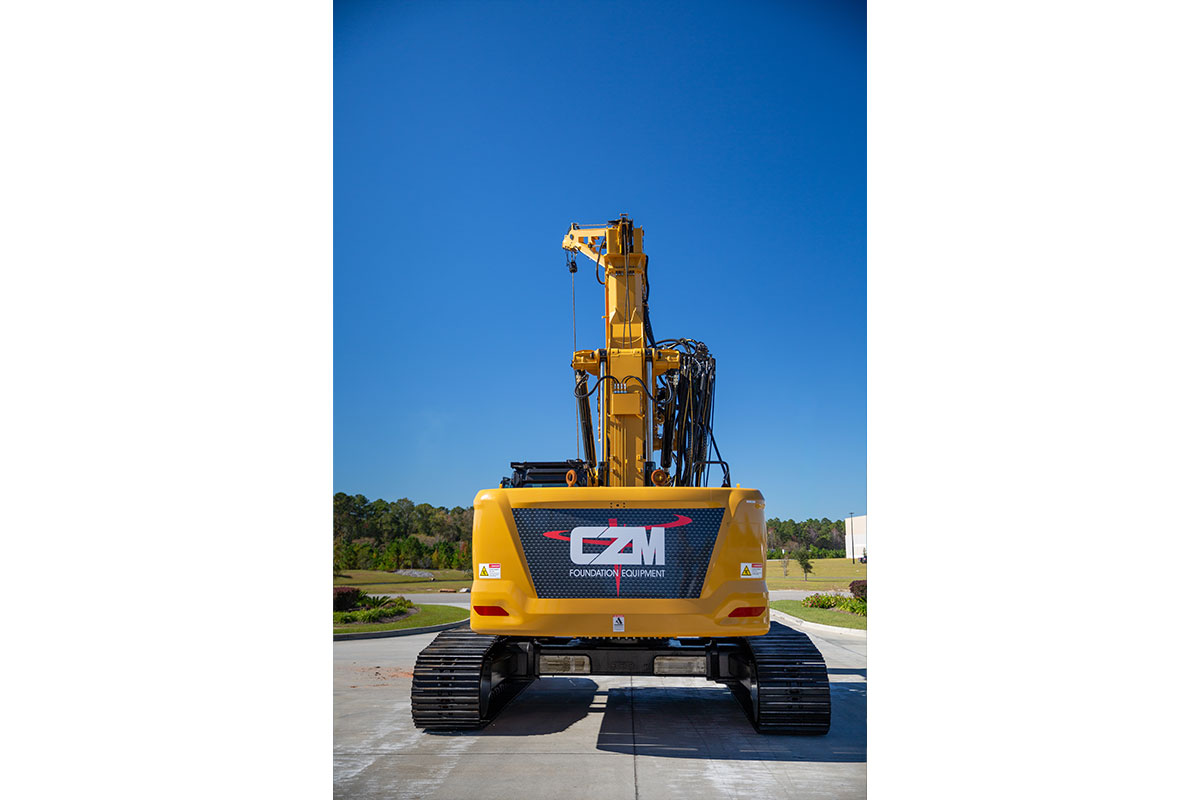

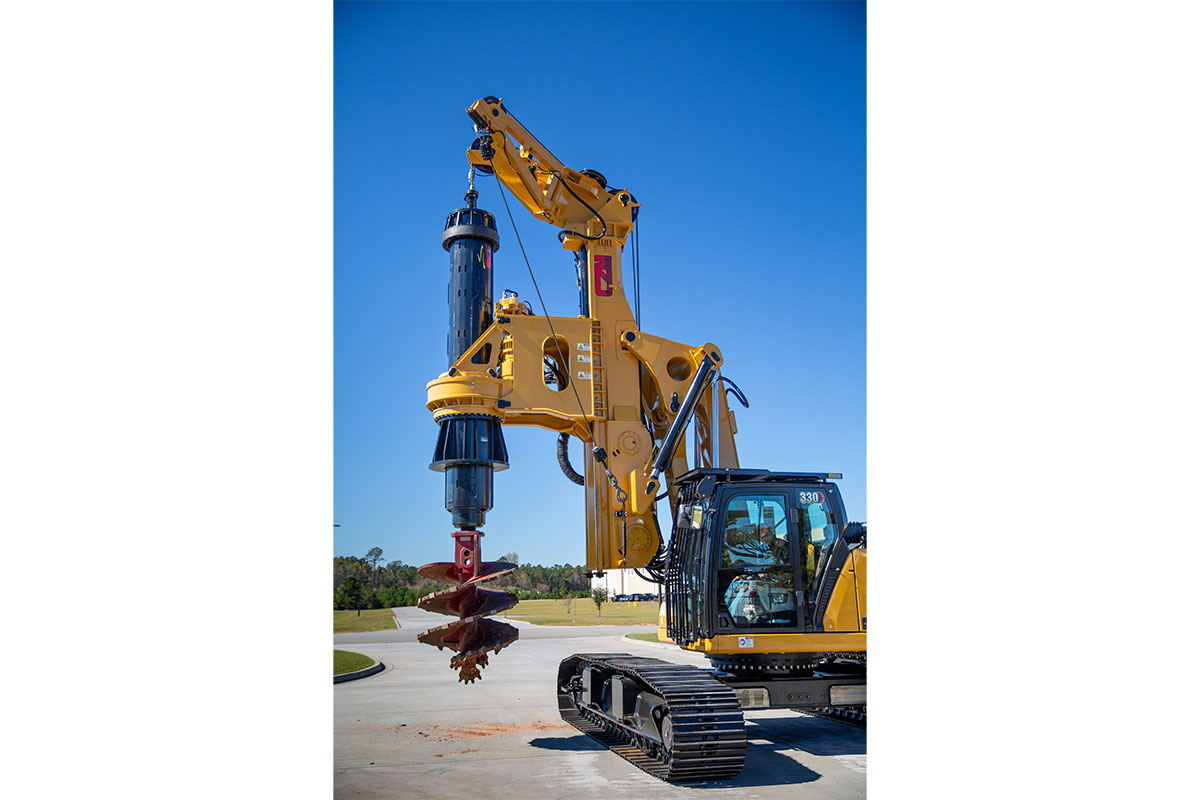

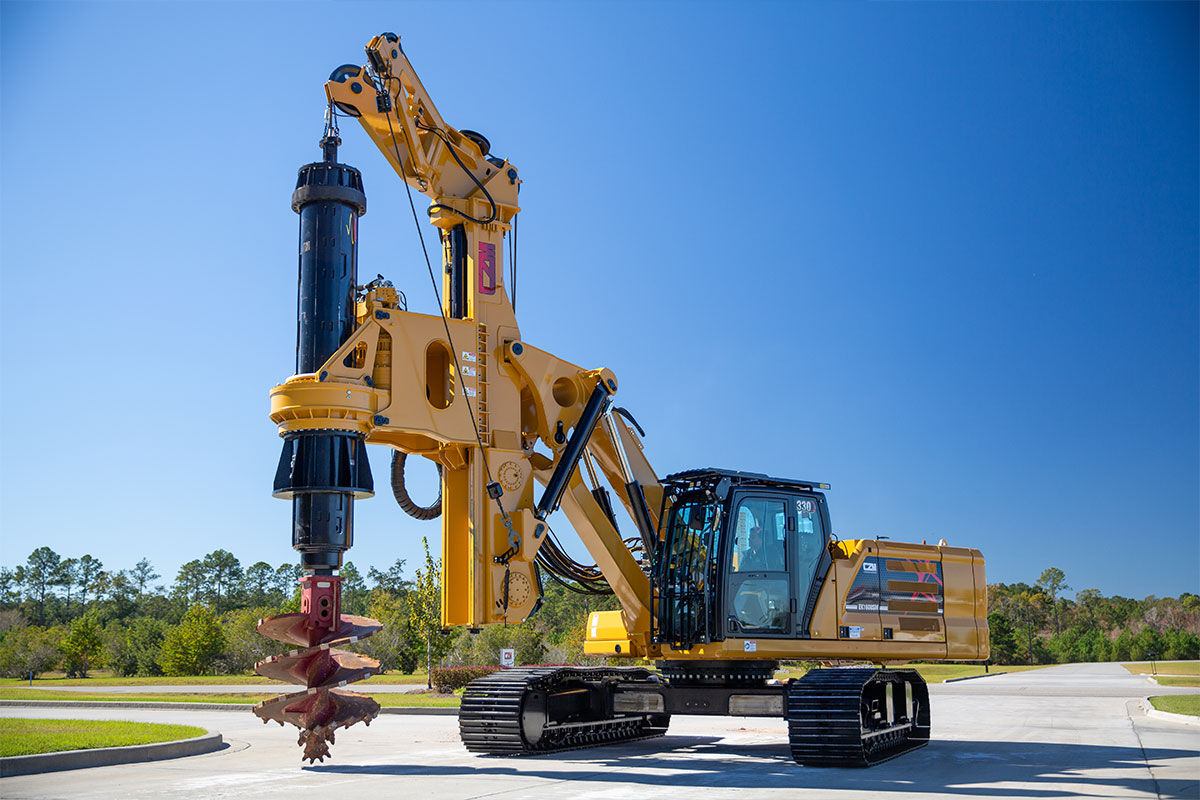

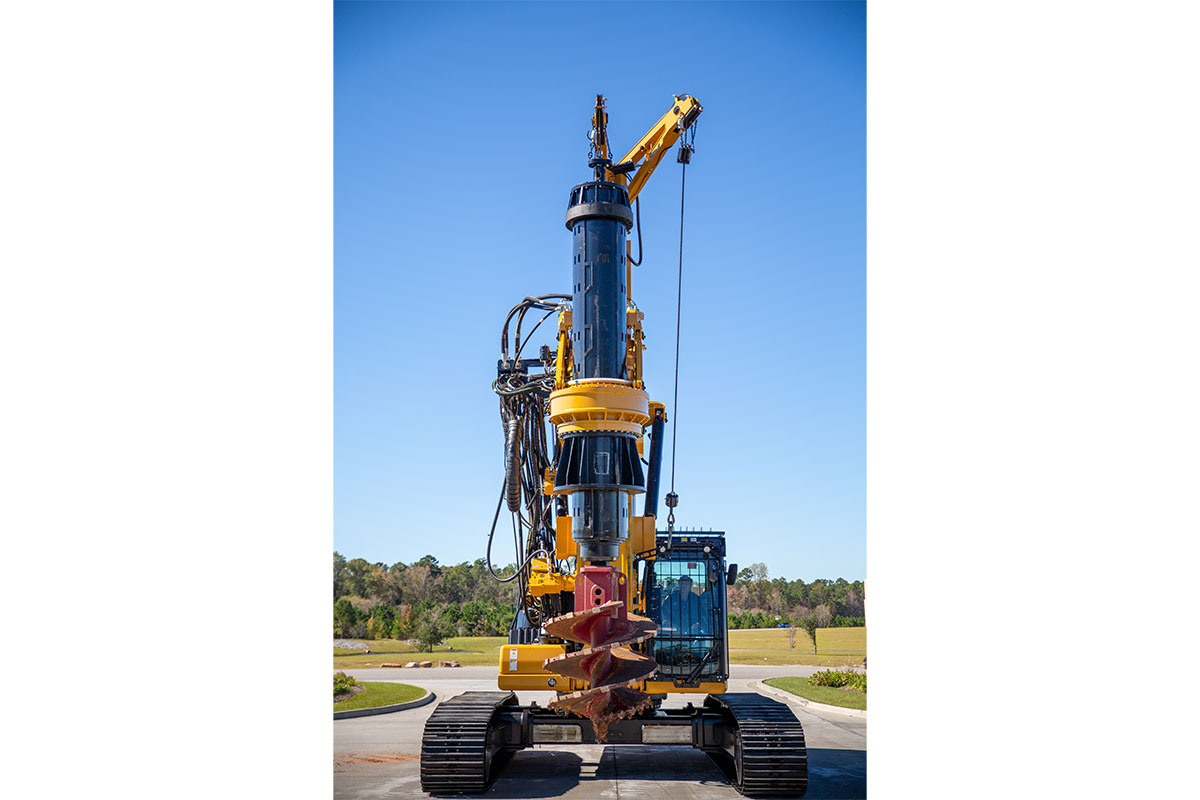

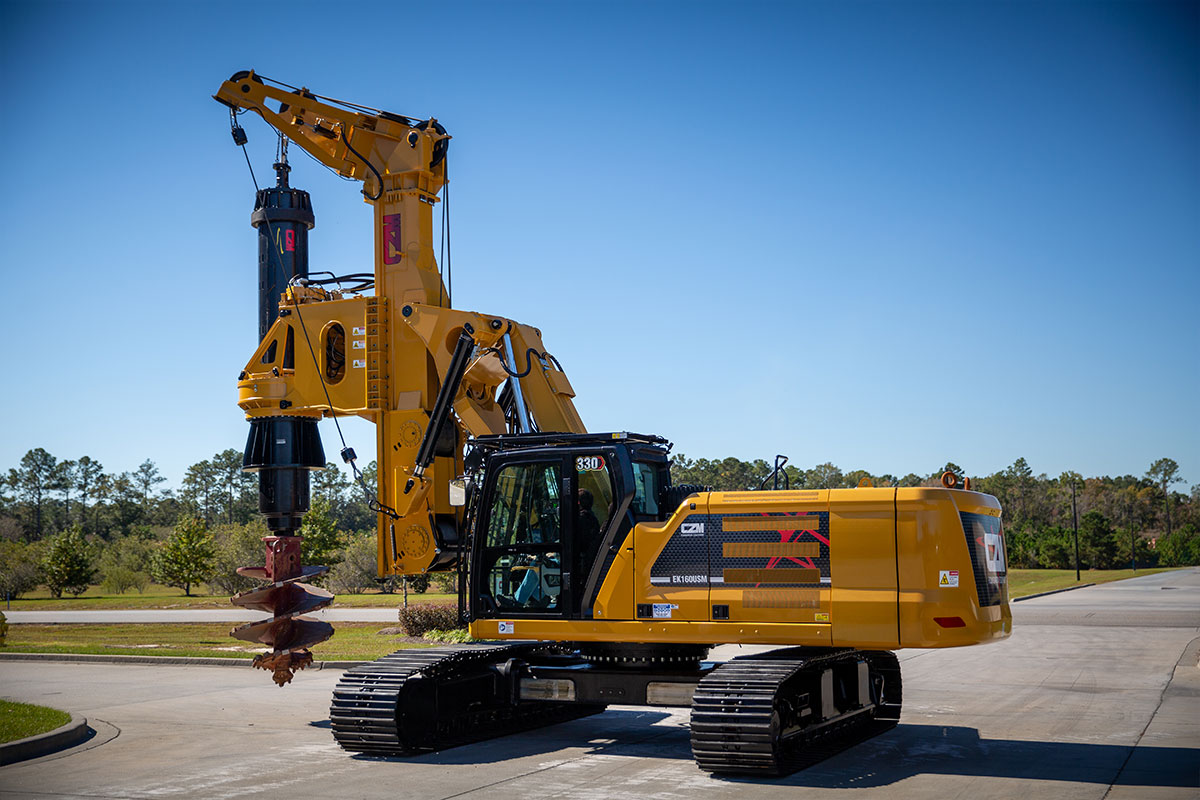

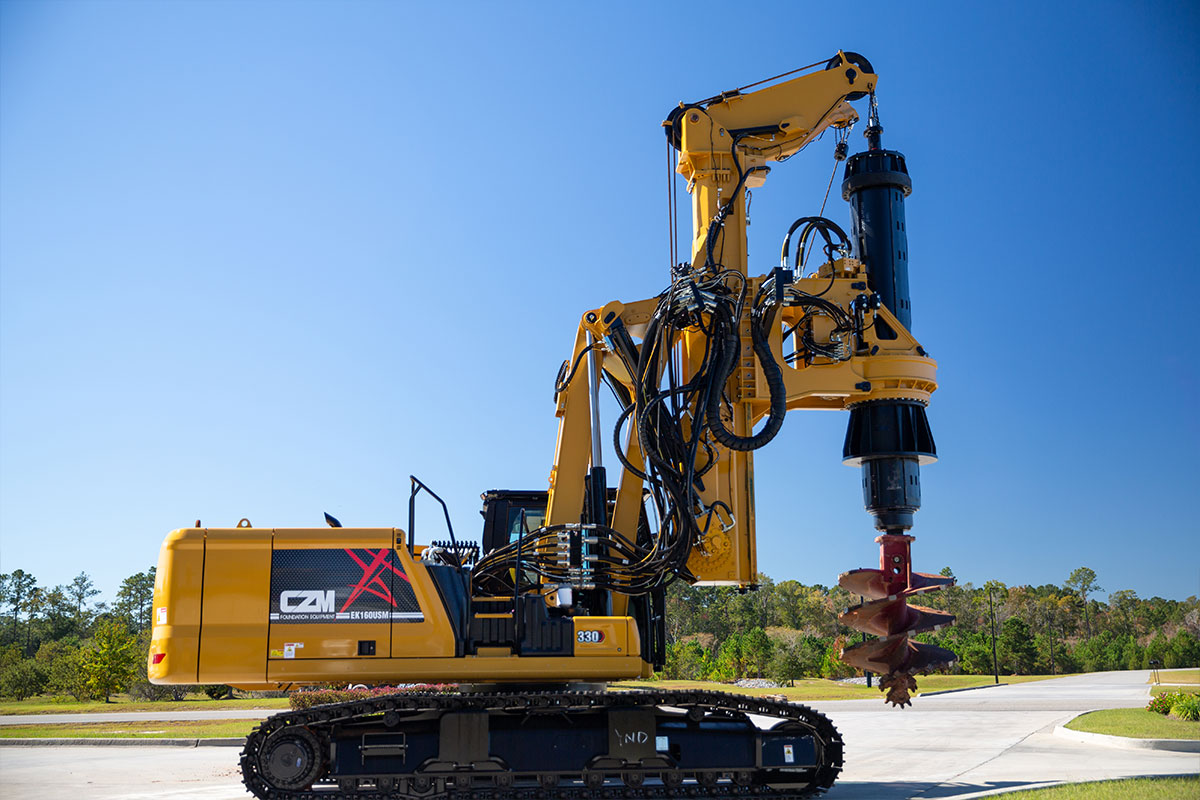

Photo Gallery
